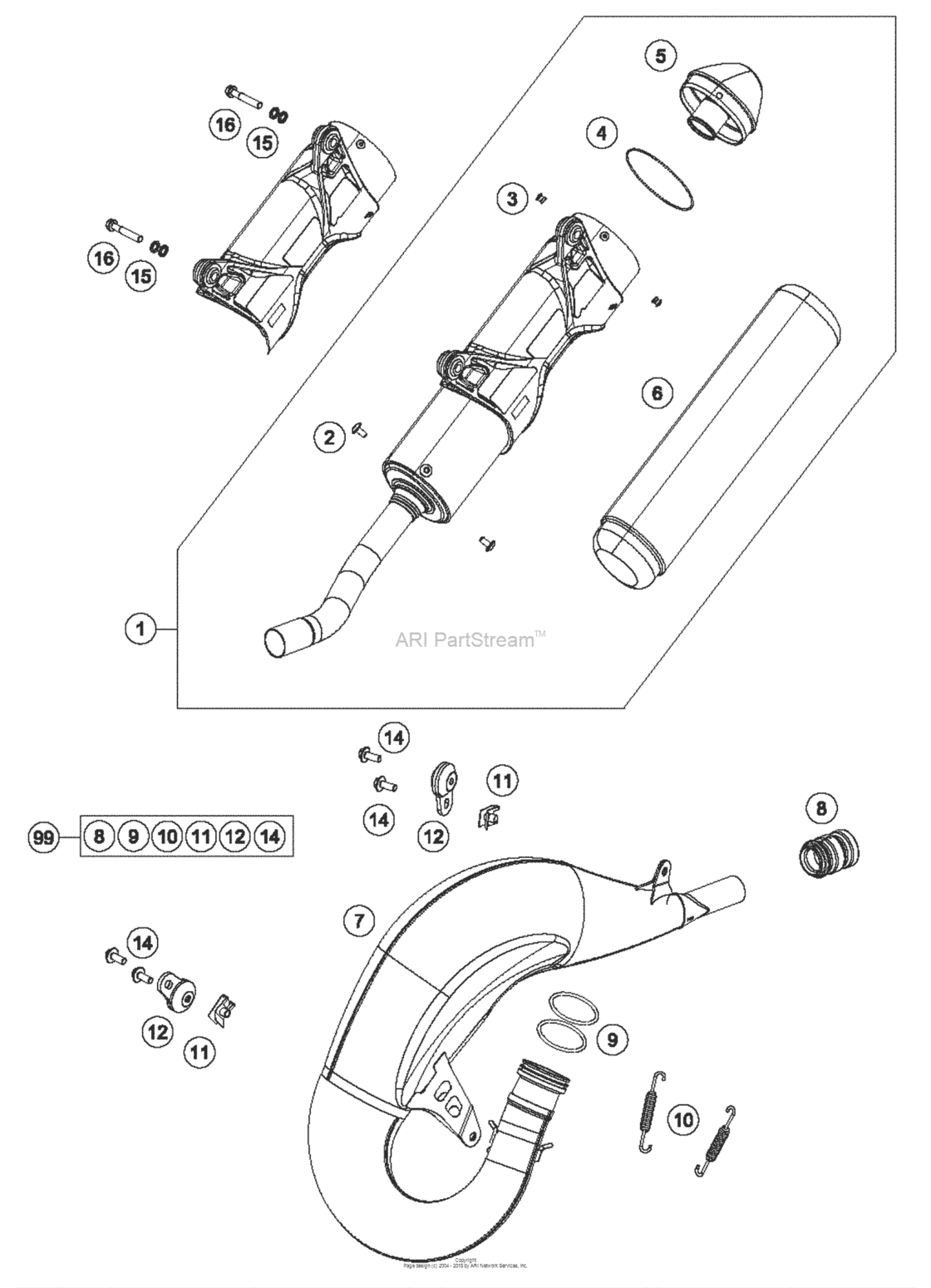

Exhaust System Diagram KTM 150 150 SX
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50405079000 Silencer2018 |
50405079000 |
US $387.79 |
||
|
2
|
2
78105081010 Screw Torx M5X102018 |
78105081010 |
US $0.61 |
||
|
3
|
3
0011480800 Dummy Rivet 4,8X 8 Niro2018 |
0011480800 |
US $2.35 |
||
|
4
|
4
0770740015 O-ring 74,00x1,50 fkm 75sh2018 |
0770740015 |
US $2.53 |
||
|
5
|
5
50305083260 End Cap Cpl2018 |
50305083260 |
US $91.10 |
||
|
6
|
6
50405078220 Rock Wool 220G2018 |
50405078220 |
US $58.58 |
||
|
7
|
7
50405007100 Exhaust Pipe2018 |
50405007100 |
US $771 |
||
|
8
|
8
54605057000 Rubber sleeve d=21mm/23mm '9393 |
54605057000 |
US $23.49 |
||
|
9
|
9
0770380030 O-ring 38,00x3,00 viton93 |
0770380030 |
US $3.52 |
||
|
10
|
10
50305016000
Ten.spring L=62Mm Ey.moveable
93 |
50305016000 |
— | ||
| replacement | |||||
|
10
|
10
A46005016000 TEN.SPRING L=62MM EY.MOVEABLE93 |
A46005016000 |
US $5.88 |
||
|
11
|
11
54603048100 Range Change Metal Nut M693 |
54603048100 |
US $5.27 |
||
|
12
|
12
50305012000 Swingelement For Exhaust Pipe93 |
50305012000 |
US $25.65 |
||
|
14
|
14
0024060156 Hh collar screw m6x15 tx30TX30 |
0024060156 |
US $3.96 |
||
|
15
|
15
50233041000 Pair of washers m 6 nordlockTX30 |
50233041000 |
US $3.25 |
||
|
16
|
16
0025060356 Hh collar screw m6x35 tx30TX30 |
0025060356 |
US $6.15 |
||
|
99
|
99
00050000810
Exhaust Hardware Kit
05-15, As Required |
00050000810 |
— | ||
| replacement | |||||
|
99
|
99
00050000811 Exhaust Hardware Kit 11-1405-15, As Required |
00050000811 |
US $103.96 |
||
