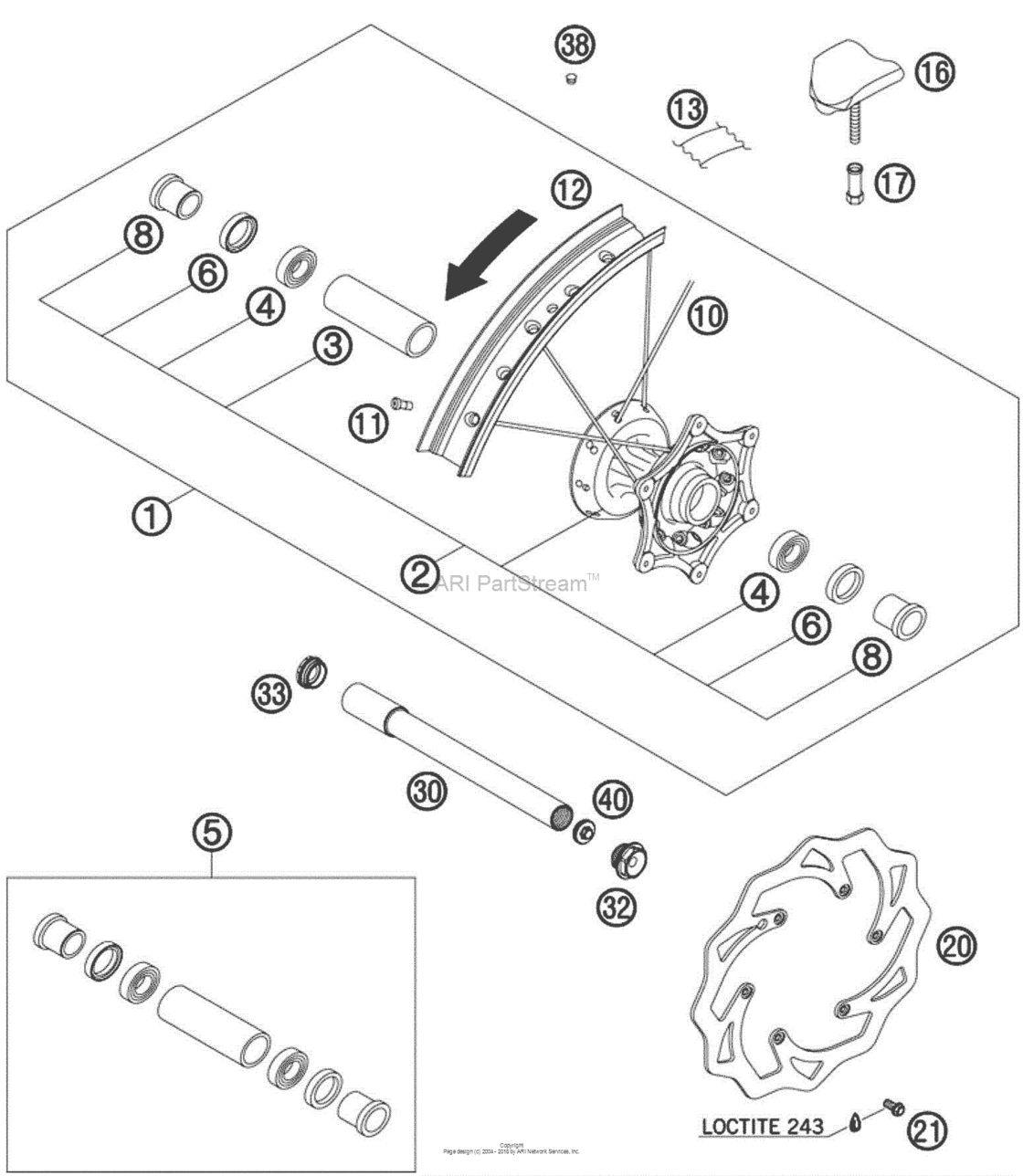

Front Wheel Diagram KTM 150 150 SX
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7730900114430 Frontwheel Cpl.1,6X21Excel 0808 |
7730900114430 |
US $747.42 |
||
|
2
|
2
78009010044
Front Wheel Hub Cpl
08 |
78009010044 |
— | ||
| replacement | |||||
|
2
|
2
78009010144 Front Wheel Hub Cpl08 |
78009010144 |
US $318.56 |
||
|
3
|
3
54809011000 Bea.spacertube 35x2 l=79,4 0303 |
54809011000 |
US $23.66 |
||
|
4
|
4
0625069068 Gr.ball Bear.6906 Ddu2Cg23S6Nm03 |
0625069068 |
US $44.68 |
||
|
5
|
5
77309015000
Front wheel rep. kit
03 |
77309015000 |
— | ||
| replacement | |||||
|
5
|
5
78009015000 Front wheel rep. kit03 |
78009015000 |
US $134.93 |
||
|
6
|
6
0760354771 Shaft seal ring 35x47x7 tc03 |
0760354771 |
US $11.19 |
||
|
8
|
8
77309012000
Spacer bushing 07
07 |
77309012000 |
— | ||
| replacement | |||||
|
8
|
8
78009012000 Spacer bushing f. fr. wheel 0807 |
78009012000 |
US $27.10 |
||
|
10
|
10
78009174226 Spoke M4,5X226-21 0808 |
78009174226 |
US $3.50 |
||
|
11
|
11
50309072100
Spoke Nipple Quadrax M4,5
08 |
50309072100 |
— | ||
| replacement | |||||
|
11
|
11
81210072000 Spoke nipple quadrax m4,508 |
81210072000 |
US $2.79 |
||
|
12
|
12
7730907000030 Rim 1,6"x21" excel sxs 0808 |
7730907000030 |
US $307.09 |
||
| replacement | |||||
|
12
|
12
7900907000030 Rim 1,6X21 Excel Black08 |
7900907000030 |
US $281.20 |
||
|
13
|
13
50309073000 Rim Band 2108 |
50309073000 |
US $8.59 |
||
|
16
|
16
51009100100 Rim Lock 1,6008 |
51009100100 |
US $20.55 |
||
| replacement | |||||
|
16
|
16
78109090000 Rim Lock 1,6008 |
78109090000 |
US $20.43 |
||
|
17
|
17
50310090050 Nut for wheel holder '96'96 |
50310090050 |
US $4.01 |
||
| replacement | |||||
|
17
|
17
77110090050 Nut For Wheel Holder'96 |
77110090050 |
US $3.60 |
||
|
20
|
20
77309060000 Brake Disc Front 260'96 |
77309060000 |
US $137.41 |
||
|
21
|
21
59009062013 Special Screw M6X13 Ws=8 10.910.9 |
59009062013 |
US $2.24 |
||
|
30
|
30
77309081000 Wheel Spin.fr. D=26 M24X1,5 0707 |
77309081000 |
US $79.71 |
||
|
32
|
32
54809082000 Spindle screw m24x1,5 ws=27 0303 |
54809082000 |
US $10.88 |
||
|
33
|
33
54809081050 Plug bushing ws=27 0303 |
54809081050 |
US $8.50 |
||
|
38
|
38
55003135000 Plug For Rim(As Required) |
55003135000 |
US $1.02 |
||
|
40
|
40
54809081070 Auxiliary screw front 0606 |
54809081070 |
US $6.17 |
||
