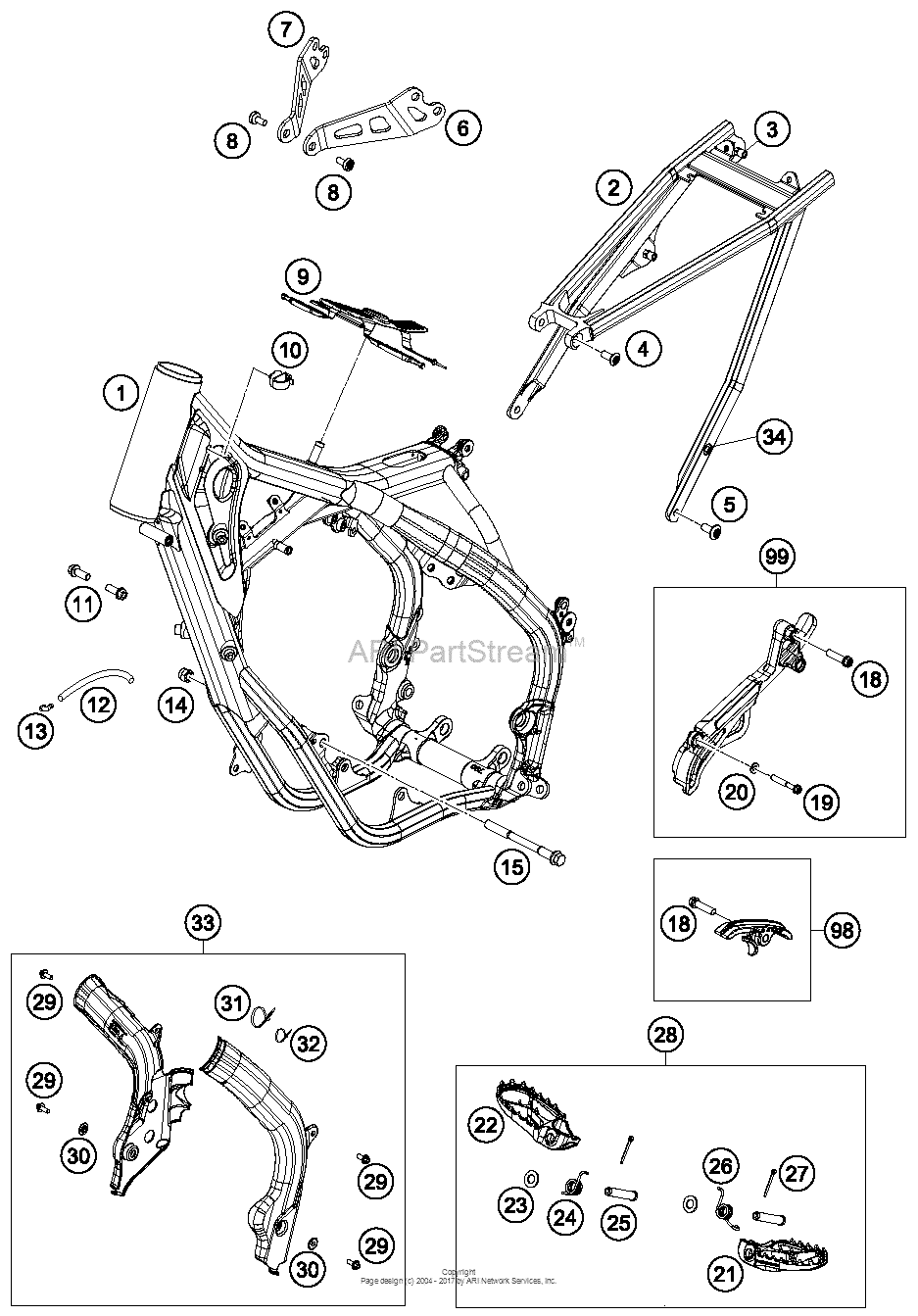

Frame Diagram KTM 150 150 SX
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5040300100033
Frame In.504P3In. Black
2016 |
5040300100033 |
— | ||
| replacement | |||||
|
1
|
1
5040300110033 FRAME 125/150 BLACK2016 |
5040300110033 |
US $2,048.81 |
||
|
2
|
2
79003002000 Subframe 20162016 |
79003002000 |
US $285.74 |
||
|
3
|
3
77303139000 Blind rivet nut em6-60lf/hx2016 |
77303139000 |
US $2.94 |
||
|
4
|
4
0019080206S Flat head screw m. isa45 m8x202016 |
0019080206S |
US $3.26 |
||
|
5
|
5
79003003000 Special Screw M8X18 Torx45 Ss2016 |
79003003000 |
US $1.58 |
||
|
6
|
6
50403013000 Engine Brace L/s2016 |
50403013000 |
US $32.79 |
||
|
7
|
7
50403014000 Engine Brace R/s2016 |
50403014000 |
US $36.86 |
||
|
8
|
8
0035080156S Ah-Collar Screw M8X15 Torx452016 |
0035080156S |
US $2.60 |
||
|
9
|
9
79007012000 Tank Rest Rubber2016 |
79007012000 |
US $8.31 |
||
|
10
|
10
58111076000 Cable support khs nr.150-476102016 |
58111076000 |
US $2.98 |
||
|
11
|
11
0025080166S Hh collar screw m8x16 tx40TX40 |
0025080166S |
US $1.58 |
||
|
12
|
12
50335030001 Pvc-Hose 6X9As Required |
50335030001 |
US $5.12 |
||
|
13
|
13
50303089000 Angle piece '97'97 |
50303089000 |
US $4.52 |
||
|
14
|
14
54310086100 Self locking nut m10 cu ws=14'97 |
54310086100 |
US $2.55 |
||
|
15
|
15
77203014000 Engine Brac.scr. M10X115'97 |
77203014000 |
US $7.65 |
||
|
18
|
18
0025080306 Hh collar screw m8x30 tx40TX40 |
0025080306 |
US $3.89 |
||
|
19
|
19
0025060406 Hh collar screw m6x40 tx30TX30 |
0025060406 |
US $2.23 |
||
|
20
|
20
0125060003 Washer Din0125-A 6,4TX30 |
0125060003 |
US $0.37 |
||
|
21
|
21
79003040000 Footrest L/s 20162016 |
79003040000 |
US $41.94 |
||
|
22
|
22
79003041000 Footrest R/s 20162016 |
79003041000 |
US $45.63 |
||
|
23
|
23
0125100003 Washer Din0125-A10,52016 |
0125100003 |
US $1.19 |
||
|
24
|
24
79003044000 Footrest Spring R/s 20162016 |
79003044000 |
US $1.38 |
||
|
25
|
25
54803044000 Pin For Foot Ped 51.5X9.8 Mm2016 |
54803044000 |
US $10.98 |
||
|
26
|
26
79003045000 Footrest Spring L/s 20162016 |
79003045000 |
US $1.38 |
||
|
27
|
27
0094032253 Pin din0094-3,2x25 steel2016 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
27
|
27
0094032250 Pin din0094-3,2x25 steel2016 |
0094032250 |
US $1.12 |
||
|
28
|
28
79003040033 Foot Pegs Set Cpl. 20162016 |
79003040033 |
US $102.53 |
||
|
29
|
29
0014050123 Hh collar screw m 5x12 ws=62016 |
0014050123 |
US $2.19 |
||
|
30
|
30
54803092060 Bush f. frame protection 032016 |
54803092060 |
US $3.43 |
||
|
31
|
31
44011076305 Cable tie 300/4,8mm black2016 |
44011076305 |
US $0.36 |
||
|
32
|
32
44011076140 Cable tie 140/2,5mm black2016 |
44011076140 |
US $0.29 |
||
|
33
|
33
7900309400033 Frame Protection Set Black2016 |
7900309400033 |
US $30.36 |
||
|
34
|
34
79003002080 Blind Rivet Nut M6 Knurled2016 |
79003002080 |
US $1.87 |
||
|
98
|
98
79003053010 Chain Sliding Kit Below Cpl.162016 |
79003053010 |
US $16.44 |
||
|
99
|
99
50403096010 Sprocket Cover Kit2016 |
50403096010 |
US $25.18 |
||
