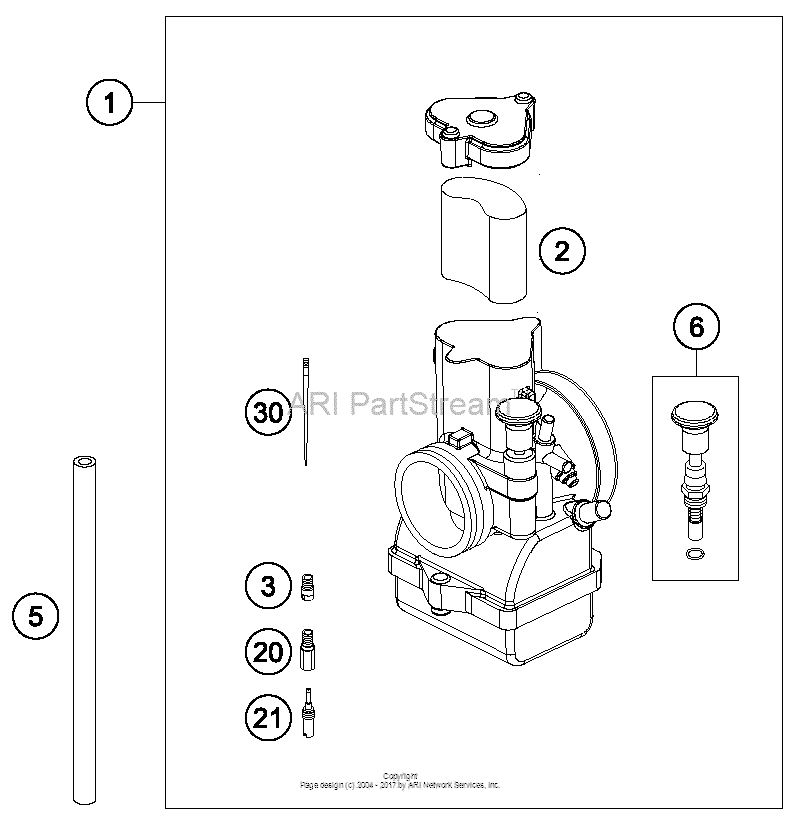

Carburetor Diagram KTM 150 150 SX
- Year
- 2017
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50431101044 Carburetor Mikuni Vm38As Required |
50431101044 |
US $648.60 |
||
|
2
|
2
55431035040 Throttle Slide In.4.0InAs Required |
55431035040 |
US $185.15 |
||
|
3
|
3
55431051050 Starting Jet In.50InAs Required |
55431051050 |
US $21.51 |
||
|
3
|
3
55431051080 Starting Jet In.80InAs Required |
55431051080 |
US $22 |
||
|
5
|
5
31007007101 Pvc-hose 4x6mmAs Required |
31007007101 |
US $2.38 |
||
|
6
|
6
55431245000
Start Piston Cpl
As Required |
55431245000 |
— | ||
|
20
|
20
55431029100 Main Jet In.100InAs Required |
55431029100 |
US $6.39 |
||
|
20
|
20
55431029155 Main Jet In.155InAs Required |
55431029155 |
US $6.39 |
||
|
20
|
20
55431029400 Main Jet In.400InAs Required |
55431029400 |
US $7.04 |
||
|
20
|
20
55431029410 Main Jet In.410InAs Required |
55431029410 |
US $7.04 |
||
|
20
|
20
55431029420 Main Jet In.420InAs Required |
55431029420 |
US $7.04 |
||
|
20
|
20
55431029430 Main Jet In.430InAs Required |
55431029430 |
US $7.04 |
||
|
20
|
20
55431029440 Main Jet In.440InAs Required |
55431029440 |
US $7.04 |
||
|
20
|
20
55431029450 Main Jet In.450InAs Required |
55431029450 |
US $7.04 |
||
|
20
|
20
55431029460 Main Jet In.460InAs Required |
55431029460 |
US $7.04 |
||
|
20
|
20
55431029470 Main Jet In.470InAs Required |
55431029470 |
US $7.04 |
||
|
20
|
20
55431029480 Main Jet In.480InAs Required |
55431029480 |
US $7.04 |
||
|
20
|
20
55431029490 Main Jet In.490InAs Required |
55431029490 |
US $7.04 |
||
|
20
|
20
55431029500 Main Jet In.500InAs Required |
55431029500 |
US $7.04 |
||
|
20
|
20
55431029520 Main Jet In.520InAs Required |
55431029520 |
US $7.04 |
||
|
20
|
20
55431029540 Main Jet In.540InAs Required |
55431029540 |
US $6.39 |
||
|
20
|
20
55431029560 Main Jet In.560InAs Required |
55431029560 |
US $7.04 |
||
|
20
|
20
55431029580 Main Jet In.580InAs Required |
55431029580 |
US $6.39 |
||
|
20
|
20
55431029600 Main Jet In.600InAs Required |
55431029600 |
US $6.39 |
||
|
21
|
21
55431007150 Idling Jet In.15InAs Required |
55431007150 |
US $15.95 |
||
|
21
|
21
55431007175 Idling Jet In.17.5InAs Required |
55431007175 |
US $15.95 |
||
|
21
|
21
55431007300 Idling Jet In.30InAs Required |
55431007300 |
US $15.95 |
||
|
21
|
21
55431007325 Idling Jet In.32.5InAs Required |
55431007325 |
US $15.95 |
||
|
21
|
21
55431007350 Idling Jet In.35InAs Required |
55431007350 |
US $15.95 |
||
|
21
|
21
55431007375 Idling Jet In.37.5InAs Required |
55431007375 |
US $15.95 |
||
|
21
|
21
55431007400 Idling Jet In.40InAs Required |
55431007400 |
US $15.95 |
||
|
21
|
21
55431007425 Idling Jet In.42.5InAs Required |
55431007425 |
US $15.95 |
||
|
21
|
21
55431007450 Idling Jet In.45InAs Required |
55431007450 |
US $15.95 |
||
|
21
|
21
55431007475 Idling Jet In.47.5InAs Required |
55431007475 |
US $15.95 |
||
|
21
|
21
55431007500 Idling Jet In.50InAs Required |
55431007500 |
US $15.95 |
||
|
21
|
21
55431007525 Idling Jet In.52.5InAs Required |
55431007525 |
US $15.95 |
||
|
30
|
30
55431934000 Jet Needle In.6Gay69-74InAs Required |
55431934000 |
US $16.66 |
||
|
30
|
30
55431034000 Jet Needle In.6Bfy42-71InAs Required |
55431034000 |
US $16.66 |
||
|
30
|
30
55431034100 Jet Needle In.6Bfy42-72InAs Required |
55431034100 |
US $16.66 |
||
|
30
|
30
55431034200 Jet Needle In.6Bfy42-73InAs Required |
55431034200 |
US $16.66 |
||
|
30
|
30
55431034300 Jet Needle In.6Bfy42-74InAs Required |
55431034300 |
US $16.66 |
||
|
30
|
30
55431034400 Jet Needle In.6Bfy42-75InAs Required |
55431034400 |
US $13.62 |
||
|
30
|
30
55431034500 Jet Needle In.6Bfy42-76InAs Required |
55431034500 |
US $16.66 |
||
|
30
|
30
55431134000 Jet Needle In.6Bfy43-71InAs Required |
55431134000 |
US $16.66 |
||
|
30
|
30
55431134100 Jet Needle In.6Bfy43-72InAs Required |
55431134100 |
US $16.66 |
||
|
30
|
30
55431134200 Jet Needle In.6Bfy43-73InAs Required |
55431134200 |
US $16.66 |
||
|
30
|
30
55431134300 Jet Needle In.6Bfy43-74InAs Required |
55431134300 |
US $16.66 |
||
|
30
|
30
55431134400 Jet Needle In.6Bfy43-75InAs Required |
55431134400 |
US $16.66 |
||
|
30
|
30
55431134500 Jet Needle In.6Bfy43-76InAs Required |
55431134500 |
US $16.66 |
||
|
30
|
30
55431234000 Jet Needle In.6Bfy44-71InAs Required |
55431234000 |
US $16.66 |
||
|
30
|
30
55431234100 Jet Needle In.6Bfy44-72InAs Required |
55431234100 |
US $16.66 |
||
|
30
|
30
55431234200 Jet Needle In.6Bfy44-73InAs Required |
55431234200 |
US $16.66 |
||
|
30
|
30
55431234300 Jet Needle In.6Bfy44-74InAs Required |
55431234300 |
US $16.66 |
||
|
30
|
30
55431234400 Jet Needle In.6Bfy44-75InAs Required |
55431234400 |
US $16.66 |
||
|
30
|
30
55431234500 Jet Needle In.6Bfy44-76InAs Required |
55431234500 |
US $16.66 |
