Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 51630038000 Cylinder + Piston Cpl. 150 As Required	51630038000	US $1,468.07
2	2 58336020090 Vacuum connection m 6x1 As Required	58336020090	US $5.61
3	3 0770890200 O-Ring 89X2 Nbr 70 Sh As Required	0770890200	US $6.15
4	4 0770640200 O-Ring 64X2 Fpm 80Sh As Required	0770640200	US $3.91
5	5 51630060000 Combustion Chamber Inlay As Required	51630060000	US $36.43
	replacement
5	5 51630060100 COMBUSTION CHAMBER INLAY As Required	51630060100	US $36.43
6	6 51630106000 Cylinder Head As Required	51630106000	US $38.52
7	7 0603061001 Cu-Seal Ring Din7603-6X10X1 As Required	0603061001	US $2.64
8	8 0025060106 Hh collar screw m6x10 tx30 TX30	0025060106	US $1.58
9	9 07702300251 O-Ring 23,00X2,5 Nbr 70 Sh TX30	07702300251	US $4.10
10	10 0603070121 Cu-seal ring din7603- 7,3x12x1 TX30	0603070121	US $1.09
11	11 50430079000 Cylinder Head Screw TX30	50430079000	US $3.30
12	12 50330045000 Hh collar nut m 8 ws=12 TX30	50330045000	US $2.19
13	13 0835080326 Stud Din 835 M8X32 TX30	0835080326	US $1.60
14	14 50430035015 Cylinder Base Gasket 0.15Mm As Required	50430035015	US $6.97
14	14 50430035020 Cylinder Base Gasket 0.20Mm As Required	50430035020	US $7.67
14	14 50430035025 Cylinder Base Gasket 0.25Mm As Required	50430035025	US $9.04
14	14 50430035040 Cylinder Base Gasket 0.40Mm As Required	50430035040	US $7.67
14	14 50430035050 Cylinder Base Gasket 0.50Mm As Required	50430035050	US $7.75
14	14 50430035075 Cylinder Base Gasket 0.75Mm As Required	50430035075	US $9.98
15	15 0402040980 Needle Rol.din5402 Nrb 4X9,8 As Required	0402040980	US $1.77
16	16 50437046000 Gasket Connection Flange As Required	50437046000	US $12.09
18	18 51005074000 Retaining plate As Required	51005074000	US $2.11
19	19 0025060256 Hh collar screw m6x25 tx30 TX30	0025060256	US $2.45
20	20 0913060203 Thread Pin Din0913-M 6X20 TX30	0913060203	US $0.53
21	21 0603061001 Cu-Seal Ring Din7603-6X10X1 TX30	0603061001	US $2.64
22	22 77336088106 Collar nut m6x1 sw8 TX30	77336088106	US $12.50
23	23 5043700700033 Exhaust Control Cover R/s TX30	5043700700033	US $20.21
24	24 50437008000 Gasket Exh. Control Cover R/s TX30	50437008000	US $7.92
25	25 50437006000 Gasket Exh. Control Cover L/s TX30	50437006000	US $7.67
26	26 5043700500033 Exhaust Control Cover L/s TX30	5043700500033	US $21.59
27	27 58605083014 Screw m5x14 torx 25 07 TX30	58605083014	US $1.58
28	28 50335030001 Pvc-Hose 6X9 As Required	50335030001	US $5.12

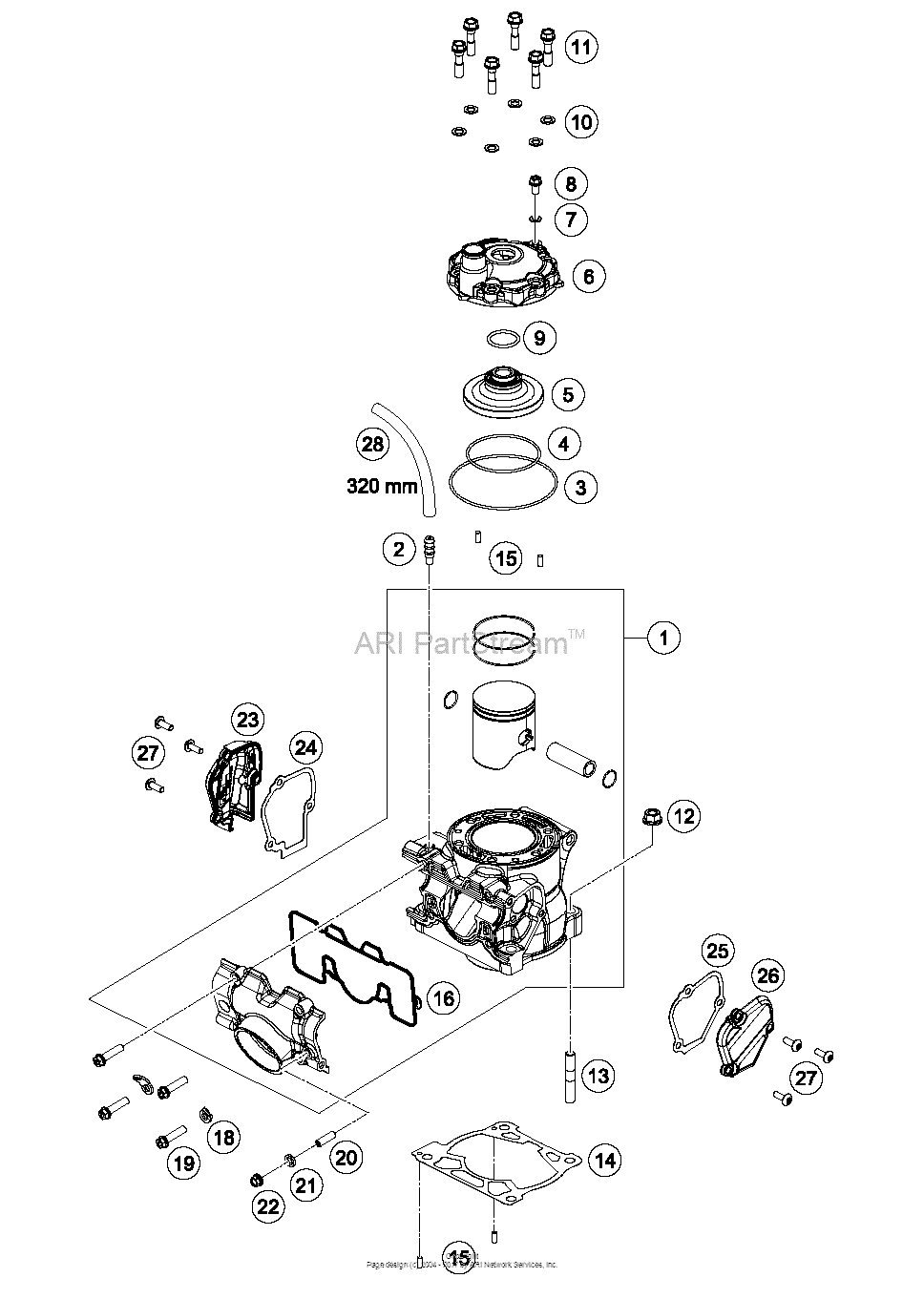

Cylinder, Cylinder Head Diagram KTM 150 150 SX US/EU 18078541-939325

Cylinder, Cylinder Head Diagram KTM 150 150 SX US/EU 18078541-939325
