	Description	OEM Part #	Price
1	1 50305083100 Exh. Silen. 125 Exc Sixdays 04 04	50305083100	—
8	8 59405169000 Bushing sil.-smr rear 2004 2004	59405169000	US $7.38
9	9 12011016000 Washer 6 x 12 x 3 2004	12011016000	US $0.53
10	10 0025060306 Hh collar screw m6x30 tx30 TX30	0025060306	US $3.96
11	11 77305069000 Bushing 7.5x12x28x7.6 07 07	77305069000	US $5.70
12	12 54605068000 Exhaust bracket rubber black 07	54605068000	—
	replacement
12	12 77205068000 Damp. Compon. Black 07	77205068000	US $8.43
13	13 0025060356 Hh collar screw m6x35 tx30 TX30	0025060356	US $6.15
14	14 0137060003 Spring Washer Din0137-B 6 TX30	0137060003	US $0.43
15	15 54805079052 Silencer endcap 2-stroke 2004 2004	54805079052	—
16	16 54805079150 Silcencer rubber 2-stroke 2005 2005	54805079150	US $12.85
17	17 54805079060 Silencer connecting-cap 2004 2004	54805079060	US $26.01
18	18 54805083060 Silencer disc 2004 2004	54805083060	US $3.50
19	19 54805079058 Silencer screw 2-stroke 2004 2004	54805079058	US $6.36
21	21 0770055020 0-ring 55,00x2,00 nbr70 2004	0770055020	US $1.45
25	25 0024060106 Hh collar screw m6x10 tx30 TX30	0024060106	US $4.35
26	26 0024060156 Hh collar screw m6x15 tx30 TX30	0024060156	US $3.96
27	27 50305012000 Swingelement For Exhaust Pipe TX30	50305012000	US $25.65
28	28 54603048100 Range Change Metal Nut M6 TX30	54603048100	US $5.27
29	29 54605157000 Silicon sleeve d=25/27mm TX30	54605157000	US $29.34
30	30 50305007200 Exhaust pipe cpl. 125 sx 2004 2004	50305007200	US $408.53
31	31 50305016000 Ten.spring L=62Mm Ey.moveable 2004	50305016000	—
	replacement
31	31 A46005016000 TEN.SPRING L=62MM EY.MOVEABLE 2004	A46005016000	US $5.88
32	32 0770440030 O-ring 44,00x3,00 viton 2004	0770440030	US $6.05
38	38 54805078330 Stuffing yarn-set 330 gram 04 04	54805078330	US $97.94

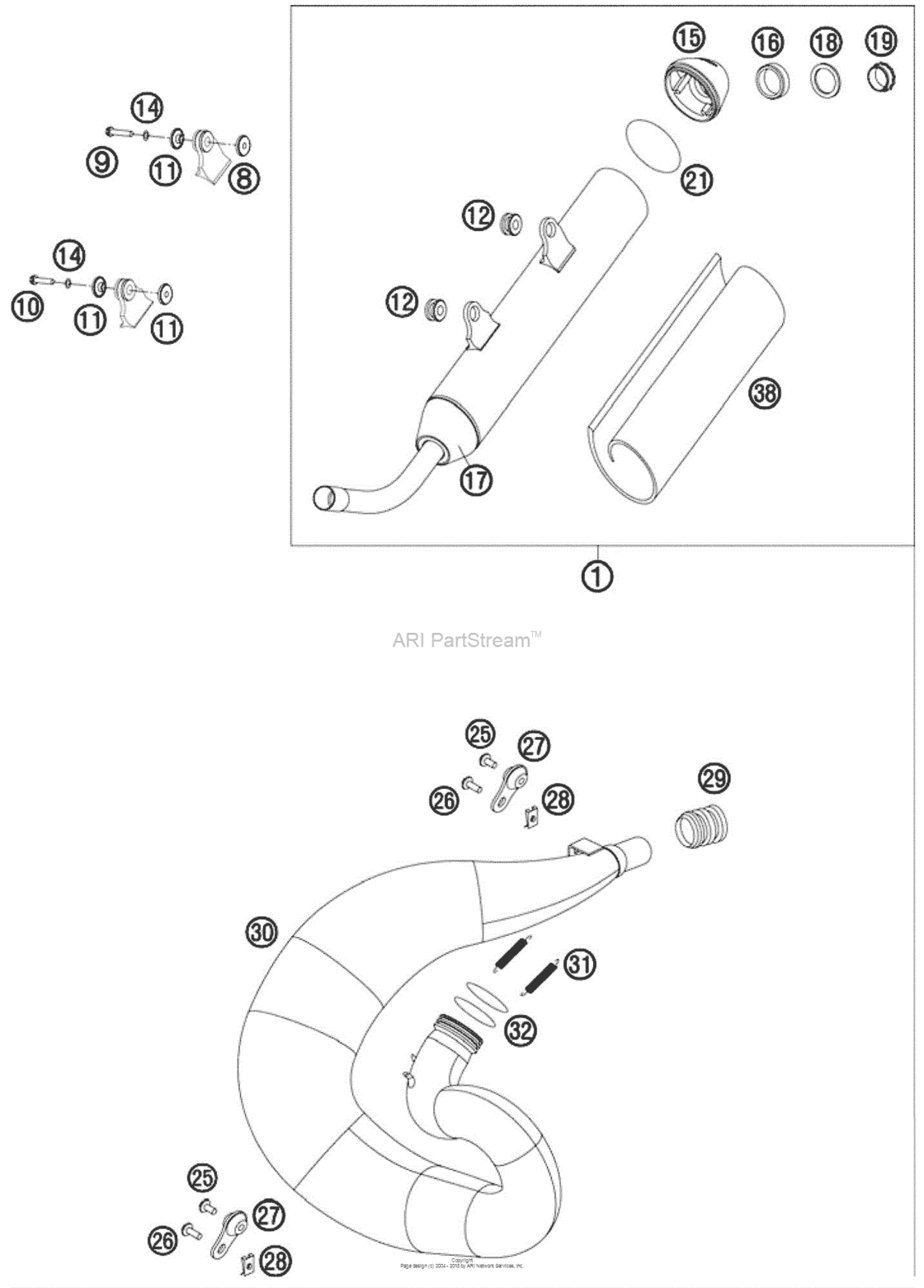

Exhaust System Diagram KTM 150 150 XC US/EU 18078706-939336

Exhaust System Diagram KTM 150 150 XC US/EU 18078706-939336
