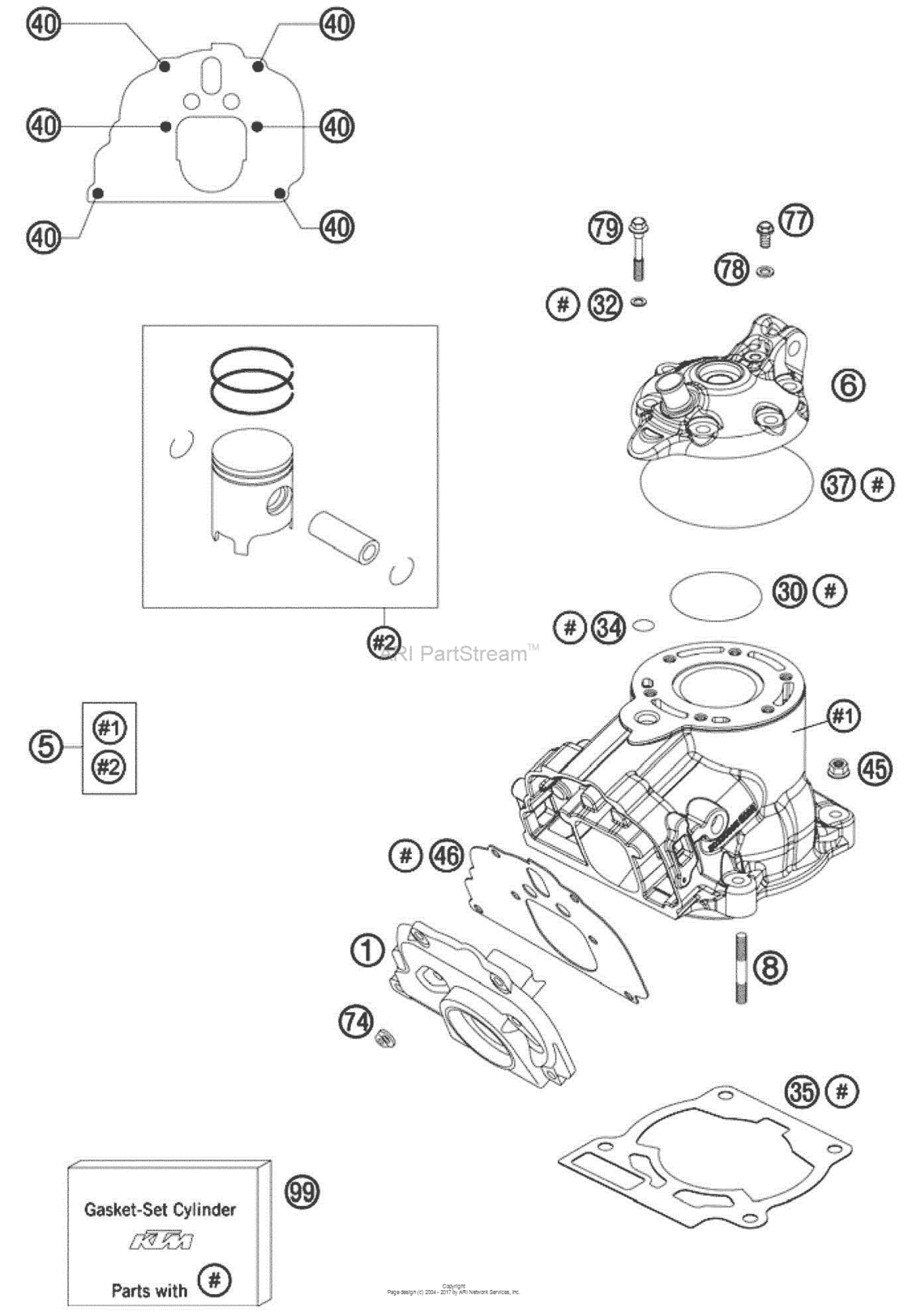

Cylinder, Cylinder Head Diagram KTM 150 150 XC
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50337001200 Intermediate flange 125 0606 |
50337001200 |
US $52.05 |
||
|
5
|
5
51530038200 Cylinder And Piston Cpl. 15006 |
51530038200 |
US $1,024.78 |
||
| replacement | |||||
|
5
|
5
51530038300 Cylinder And Piston Cpl. 15006 |
51530038300 |
US $922.03 |
||
|
6
|
6
51530006100
Cylinder head 144 09
09 |
51530006100 |
— | ||
| replacement | |||||
|
6
|
6
51530006200 Cylinder Head 15009 |
51530006200 |
US $153.82 |
||
|
8
|
8
0835080276 Stud din0835-m 8x2709 |
0835080276 |
US $3.30 |
||
|
30
|
30
0770062020 O-ring 62,00x2,00 viton09 |
0770062020 |
US $10.47 |
||
|
32
|
32
50230032010 Cu-seal ring 7,3 x 12 x 0,509 |
50230032010 |
US $2.23 |
||
| replacement | |||||
|
32
|
32
0603070121 Cu-seal ring din7603- 7,3x12x109 |
0603070121 |
US $1.09 |
||
|
34
|
34
0770012021 O-ring 12x2 viton green09 |
0770012021 |
US $1.34 |
||
|
35
|
35
50330035020 Cylinder base gasket 0,20mm(As required) |
50330035020 |
US $5.41 |
||
|
35
|
35
50330035025 Cylinder base gasket 0,25mm(As required) |
50330035025 |
US $4.64 |
||
|
35
|
35
50330035040 Cylinder base gasket 0,40mm(As required) |
50330035040 |
US $5.03 |
||
|
35
|
35
50330035050 Cylinder base gasket 0,50mm(As required) |
50330035050 |
US $4.37 |
||
|
35
|
35
50330035075 Cylinder base gasket 0,75mm(As required) |
50330035075 |
US $7.38 |
||
|
37
|
37
0770086020 O-ring 86x2 viton75shore green(As required) |
0770086020 |
US $6.89 |
||
|
40
|
40
0014050203 Hh collar screw m 5x20 ws=6WS=6 |
0014050203 |
US $2.79 |
||
|
45
|
45
50330045000 Hh collar nut m 8 ws=12WS=12 |
50330045000 |
US $2.19 |
||
|
46
|
46
50337046200 Intermed. gasket 125 0606 |
50337046200 |
US $10.22 |
||
| replacement | |||||
|
46
|
46
50337046300 Intermediate Flange Gasket06 |
50337046300 |
US $7.75 |
||
|
74
|
74
51005074000 Retaining plate06 |
51005074000 |
US $2.11 |
||
|
77
|
77
0025060106 Hh collar screw m6x10 tx30TX30 |
0025060106 |
US $1.58 |
||
|
78
|
78
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
||
|
79
|
79
50330079000 Cyl. head bolt m 7x30 ws=10WS=10 |
50330079000 |
US $3.30 |
||
|
99
|
99
50330097100 Cylinder gasket set 125/200 0707 (As required) |
50330097100 |
US $57.36 |
||
