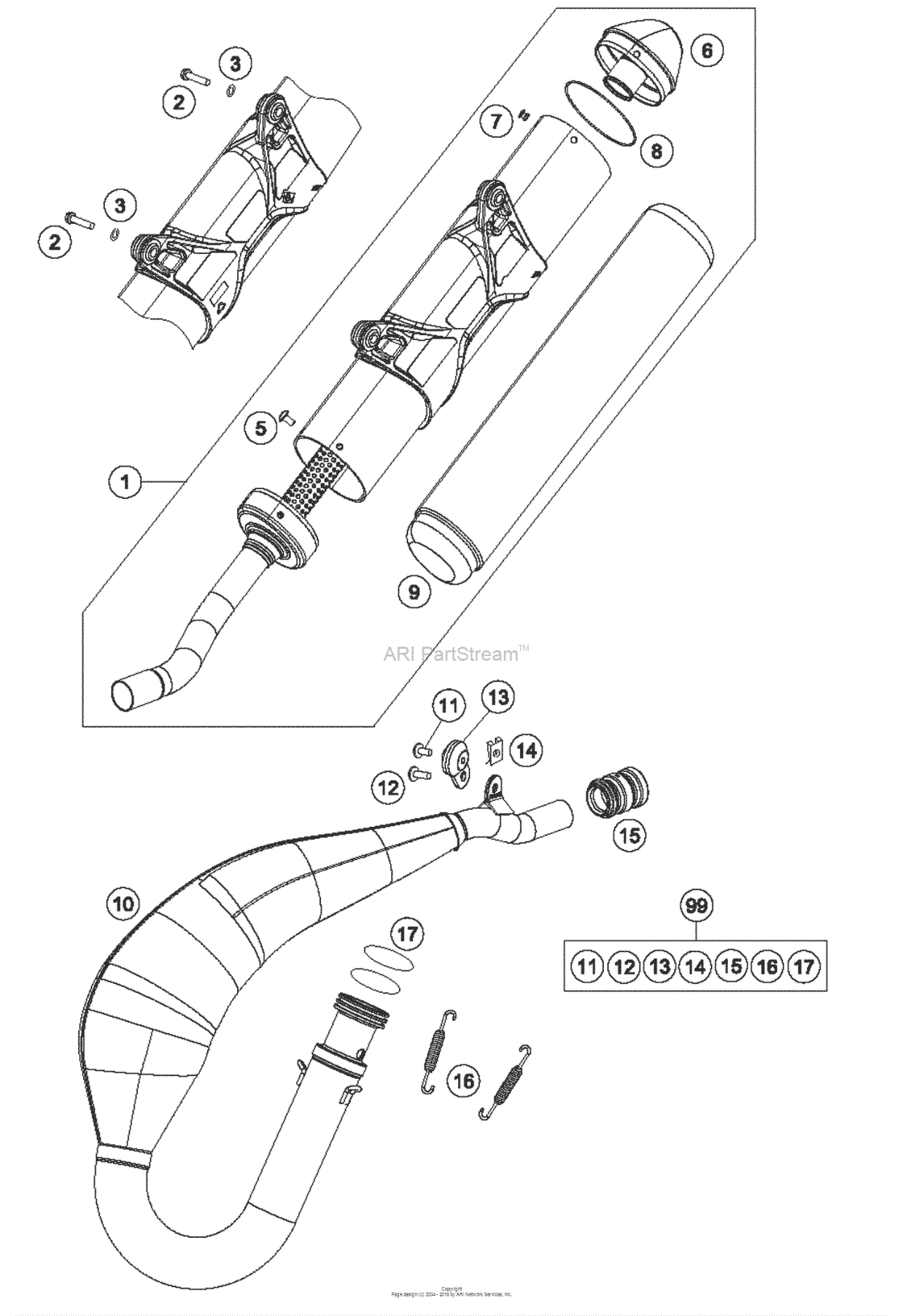

Exhaust System Diagram KTM 150 150 XC-W
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50405083000 Silencer 125 Exc2018 |
50405083000 |
US $396.63 |
||
|
2
|
2
0025060356 Hh collar screw m6x35 tx30TX30 |
0025060356 |
US $6.15 |
||
|
3
|
3
50233041000 Pair of washers m 6 nordlockTX30 |
50233041000 |
US $3.25 |
||
|
5
|
5
78105081010 Screw Torx M5X10TX30 |
78105081010 |
US $0.61 |
||
|
6
|
6
50305083260 End Cap CplTX30 |
50305083260 |
US $91.10 |
||
|
7
|
7
0011480800 Dummy Rivet 4,8X 8 NiroTX30 |
0011480800 |
US $2.35 |
||
|
8
|
8
0770740015 O-ring 74,00x1,50 fkm 75shTX30 |
0770740015 |
US $2.53 |
||
|
9
|
9
54805078265 Rock Wool 265GTX30 |
54805078265 |
US $50.90 |
||
|
10
|
10
50405007100 Exhaust PipeTX30 |
50405007100 |
US $771 |
||
|
11
|
11
0024060106 Hh collar screw m6x10 tx30TX30 |
0024060106 |
US $4.35 |
||
|
12
|
12
0024060156 Hh collar screw m6x15 tx30TX30 |
0024060156 |
US $3.96 |
||
|
13
|
13
50305012000 Swingelement For Exhaust PipeTX30 |
50305012000 |
US $25.65 |
||
|
14
|
14
54603048100 Range Change Metal Nut M6TX30 |
54603048100 |
US $5.27 |
||
|
15
|
15
54605057000 Rubber sleeve d=21mm/23mm '9393 |
54605057000 |
US $23.49 |
||
|
16
|
16
50305016000
Ten.spring L=62Mm Ey.moveable
93 |
50305016000 |
— | ||
| replacement | |||||
|
16
|
16
A46005016000 TEN.SPRING L=62MM EY.MOVEABLE93 |
A46005016000 |
US $5.88 |
||
|
17
|
17
0770380030 O-ring 38,00x3,00 viton93 |
0770380030 |
US $3.52 |
||
|
99
|
99
00050000811 Exhaust Hardware Kit 11-1411-14, As Required |
00050000811 |
US $103.96 |
||
