Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 5040310100033 Rahmen ''504Q2''schwarz 11-14, As Required	5040310100033	US $1,981.18
2	2 79003002000 Subframe 2016 11-14, As Required	79003002000	US $285.74
3	3 0019080206S Flat head screw m. isa45 m8x20 M8X20	0019080206S	US $3.26
5	5 79607012000 Tank Rest Rubber M8X20	79607012000	US $8.67
7	7 50403096000 Front Chain Guard 125 M8X20	50403096000	US $22.10
8	8 77203014000 Engine Brac.scr. M10X115 M8X20	77203014000	US $7.65
9	9 0035080156S Ah-Collar Screw M8X15 Torx45 M8X20	0035080156S	US $2.60
11	11 59001037000 Special screw m8x26 ws=10 M8X20	59001037000	US $2.09
12	12 50307014000 Tank Roller 12X26X12 '98 98	50307014000	US $14.20
13	13 0026060136 Collar Screw M6X13 Isa30 98	0026060136	US $0.54
14	14 50403113000 Motor Bracket Left 98	50403113000	US $31.57
15	15 50403114000 Motor Bracket Right 98	50403114000	US $31.57
16	16 79003003000 Special Screw M8X18 Torx45 Ss 98	79003003000	US $1.58
17	17 44011076305 Cable tie 300/4,8mm black As Required	44011076305	US $0.36
17	17 44011076140 Cable tie 140/2,5mm black As Required	44011076140	US $0.29
18	18 0014050123 Hh collar screw m 5x12 ws=6 As Required	0014050123	US $2.19
19	19 54803092060 Bush f. frame protection 03 As Required	54803092060	US $3.43
20	20 0025060126 Hh collar screw m6x12 tx30 TX30	0025060126	US $3.96
22	22 0025080306 Hh collar screw m8x30 tx40 TX40	0025080306	US $3.89
23	23 0025060406 Hh collar screw m6x40 tx30 TX30	0025060406	US $2.23
24	24 0125060003 Washer Din0125-A 6,4 TX30	0125060003	US $0.37
25	25 0934080003 Hexagon Nut Din0934-M 8 TX30	0934080003	US $3.26
26	26 54310086100 Self locking nut m10 cu ws=14 TX30	54310086100	US $2.55
29	29 0035080206S Ah-collar screw m8x20 isa45 TX45	0035080206S	US $6.73
30	30 79003053000 Chain Slider Lower Part Cpl TX45	79003053000	US $9.81
36	36 79603040000 Footrest L/s Exc 2017 2017	79603040000	US $46.10
39	39 79003045000 Footrest Spring L/s 2016 2016	79003045000	US $1.38
40	40 79603041000 Footrest R/s Exc 2017 2017	79603041000	US $46.10
41	41 54803044000 Pin For Foot Ped 51.5X9.8 Mm 2017	54803044000	US $10.98
42	42 79003044000 Footrest Spring R/s 2016 2016	79003044000	US $1.38
43	43 0125100003 Washer Din0125-A10,5 2016	0125100003	US $1.19
44	44 0094032253 Pin din0094-3,2x25 steel 2016	0094032253	US $1.12
	replacement
44	44 0094032250 Pin din0094-3,2x25 steel 2016	0094032250	US $1.12
45	45 79603040033 Footrest-Set 2016	79603040033	US $117.01
46	46 51030022000 Angle piece 90 degree m10x1 2016	51030022000	US $4.66
47	47 55007016001 Pvc-hose 7x10 per meter As Required	55007016001	US $5.98
95	95 7900309400033 Frame Protection Set Black As Required	7900309400033	US $30.36
97	97 79003053010 Chain Sliding Kit Below Cpl.16 As Required	79003053010	US $16.44
99	99 50403096010 Sprocket Cover Kit As Required	50403096010	US $25.18

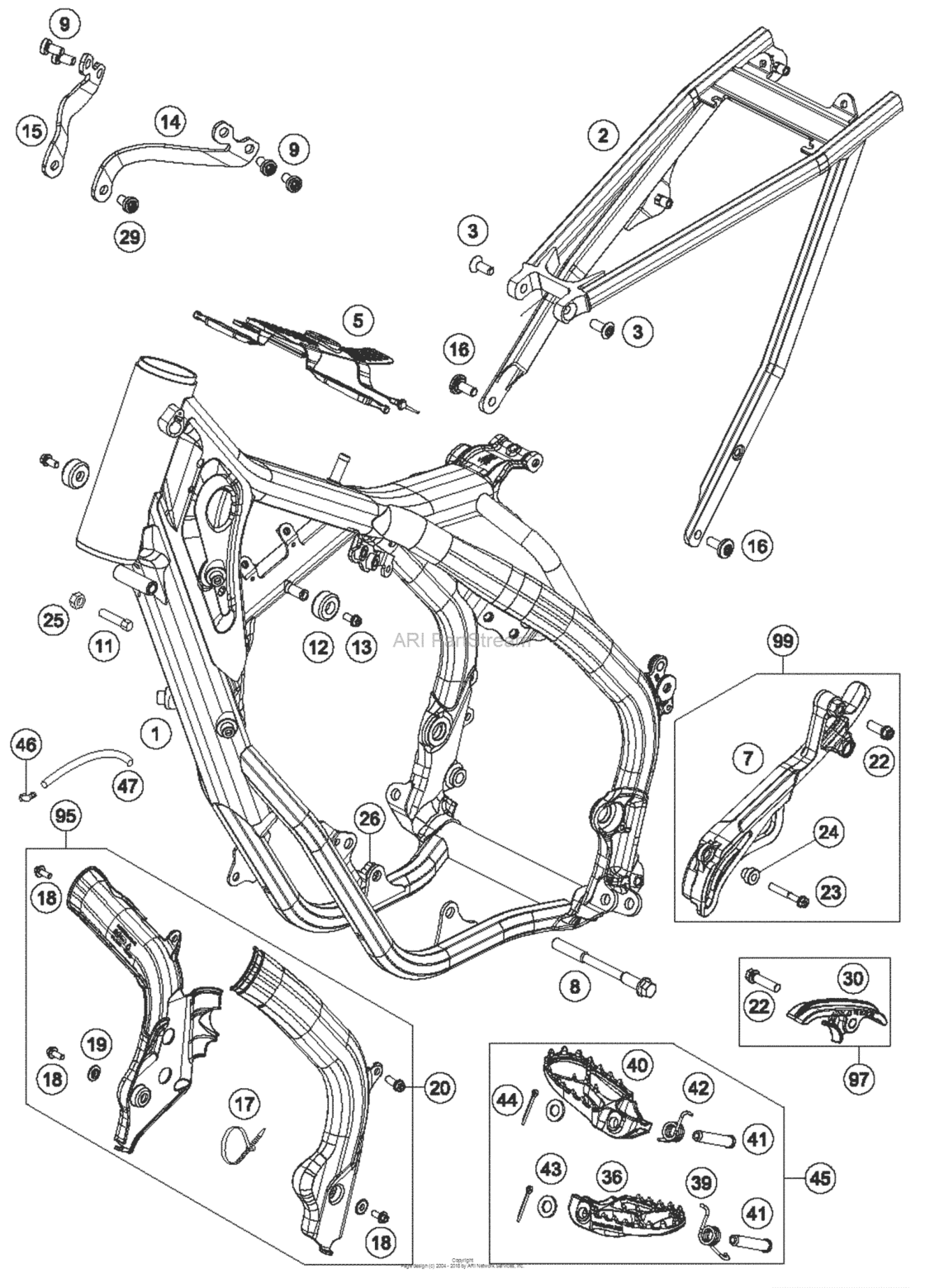

Frame Diagram KTM 150 150 XC-W US/EU 18078905-939347

Frame Diagram KTM 150 150 XC-W US/EU 18078905-939347
