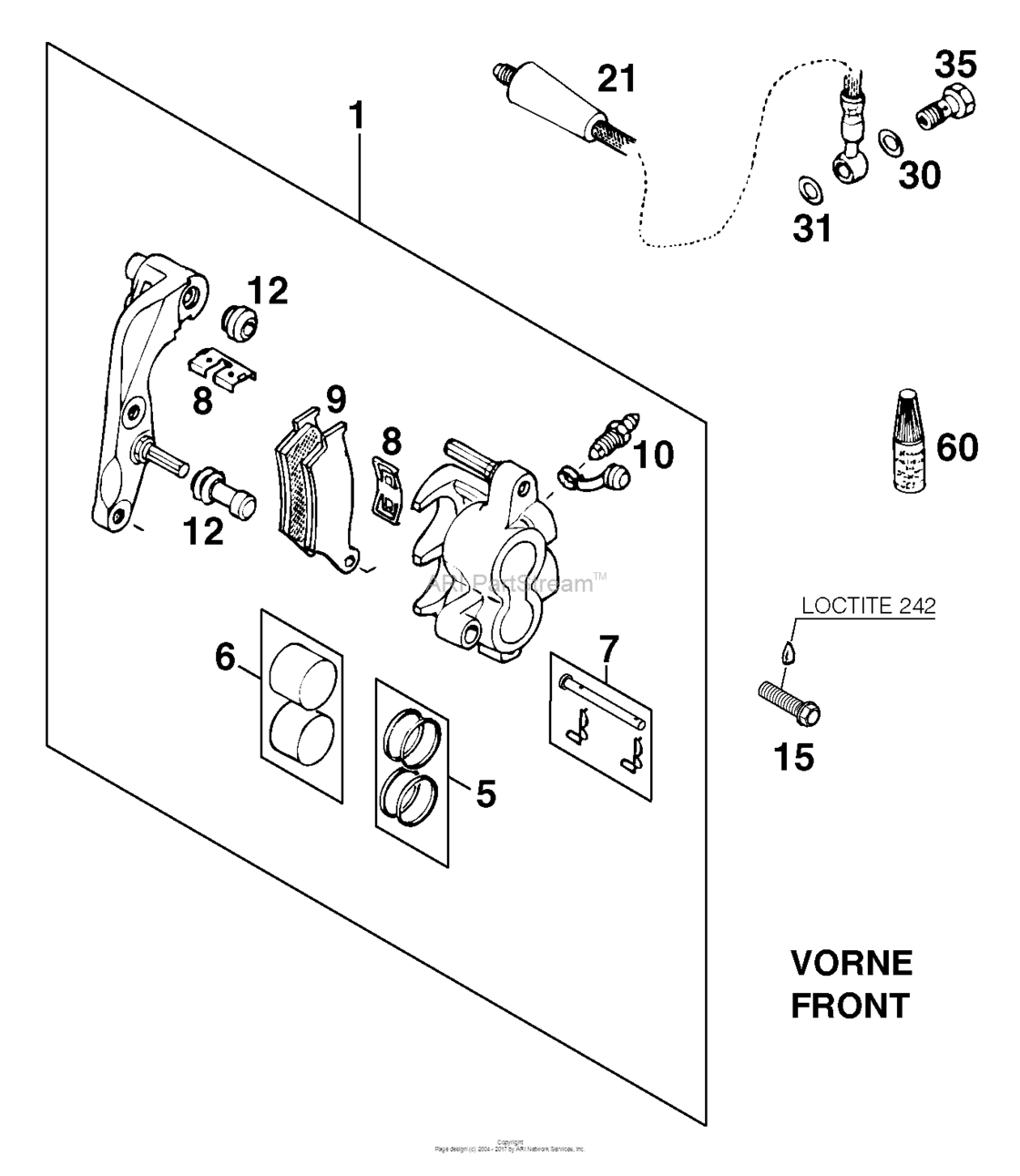

Brake Caliper Front Diagram KTM 200 200 EXC
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50313015044
Brake caliper front brembo '99
FOR SPOILER 6X11X16X7,5 |
50313015044 |
— | ||
|
5
|
5
54613205000 Repair kit 28mmFOR SPOILER 6X11X16X7,5 |
54613205000 |
US $20.21 |
||
|
6
|
6
54613206000 Repair kit piston 28mmFOR SPOILER 6X11X16X7,5 |
54613206000 |
US $40.29 |
||
|
7
|
7
54613210100 Bolt Cpl. 6X56FOR SPOILER 6X11X16X7,5 |
54613210100 |
US $17.19 |
||
|
8
|
8
54613212000 Retaining Plate Set BremboFOR SPOILER 6X11X16X7,5 |
54613212000 |
US $27.20 |
||
|
9
|
9
50313030000 Brake Pad Set Fr. Toshiba H38FOR SPOILER 6X11X16X7,5 |
50313030000 |
US $84.32 |
||
|
9
|
9
54613209044 Brake Pad Set Ferodo Id450FfFOR SPOILER 6X11X16X7,5 |
54613209044 |
US $50.71 |
||
| replacement | |||||
|
9
|
9
54613209244 Brake pad set ferodo id450ffFOR SPOILER 6X11X16X7,5 |
54613209244 |
US $40.89 |
||
|
10
|
10
54513214000 Bleeder Screw With CapFOR SPOILER 6X11X16X7,5 |
54513214000 |
US $14.89 |
||
| replacement | |||||
|
10
|
10
60013020000 Bleeder Screw With CapFOR SPOILER 6X11X16X7,5 |
60013020000 |
US $6.27 |
||
|
12
|
12
54613218000 Cup Set ShortFOR SPOILER 6X11X16X7,5 |
54613218000 |
US $25.72 |
||
| replacement | |||||
|
12
|
12
54613218100 CUP SET SHORTFOR SPOILER 6X11X16X7,5 |
54613218100 |
US $25.72 |
||
|
15
|
15
0015080353 Hh Collar Screw M 8X35 Ws=10FOR SPOILER 6X11X16X7,5 |
0015080353 |
US $7.12 |
||
|
21
|
21
50313011100 Brake hose fr.marz. 1290mm '98FOR SPOILER 6X11X16X7,5 |
50313011100 |
US $86.33 |
||
|
21
|
21
58313010000 Brake hose front wp 1195mm '97FOR SPOILER 6X11X16X7,5 |
58313010000 |
US $64.36 |
||
|
21
|
21
58313010100
Brake hose front wp 1290mm '97
FOR SPOILER 6X11X16X7,5 |
58313010100 |
— | ||
|
30
|
30
42013226000 Cu-Seal Ring Din7603-10X16X1FOR SPOILER 6X11X16X7,5 |
42013226000 |
US $4.10 |
||
|
31
|
31
42013026000 Cu-seal ring din7603-10x16x1,5FOR SPOILER 6X11X16X7,5 |
42013026000 |
US $2.24 |
||
|
35
|
35
50213025000 Hollow Screw M10X1X19FOR SPOILER 6X11X16X7,5 |
50213025000 |
US $5.39 |
||
|
60
|
60
6899785 Loctite 243 Blue 6CcmFOR SPOILER 6X11X16X7,5 |
6899785 |
US $40.61 |
||
