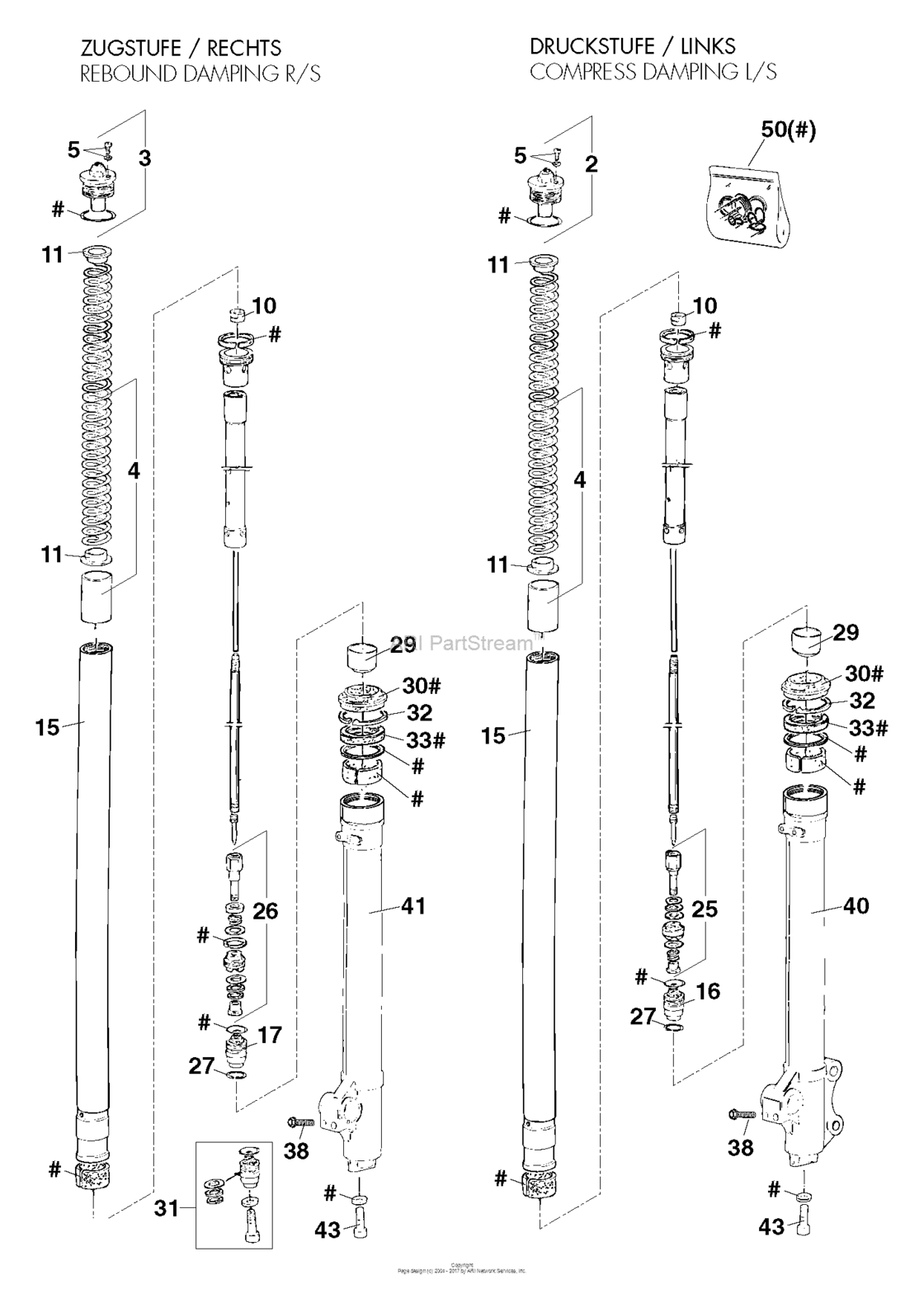

Fork Legs Marzocchi Diagram KTM 200 200 EXC
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
7701164R
Screw cap cpl. l/s "c"
FOR SPOILER 6X11X16X7,5 |
7701164R |
— | ||
|
3
|
3
7701165R
Screw cap cpl. r/s "r"
FOR SPOILER 6X11X16X7,5 |
7701165R |
— | ||
|
4
|
4
7850246
Spring kit 4,0 n/mm
FOR SPOILER 6X11X16X7,5 |
7850246 |
— | ||
|
4
|
4
7850247
Spring kit 4,2 n/mm
FOR SPOILER 6X11X16X7,5 |
7850247 |
— | ||
|
4
|
4
7850248 Spring kit 4,5 n/mmFOR SPOILER 6X11X16X7,5 |
7850248 |
US $89.51 |
||
|
4
|
4
7850249
Spring kit 4,8 n/mm
FOR SPOILER 6X11X16X7,5 |
7850249 |
— | ||
|
5
|
5
7850208AR Lentil head screw m4x6FOR SPOILER 6X11X16X7,5 |
7850208AR |
US $1.60 |
||
|
10
|
10
7521119KM
Lock nut
FOR SPOILER 6X11X16X7,5 |
7521119KM |
— | ||
|
11
|
11
7536071 Spring guide cupFOR SPOILER 6X11X16X7,5 |
7536071 |
US $25.25 |
||
|
15
|
15
7507437
Fork tube d=45mm
FOR SPOILER 6X11X16X7,5 |
7507437 |
— | ||
|
16
|
16
7717033
Foot valve l/s typ 81,82,83,91
FOR SPOILER 6X11X16X7,5 |
7717033 |
— | ||
|
17
|
17
7717035
Foot valve r/s type 82,83,91
FOR SPOILER 6X11X16X7,5 |
7717035 |
— | ||
|
25
|
25
7715062
Piston cpl. l/s type 82,83,91
FOR SPOILER 6X11X16X7,5 |
7715062 |
— | ||
|
26
|
26
7715060
Piston cpl.r/s typ 81,82,83,91
FOR SPOILER 6X11X16X7,5 |
7715060 |
— | ||
|
27
|
27
7523232
Stop ring
FOR SPOILER 6X11X16X7,5 |
7523232 |
— | ||
|
29
|
29
7532631 HydrostopFOR SPOILER 6X11X16X7,5 |
7532631 |
US $15.45 |
||
|
30
|
30
7533266 Dust sealFOR SPOILER 6X11X16X7,5 |
7533266 |
US $18.58 |
||
|
31
|
31
7850618
Adjustment kit rebound r/s
FOR SPOILER 6X11X16X7,5 |
7850618 |
— | ||
|
32
|
32
7523239 Stop ringFOR SPOILER 6X11X16X7,5 |
7523239 |
US $1.60 |
||
|
33
|
33
7528197
Seal ring 45x58x11
FOR SPOILER 6X11X16X7,5 |
7528197 |
— | ||
|
38
|
38
7520196 H h collar screw m 6x25 ws=10FOR SPOILER 6X11X16X7,5 |
7520196 |
US $2.28 |
||
|
40
|
40
75031323BS
Slider tube l/s compress
FOR SPOILER 6X11X16X7,5 |
75031323BS |
— | ||
|
41
|
41
75031326BS
Slide tube r/s rebound
FOR SPOILER 6X11X16X7,5 |
75031326BS |
— | ||
|
43
|
43
7520256
Ah screw marzocchi
FOR SPOILER 6X11X16X7,5 |
7520256 |
— | ||
|
50
|
50
7850628 Repair kit sealrings+bushingsFOR SPOILER 6X11X16X7,5 |
7850628 |
US $187.26 |
