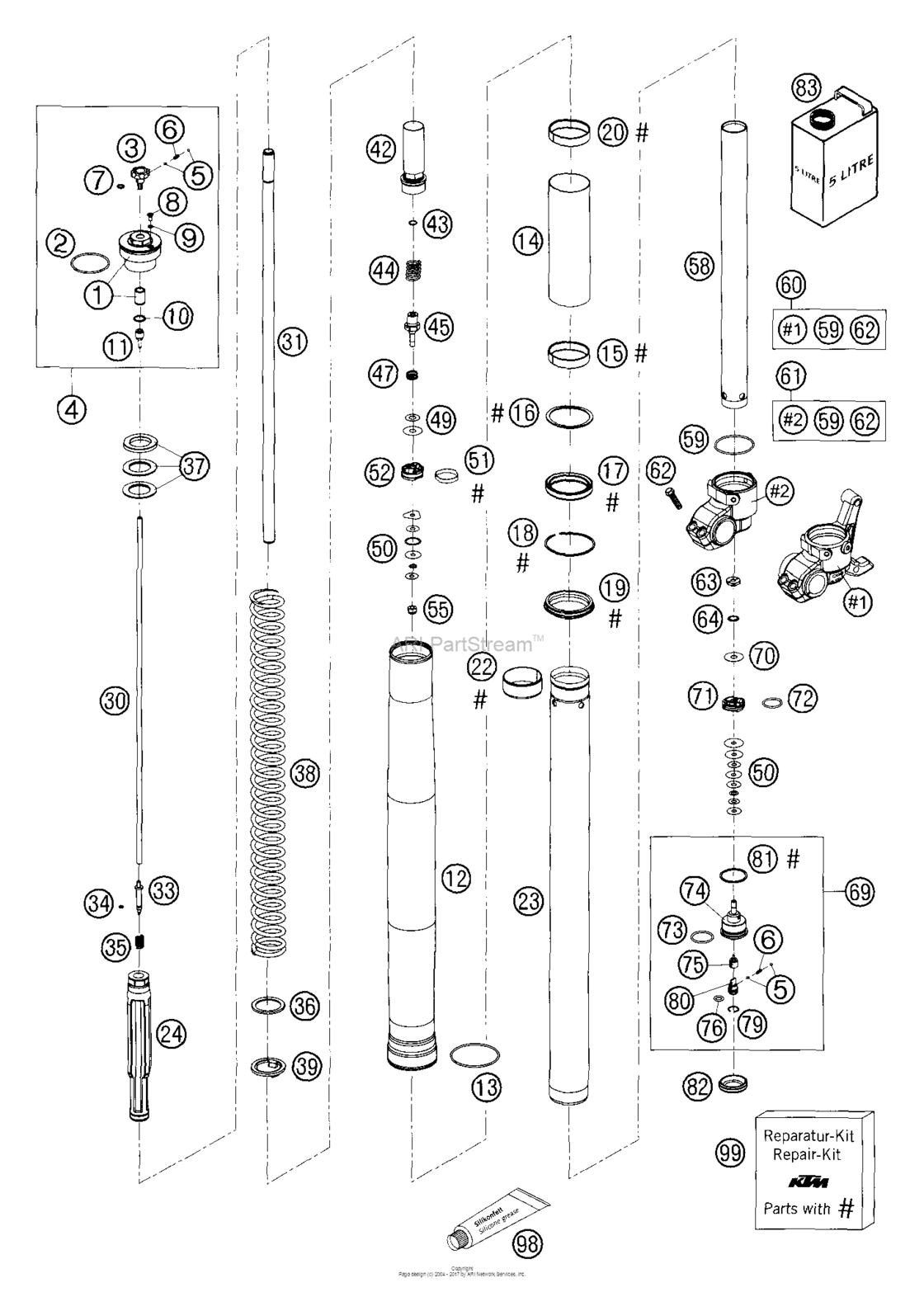

Fork Legs Wp Usd 48 Diagram KTM 200 200 EXC
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600020S
Screw Cap M51X1,5 Cpl
FOR SPOILER 6X11X16X7,5 |
48600020S |
— | ||
| replacement | |||||
|
1
|
1
48600020S1
Screw Cap M51X1,5 Cpl
FOR SPOILER 6X11X16X7,5 |
48600020S1 |
— | ||
|
2
|
2
46810340 O-ring nbr 45x2FOR SPOILER 6X11X16X7,5 |
46810340 |
US $4.01 |
||
|
3
|
3
48600018 Knob reboung adjusterFOR SPOILER 6X11X16X7,5 |
48600018 |
US $6 |
||
|
4
|
4
48600020S1
Screw Cap M51X1,5 Cpl
FOR SPOILER 6X11X16X7,5 |
48600020S1 |
— | ||
|
5
|
5
40540603 Steel ball d=3mmFOR SPOILER 6X11X16X7,5 |
40540603 |
US $1.22 |
||
|
6
|
6
48600028 Spring d=2,9 l=7,9FOR SPOILER 6X11X16X7,5 |
48600028 |
US $3.03 |
||
|
7
|
7
48600044 O-ring nbr 6x1,5FOR SPOILER 6X11X16X7,5 |
48600044 |
US $1.14 |
||
|
8
|
8
48600058 Vent screw m4x6FOR SPOILER 6X11X16X7,5 |
48600058 |
US $2.09 |
||
|
9
|
9
48600009 O-ring nbr 3,7x1,6FOR SPOILER 6X11X16X7,5 |
48600009 |
US $0.90 |
||
|
10
|
10
48600043 O-ring nbr 12x1,5FOR SPOILER 6X11X16X7,5 |
48600043 |
US $2.24 |
||
|
11
|
11
48600019 Holder f.adjustment tube d=4mmFOR SPOILER 6X11X16X7,5 |
48600019 |
US $3.69 |
||
|
12
|
12
48600381 Outer Tube L=577 D=54/60MmFOR SPOILER 6X11X16X7,5 |
48600381 |
US $575.54 |
||
| replacement | |||||
|
12
|
12
48600381E OUTER TUBE L=577 D=54/60MMFOR SPOILER 6X11X16X7,5 |
48600381E |
US $515.44 |
||
|
13
|
13
48600016 Guiding ring d=58mmFOR SPOILER 6X11X16X7,5 |
48600016 |
US $5.34 |
||
|
14
|
14
48600245 Spacer 50,95x0,85x161,5FOR SPOILER 6X11X16X7,5 |
48600245 |
US $29.33 |
||
|
15
|
15
48600205
Leading Bush 48X52X12+8Mm
FOR SPOILER 6X11X16X7,5 |
48600205 |
— | ||
| replacement | |||||
|
15
|
15
48600429S LEADING BUSH 48X52X12+8MMFOR SPOILER 6X11X16X7,5 |
48600429S |
US $58.97 |
||
|
16
|
16
48600013 Support ring 50 x 57,6 x 1,5FOR SPOILER 6X11X16X7,5 |
48600013 |
US $11.37 |
||
|
17
|
17
48600399
Oil seal ring 48x57,8x9,5
FOR SPOILER 6X11X16X7,5 |
48600399 |
— | ||
|
18
|
18
48600070 Lock washer sb58FOR SPOILER 6X11X16X7,5 |
48600070 |
US $2.35 |
||
|
19
|
19
48600400
Dust Seal
FOR SPOILER 6X11X16X7,5 |
48600400 |
— | ||
| replacement | |||||
|
19
|
19
48600816 Dust sealFOR SPOILER 6X11X16X7,5 |
48600816 |
US $27.03 |
||
|
20
|
20
48600236 Guiding ring 48x51x12FOR SPOILER 6X11X16X7,5 |
48600236 |
US $39.54 |
||
|
22
|
22
48600204 Guiding Bush 47X49X20 R11FOR SPOILER 6X11X16X7,5 |
48600204 |
US $38.57 |
||
| replacement | |||||
|
22
|
22
48601008 Guiding Bush 47X49X20 R11FOR SPOILER 6X11X16X7,5 |
48601008 |
US $13.23 |
||
|
23
|
23
48600377 Inner tube d=48 l=595 2005FOR SPOILER 6X11X16X7,5 |
48600377 |
US $542.66 |
||
| replacement | |||||
|
23
|
23
48601052 INNER TUBE D=48 L=595FOR SPOILER 6X11X16X7,5 |
48601052 |
US $502.18 |
||
|
24
|
24
48600380S
Hydr.stop L=200Mm D=31,9 Cpl
FOR SPOILER 6X11X16X7,5 |
48600380S |
— | ||
| replacement | |||||
|
24
|
24
48600380S1 Hydr.stop L=200Mm D=31,9 CplFOR SPOILER 6X11X16X7,5 |
48600380S1 |
US $71.57 |
||
|
30
|
30
48600092 Adjustment tube l=517mmFOR SPOILER 6X11X16X7,5 |
48600092 |
US $55.32 |
||
|
31
|
31
48600409 Piston rod d=14 l=551 m11x1FOR SPOILER 6X11X16X7,5 |
48600409 |
US $133.35 |
||
|
31
|
31
48600053 Spacer 42X26,5X1,5FOR SPOILER 6X11X16X7,5 |
48600053 |
US $7.09 |
||
|
33
|
33
48600189 Needle rebound 2003FOR SPOILER 6X11X16X7,5 |
48600189 |
US $36.04 |
||
|
34
|
34
48600046 O-ring nbr 3x1,5FOR SPOILER 6X11X16X7,5 |
48600046 |
US $2.47 |
||
|
35
|
35
48600033 Spring rebound needle c=4n/mmFOR SPOILER 6X11X16X7,5 |
48600033 |
US $15.81 |
||
|
36
|
36
48600113 Washer 32x42x2,5FOR SPOILER 6X11X16X7,5 |
48600113 |
US $11.58 |
||
|
37
|
37
48600036 Spacer 42x26,5x2,5FOR SPOILER 6X11X16X7,5 |
48600036 |
US $6.48 |
||
|
37
|
37
48600037 Spacer 42x26,5x5FOR SPOILER 6X11X16X7,5 |
48600037 |
US $6.41 |
||
|
37
|
37
48600038 Spacer 42x26,5x10FOR SPOILER 6X11X16X7,5 |
48600038 |
US $8.04 |
||
|
38
|
38
91410011S Spring 3,6n/mm setFOR SPOILER 6X11X16X7,5 |
91410011S |
US $223.13 |
||
|
38
|
38
91410012S Spring 3,8n/mm set d=4,9mmFOR SPOILER 6X11X16X7,5 |
91410012S |
US $223.13 |
||
|
38
|
38
91410013S Spring 4,0n/mm set d=5,0mmFOR SPOILER 6X11X16X7,5 |
91410013S |
US $223.13 |
||
|
38
|
38
91410014S Spring 4,2n/mm set d=5,0mmFOR SPOILER 6X11X16X7,5 |
91410014S |
US $223.13 |
||
|
38
|
38
91410015S Spring 4,4n/mm set d=5,1mmFOR SPOILER 6X11X16X7,5 |
91410015S |
US $223.13 |
||
|
38
|
38
91410016S Spring 4,6n/mm setFOR SPOILER 6X11X16X7,5 |
91410016S |
US $223.13 |
||
|
38
|
38
91410017S Spring 4,8n/mm setFOR SPOILER 6X11X16X7,5 |
91410017S |
US $334.41 |
||
|
39
|
39
48600021 Interm. ring 26,2 x 43 x 3FOR SPOILER 6X11X16X7,5 |
48600021 |
US $16.59 |
||
|
42
|
42
48600383S Screw sleeve m29,3x1 l=90 cpl.FOR SPOILER 6X11X16X7,5 |
48600383S |
US $104.65 |
||
|
43
|
43
48600239 O-ring nbr 8x1,25FOR SPOILER 6X11X16X7,5 |
48600239 |
US $2.24 |
||
|
44
|
44
48600403 Rebound spring d=15mm l=34,5mmFOR SPOILER 6X11X16X7,5 |
48600403 |
US $46.94 |
||
|
45
|
45
48600203 Tab rebound d=3 03FOR SPOILER 6X11X16X7,5 |
48600203 |
US $36.81 |
||
|
47
|
47
35480377 Spring check valve d=0,5FOR SPOILER 6X11X16X7,5 |
35480377 |
US $2.53 |
||
|
49
|
49
48600062 Check valve 8x24x0,1FOR SPOILER 6X11X16X7,5 |
48600062 |
US $3.26 |
||
|
49
|
49
48600068
Check valve 8x18x0,1
FOR SPOILER 6X11X16X7,5 |
48600068 |
— | ||
| replacement | |||||
|
49
|
49
43570120 Shim 8x18x0,10FOR SPOILER 6X11X16X7,5 |
43570120 |
US $9.93 |
||
|
49
|
49
48600216 Check valve 8x22x0,1FOR SPOILER 6X11X16X7,5 |
48600216 |
US $5.15 |
||
|
49
|
49
48600215 Check valve 8x20x0,1FOR SPOILER 6X11X16X7,5 |
48600215 |
US $5.15 |
||
|
50
|
50
48600063 Shim 6x24x0,1FOR SPOILER 6X11X16X7,5 |
48600063 |
US $2.77 |
||
|
50
|
50
48600064 Shim 6x22x0,1FOR SPOILER 6X11X16X7,5 |
48600064 |
US $4.17 |
||
|
50
|
50
48600065 Shim 6x20x0,1FOR SPOILER 6X11X16X7,5 |
48600065 |
US $3.67 |
||
|
50
|
50
48600116 Shim 6X24X0,1 DeltaFOR SPOILER 6X11X16X7,5 |
48600116 |
US $5.95 |
||
|
50
|
50
40540401 Shim 6x14x0,1FOR SPOILER 6X11X16X7,5 |
40540401 |
US $3.49 |
||
|
50
|
50
40540402 Shim 6x16x0,1FOR SPOILER 6X11X16X7,5 |
40540402 |
US $2.72 |
||
|
50
|
50
40540403 Shim 6x18x0,1FOR SPOILER 6X11X16X7,5 |
40540403 |
US $2.87 |
||
|
50
|
50
40540414 Shim 6x16x0,25FOR SPOILER 6X11X16X7,5 |
40540414 |
US $3.72 |
||
|
50
|
50
40540415 Shim 6x18x0,25FOR SPOILER 6X11X16X7,5 |
40540415 |
US $3.69 |
||
|
50
|
50
40540449 Shim 6x9x0,3FOR SPOILER 6X11X16X7,5 |
40540449 |
US $2.38 |
||
|
50
|
50
40540450 Shim 6x9,5x0,3FOR SPOILER 6X11X16X7,5 |
40540450 |
US $2.02 |
||
|
51
|
51
48600060 Piston ring 5x1x84FOR SPOILER 6X11X16X7,5 |
48600060 |
US $6 |
||
|
52
|
52
48600042 Piston rebound d=27,7FOR SPOILER 6X11X16X7,5 |
48600042 |
US $48.96 |
||
|
55
|
55
40540486 Nut m6x0,5 reboundFOR SPOILER 6X11X16X7,5 |
40540486 |
US $5.20 |
||
|
58
|
58
48600081 Tube 29,3x1x390 d=8,5mmFOR SPOILER 6X11X16X7,5 |
48600081 |
US $119.51 |
||
|
59
|
59
48600048 O-ring nbr 46 x 2FOR SPOILER 6X11X16X7,5 |
48600048 |
US $1.94 |
||
|
60
|
60
48600237S
Axle Clamp L/s Cpl
FOR SPOILER 6X11X16X7,5 |
48600237S |
— | ||
| replacement | |||||
|
60
|
60
48600860S Axle clamp l/s cpl.FOR SPOILER 6X11X16X7,5 |
48600860S |
US $468.32 |
||
|
61
|
61
48600238S Axle clamp r/s cpl. usd48 04FOR SPOILER 6X11X16X7,5 |
48600238S |
US $339.39 |
||
|
62
|
62
0015080253
H H Collar Screw
FOR SPOILER 6X11X16X7,5 |
0015080253 |
— | ||
| replacement | |||||
|
62
|
62
0025080256 Hh Collar Screw M8X25 Tx40FOR SPOILER 6X11X16X7,5 |
0025080256 |
US $4.10 |
||
|
63
|
63
48600163 Check valve nut m6x0,5 d=2FOR SPOILER 6X11X16X7,5 |
48600163 |
US $13.80 |
||
|
64
|
64
48600202 Spring check valve d=0,7FOR SPOILER 6X11X16X7,5 |
48600202 |
US $2.28 |
||
|
69
|
69
48600152S1 Tap Compression CplFOR SPOILER 6X11X16X7,5 |
48600152S1 |
US $100.27 |
||
| replacement | |||||
|
69
|
69
48600586E Tap Compression CplFOR SPOILER 6X11X16X7,5 |
48600586E |
US $96.46 |
||
|
70
|
70
48600061 Check valve 8x24x0,4FOR SPOILER 6X11X16X7,5 |
48600061 |
US $4.32 |
||
|
71
|
71
48600047 Piston compression d=27,9FOR SPOILER 6X11X16X7,5 |
48600047 |
US $49.96 |
||
|
72
|
72
46811499 O-ring nbr 21x2FOR SPOILER 6X11X16X7,5 |
46811499 |
US $1.48 |
||
|
73
|
73
35480320 O-ring nbr 24x2FOR SPOILER 6X11X16X7,5 |
35480320 |
US $2.70 |
||
|
74
|
74
48600152
Tap Compression Cpl
FOR SPOILER 6X11X16X7,5 |
48600152 |
— | ||
| replacement | |||||
|
74
|
74
48600586E Tap Compression CplFOR SPOILER 6X11X16X7,5 |
48600586E |
US $96.46 |
||
|
75
|
75
48600190 Needle compression 2003FOR SPOILER 6X11X16X7,5 |
48600190 |
US $13.45 |
||
|
76
|
76
48600049 O-ring nbr 8x2FOR SPOILER 6X11X16X7,5 |
48600049 |
US $3.67 |
||
|
79
|
79
48600051 Lock washer rb12FOR SPOILER 6X11X16X7,5 |
48600051 |
US $1.39 |
||
|
80
|
80
48600034
Compression adj. screw
FOR SPOILER 6X11X16X7,5 |
48600034 |
— | ||
|
81
|
81
48600004 Copper washer 29,5x33,5x1FOR SPOILER 6X11X16X7,5 |
48600004 |
US $1.65 |
||
|
82
|
82
48600141 Rubber cap d=35mmFOR SPOILER 6X11X16X7,5 |
48600141 |
US $3.42 |
||
|
83
|
83
48600401S1 Fork Oil Sae4 5LFOR SPOILER 6X11X16X7,5 |
48600401S1 |
US $273.85 |
||
| replacement | |||||
|
83
|
83
48601166S1 Fork Oil Sae4 5LFOR SPOILER 6X11X16X7,5 |
48601166S1 |
US $218.08 |
||
|
98
|
98
T511 Silicone grease f. dust striFOR SPOILER 6X11X16X7,5 |
T511 |
US $132.91 |
||
|
99
|
99
R14009
Repair-kit gasket 4860 mxma 05
FOR SPOILER 6X11X16X7,5 |
R14009 |
— | ||
| replacement | |||||
|
99
|
99
R14007 Repair-kit gasket 4860 mxma 03FOR SPOILER 6X11X16X7,5 |
R14007 |
US $330.09 |
||
