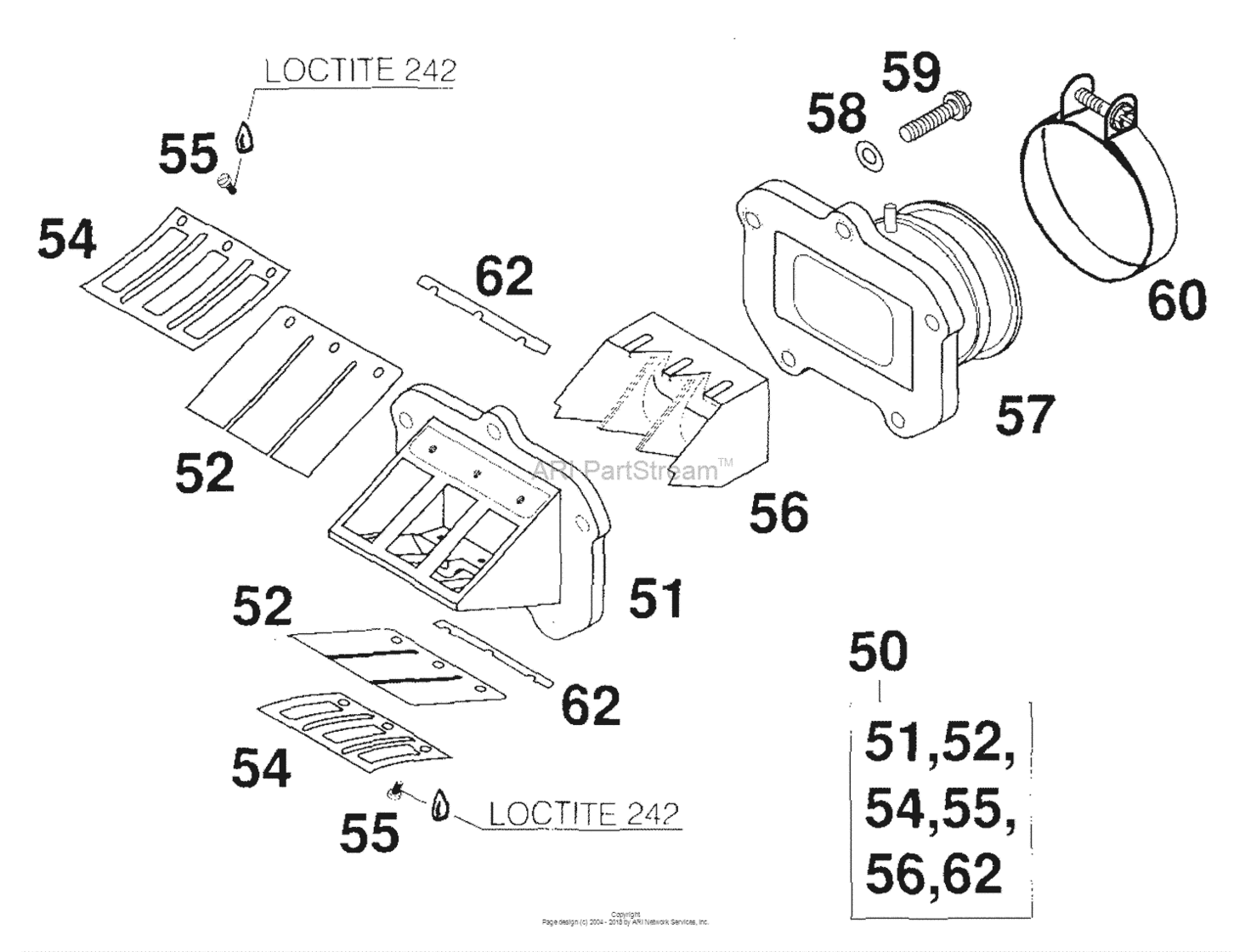

Reed Valve Control Singapore Diagram KTM 200 200 EXC
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
50
|
50
52330051044 Reed valve assy cpl. '98FOR SPOILER 6X11X16X7,5 |
52330051044 |
US $157.40 |
||
|
52
|
52
52330052000 Reed valve carbonFOR SPOILER 6X11X16X7,5 |
52330052000 |
US $38.59 |
||
|
54
|
54
54630053000
Stop plate top
FOR SPOILER 6X11X16X7,5 |
54630053000 |
— | ||
|
55
|
55
0084040083 Cyl.head screw din0084-m 4x8 aFOR SPOILER 6X11X16X7,5 |
0084040083 |
US $0.27 |
||
|
56
|
56
54630054000
Velocity insert
FOR SPOILER 6X11X16X7,5 |
54630054000 |
— | ||
|
57
|
57
54630050100
Intake Flange (200 Exc Gs) '99
FOR SPOILER 6X11X16X7,5 |
54630050100 |
— | ||
|
58
|
58
0137060000
Spring Washer Din0137-B 6
FOR SPOILER 6X11X16X7,5 |
0137060000 |
— | ||
| replacement | |||||
|
58
|
58
0137060003 Spring Washer Din0137-B 6FOR SPOILER 6X11X16X7,5 |
0137060003 |
US $0.43 |
||
|
59
|
59
0015060253
Hh Collar Screw M6X25 Tx30
FOR SPOILER 6X11X16X7,5 |
0015060253 |
— | ||
| replacement | |||||
|
59
|
59
0025060256 Hh collar screw m6x25 tx30FOR SPOILER 6X11X16X7,5 |
0025060256 |
US $2.45 |
||
|
60
|
60
54330061000 Clamp 52/12 gemiFOR SPOILER 6X11X16X7,5 |
54330061000 |
US $7.31 |
||
|
62
|
62
54230056000 Paper stripFOR SPOILER 6X11X16X7,5 |
54230056000 |
US $1.28 |
||
