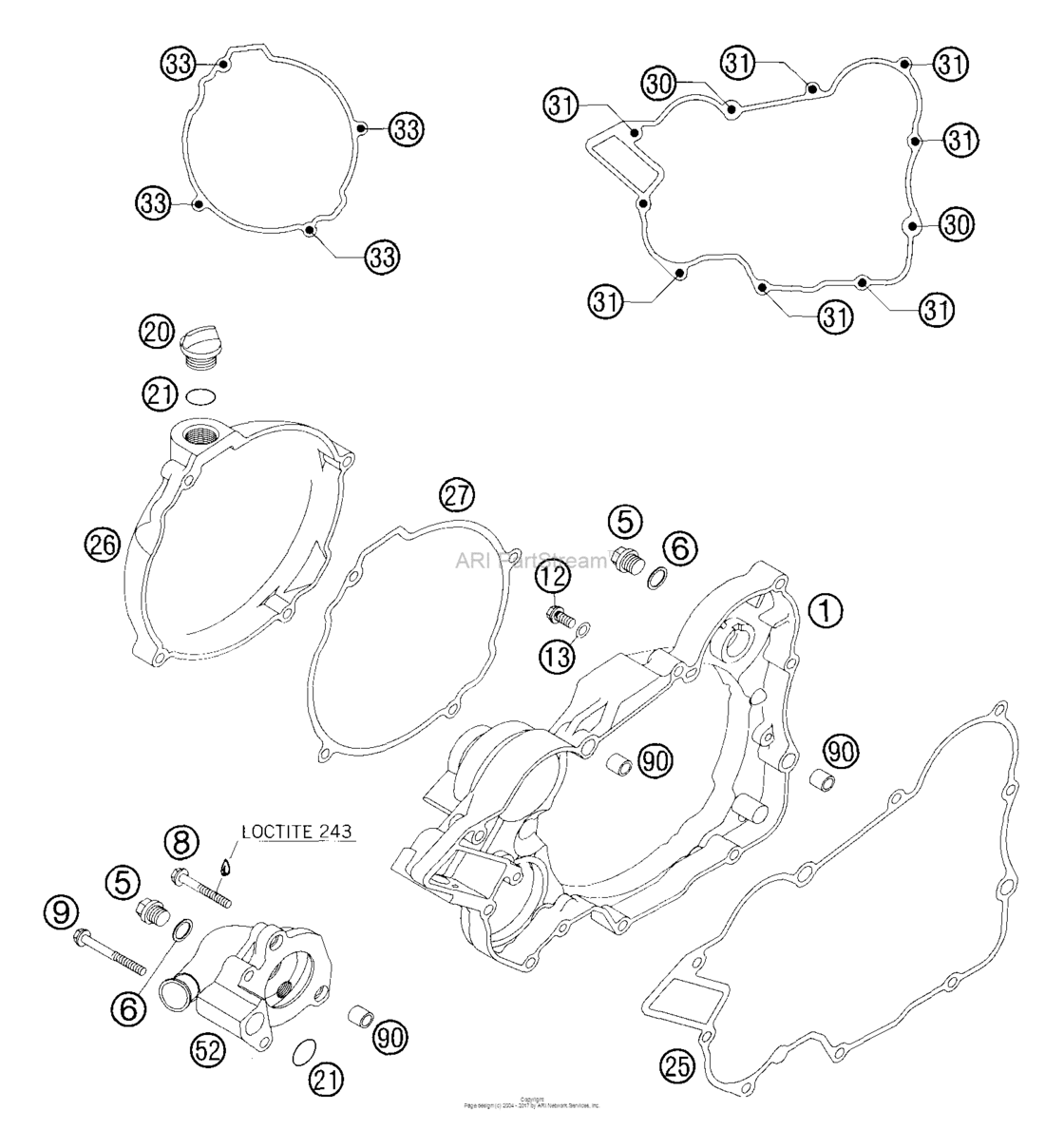

Clutch Cover Diagram KTM 200 200 EXC
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5033000114498
Clutch cover cpl.125/200 02
FOR SPOILER 6X11X16X7,5 |
5033000114498 |
— | ||
| replacement | |||||
|
1
|
1
5033000114415 Clutch cover cpl. 125/200 09FOR SPOILER 6X11X16X7,5 |
5033000114415 |
US $257.33 |
||
|
5
|
5
0910100003 Plug din0910-m 10x1FOR SPOILER 6X11X16X7,5 |
0910100003 |
US $4.39 |
||
|
6
|
6
0603100141 Copper Gasket Din7603-10X14X1FOR SPOILER 6X11X16X7,5 |
0603100141 |
US $2.24 |
||
|
8
|
8
0015060353
Hh collar screw m 6x35 ws=8
FOR SPOILER 6X11X16X7,5 |
0015060353 |
— | ||
| replacement | |||||
|
8
|
8
0025060356 Hh collar screw m6x35 tx30FOR SPOILER 6X11X16X7,5 |
0025060356 |
US $6.15 |
||
|
9
|
9
0015060503
Hh collar screw m 6x50 ws=8
FOR SPOILER 6X11X16X7,5 |
0015060503 |
— | ||
| replacement | |||||
|
9
|
9
0025060506 Hh collar screw m6x50 tx30FOR SPOILER 6X11X16X7,5 |
0025060506 |
US $3.30 |
||
|
12
|
12
0015060123
Hh Collar Screw M 6X12 Ws=8
FOR SPOILER 6X11X16X7,5 |
0015060123 |
— | ||
| replacement | |||||
|
12
|
12
0025060126 Hh collar screw m6x12 tx30FOR SPOILER 6X11X16X7,5 |
0025060126 |
US $3.96 |
||
|
13
|
13
0603061001 Cu-Seal Ring Din7603-6X10X1FOR SPOILER 6X11X16X7,5 |
0603061001 |
US $2.64 |
||
|
20
|
20
58030020000 Plug Cpl. M24X3FOR SPOILER 6X11X16X7,5 |
58030020000 |
US $7.06 |
||
| replacement | |||||
|
20
|
20
58030020100 Plug Cpl. M24X3FOR SPOILER 6X11X16X7,5 |
58030020100 |
US $6.73 |
||
|
21
|
21
0770160030 O-ring 16,00x3,00 nbr 70FOR SPOILER 6X11X16X7,5 |
0770160030 |
US $2.09 |
||
|
25
|
25
50330025000 Clutch cover gasket 0,5mmFOR SPOILER 6X11X16X7,5 |
50330025000 |
US $16.20 |
||
|
26
|
26
5033002600098 Clutch outs.cover 125/200 2001FOR SPOILER 6X11X16X7,5 |
5033002600098 |
US $107.37 |
||
| replacement | |||||
|
26
|
26
5033002610015 Clutch outside coverFOR SPOILER 6X11X16X7,5 |
5033002610015 |
US $87.92 |
||
|
27
|
27
50330027000 Clutch outs.cover gasket 1mmFOR SPOILER 6X11X16X7,5 |
50330027000 |
US $15.37 |
||
|
30
|
30
0015060403
Hh Collar Screw M6X40 Tx30
FOR SPOILER 6X11X16X7,5 |
0015060403 |
— | ||
| replacement | |||||
|
30
|
30
0025060406 Hh collar screw m6x40 tx30FOR SPOILER 6X11X16X7,5 |
0025060406 |
US $2.23 |
||
|
31
|
31
0015060353
Hh collar screw m 6x35 ws=8
FOR SPOILER 6X11X16X7,5 |
0015060353 |
— | ||
| replacement | |||||
|
31
|
31
0025060356 Hh collar screw m6x35 tx30FOR SPOILER 6X11X16X7,5 |
0025060356 |
US $6.15 |
||
|
33
|
33
0015060253
Hh Collar Screw M6X25 Tx30
FOR SPOILER 6X11X16X7,5 |
0015060253 |
— | ||
| replacement | |||||
|
33
|
33
0025060256 Hh collar screw m6x25 tx30FOR SPOILER 6X11X16X7,5 |
0025060256 |
US $2.45 |
||
|
52
|
52
50335052000 Water pump cover 125/200 '98FOR SPOILER 6X11X16X7,5 |
50335052000 |
US $110.42 |
||
| replacement | |||||
|
52
|
52
50335052033 Waterpump Cover 125/200 98FOR SPOILER 6X11X16X7,5 |
50335052033 |
US $86.36 |
||
|
90
|
90
49030090000 Dowel 9,8 x 7 x 10FOR SPOILER 6X11X16X7,5 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
90
|
90
49030090100 Dowel 9,8 X7X10FOR SPOILER 6X11X16X7,5 |
49030090100 |
US $2.60 |
||
