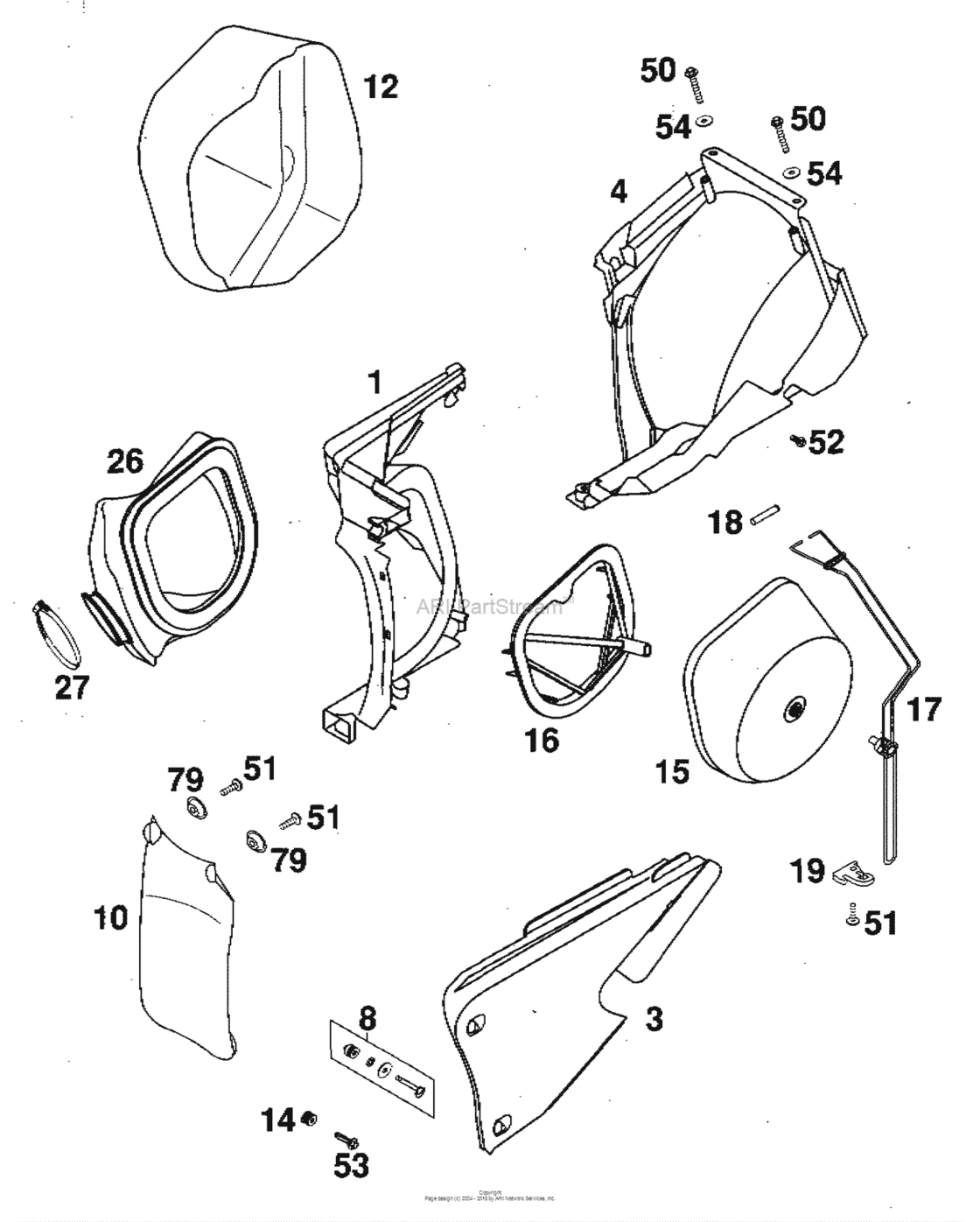

Air Filter Box Diagram KTM 200 200 Jackpinner
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 Jackpinner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50306001051
Filter wall cpl. 125-380 '98
98 |
50306001051 |
— | ||
|
3
|
3
50306003044
Filter box cover cpl. 2-st '98
98 |
50306003044 |
— | ||
|
4
|
4
50306001052
Filter box part rear '98
98 |
50306001052 |
— | ||
|
8
|
8
50306008044 Quick release cpl. '9898 |
50306008044 |
US $22.47 |
||
|
10
|
10
50306010000 Fender for filter box '9898 |
50306010000 |
US $19.58 |
||
|
12
|
12
50306012000
Throttle cap 125-380egs cpl.98
98 |
50306012000 |
— | ||
|
14
|
14
50306001055 Press in nut filter box m6(As Required) |
50306001055 |
US $9.06 |
||
|
15
|
15
50306015000
Air Filter Racing 2001
98 |
50306015000 |
— | ||
| replacements | |||||
|
15
|
15
59006015000 Air filter racing 200198 |
59006015000 |
US $40.80 |
||
|
15
|
15
54806016000 Filter carrier 2-stroke 0498 |
54806016000 |
US $33.98 |
||
|
16
|
16
50306016000 Filter Carrier 2-Stroke 0498 |
50306016000 |
US $21.01 |
||
| replacement | |||||
|
16
|
16
54806016000 Filter carrier 2-stroke 0498 |
54806016000 |
US $33.98 |
||
|
17
|
17
50306017000 Filter support cpl.2-stroke'9898 |
50306017000 |
US $28.54 |
||
|
18
|
18
50306018000 Filter support bush 125-380'9898 |
50306018000 |
US $7.33 |
||
|
19
|
19
50306019000
Fasten. device filter support
98 |
50306019000 |
— | ||
|
26
|
26
54706026000 Carbu.connect.boot 125-380 '9898 |
54706026000 |
US $74.66 |
||
|
27
|
27
51006027000 Hose Clamp 50-70Mm98 |
51006027000 |
US $5.66 |
||
|
50
|
50
0017060403 Special screw t60 6x40 ws=698 |
0017060403 |
US $1.19 |
||
|
51
|
51
0017060203
Screw For Plastic K60X20 Sw6
98 |
0017060203 |
— | ||
| replacement | |||||
|
51
|
51
0017060205 Screw For Plastic K60X20 Sw698 |
0017060205 |
US $2.24 |
||
|
52
|
52
0009050103
Special screw m 5,0x10
98 |
0009050103 |
— | ||
| replacement | |||||
|
52
|
52
0009050106 Ejot Spiral Screw Sf M5X10-K98 |
0009050106 |
US $2.60 |
||
|
53
|
53
0014060253 Hh collar screw m 6x25 ws=8(As Required) SW=8 |
0014060253 |
US $1.19 |
||
|
54
|
54
0125060003 Washer Din0125-A 6,4(As Required) SW=8 |
0125060003 |
US $0.37 |
||
|
79
|
79
72210079000 Bucket(As Required) SW=8 |
72210079000 |
US $2.72 |
||
