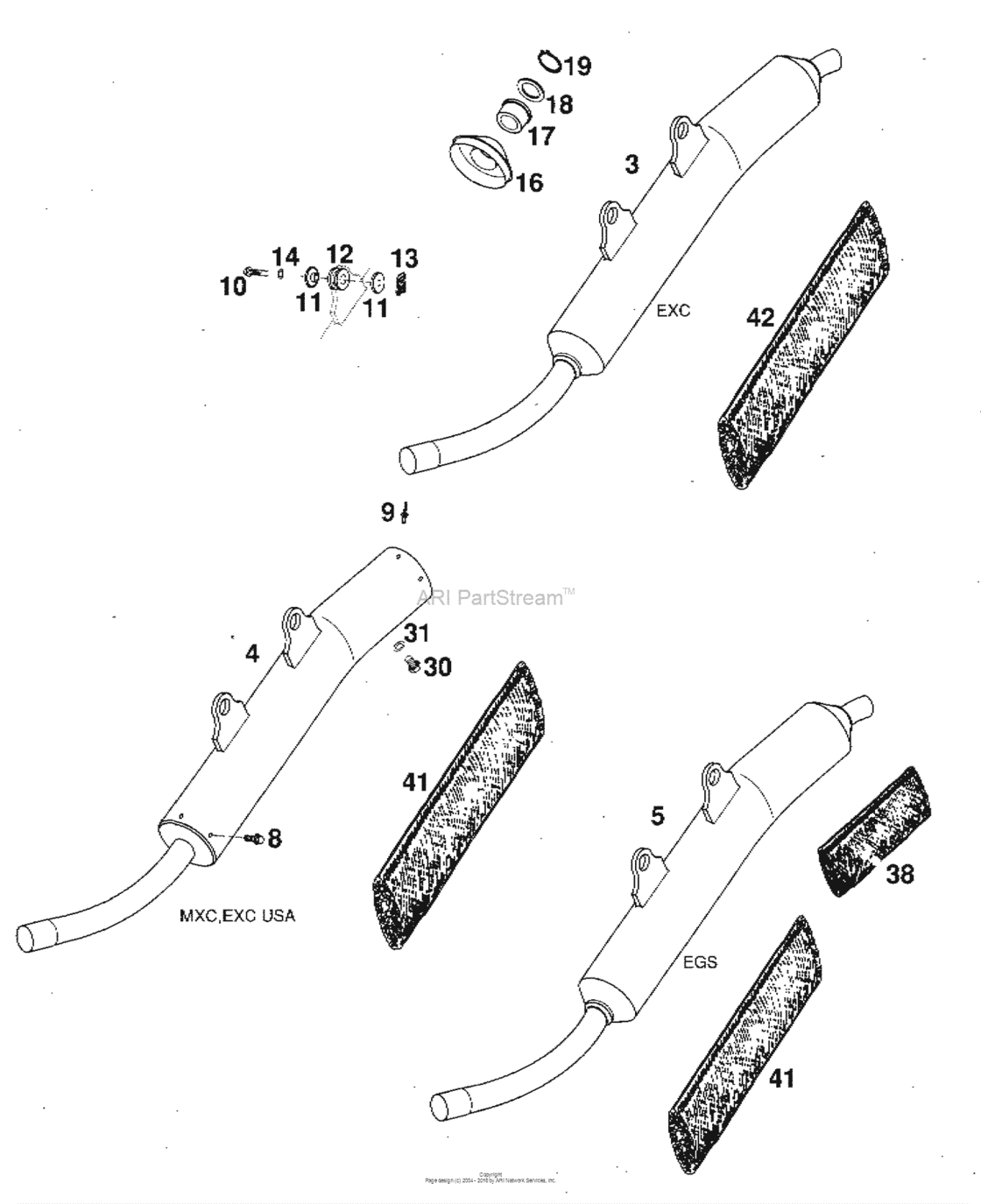

Exhaust Silencer Diagram KTM 200 200 Jackpinner
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 Jackpinner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
52305081000
Ex.silencer 200/250/300 exc'98
98 |
52305081000 |
— | ||
|
4
|
4
52305082000
Ex.sil.200/250/300 Mxc/exc '00
98 |
52305082000 |
— | ||
| replacement | |||||
|
4
|
4
52305082100 Ex.sil.200/250/300 mxc/exc '0098 |
52305082100 |
US $452.90 |
||
|
5
|
5
52305083000
Ex.silencer 200/250/300 Egs'98 In.ktm Egs1In
98 |
52305083000 |
— | ||
|
8
|
8
0009050103
Special screw m 5,0x10
98 |
0009050103 |
— | ||
| replacement | |||||
|
8
|
8
0009050106 Ejot Spiral Screw Sf M5X10-K98 |
0009050106 |
US $2.60 |
||
|
9
|
9
0011481030
Dummy Rivet 4,8X10,0 Niro
98 |
0011481030 |
— | ||
| replacement | |||||
|
9
|
9
0011481002 Dummy Rivet 4,8X10,0 Niro98 |
0011481002 |
US $1.96 |
||
|
10
|
10
0015060303
Hh Collar Screw M6X30 Tx30
WS=8 |
0015060303 |
— | ||
| replacement | |||||
|
10
|
10
0025060306 Hh collar screw m6x30 tx30WS=8 |
0025060306 |
US $3.96 |
||
|
11
|
11
54605069000
Bushing 7,5x12x28x7,8 '96
WS=8 |
54605069000 |
— | ||
| replacement | |||||
|
11
|
11
77205169000 Bushing 7.5X12X28X8.3 11WS=8 |
77205169000 |
US $7.82 |
||
|
12
|
12
54605068000
Exhaust bracket rubber black
WS=8 |
54605068000 |
— | ||
| replacement | |||||
|
12
|
12
77205068000 Damp. Compon. BlackWS=8 |
77205068000 |
US $8.43 |
||
|
13
|
13
54603048100 Range Change Metal Nut M6WS=8 |
54603048100 |
US $5.27 |
||
|
14
|
14
0137060000
Spring Washer Din0137-B 6
WS=8 |
0137060000 |
— | ||
| replacement | |||||
|
14
|
14
0137060003 Spring Washer Din0137-B 6WS=8 |
0137060003 |
US $0.43 |
||
|
16
|
16
54605379549
Silencer End Ca
WS=8 |
54605379549 |
— | ||
| replacement | |||||
|
16
|
16
54705179070
Silencer end cap alu
WS=8 |
54705179070 |
— | ||
|
16
|
16
54705179070
Silencer end cap alu
(As Reuired) |
54705179070 |
— | ||
|
17
|
17
54605379028 Seal ring viton d=28mm(As Reuired) |
54605379028 |
US $37.52 |
||
|
18
|
18
54605079047 Washer d=28 mm(As Reuired) |
54605079047 |
US $5.44 |
||
|
19
|
19
0471280151 Circlip Din0471-28X1,5(As Reuired) |
0471280151 |
US $7.12 |
||
|
30
|
30
0910100003 Plug din0910-m 10x1(As Reuired) |
0910100003 |
US $4.39 |
||
|
31
|
31
58038032010 Copper Gasket Din7603-10X14X1(As Reuired) |
58038032010 |
US $1.77 |
||
| replacement | |||||
|
31
|
31
0603100141 Copper Gasket Din7603-10X14X1(As Reuired) |
0603100141 |
US $2.24 |
||
|
38
|
38
58005078120 Stuffing yarn 120 gram(As Reuired) |
58005078120 |
US $54.49 |
||
|
41
|
41
58005078340 Stuffing yarn 340 gram(As Reuired) |
58005078340 |
US $97.12 |
||
|
42
|
42
58005078410
Stuffing Yarn 410 Gramm 200/250/300/380 Exc Europe
(As Reuired) |
58005078410 |
— | ||
