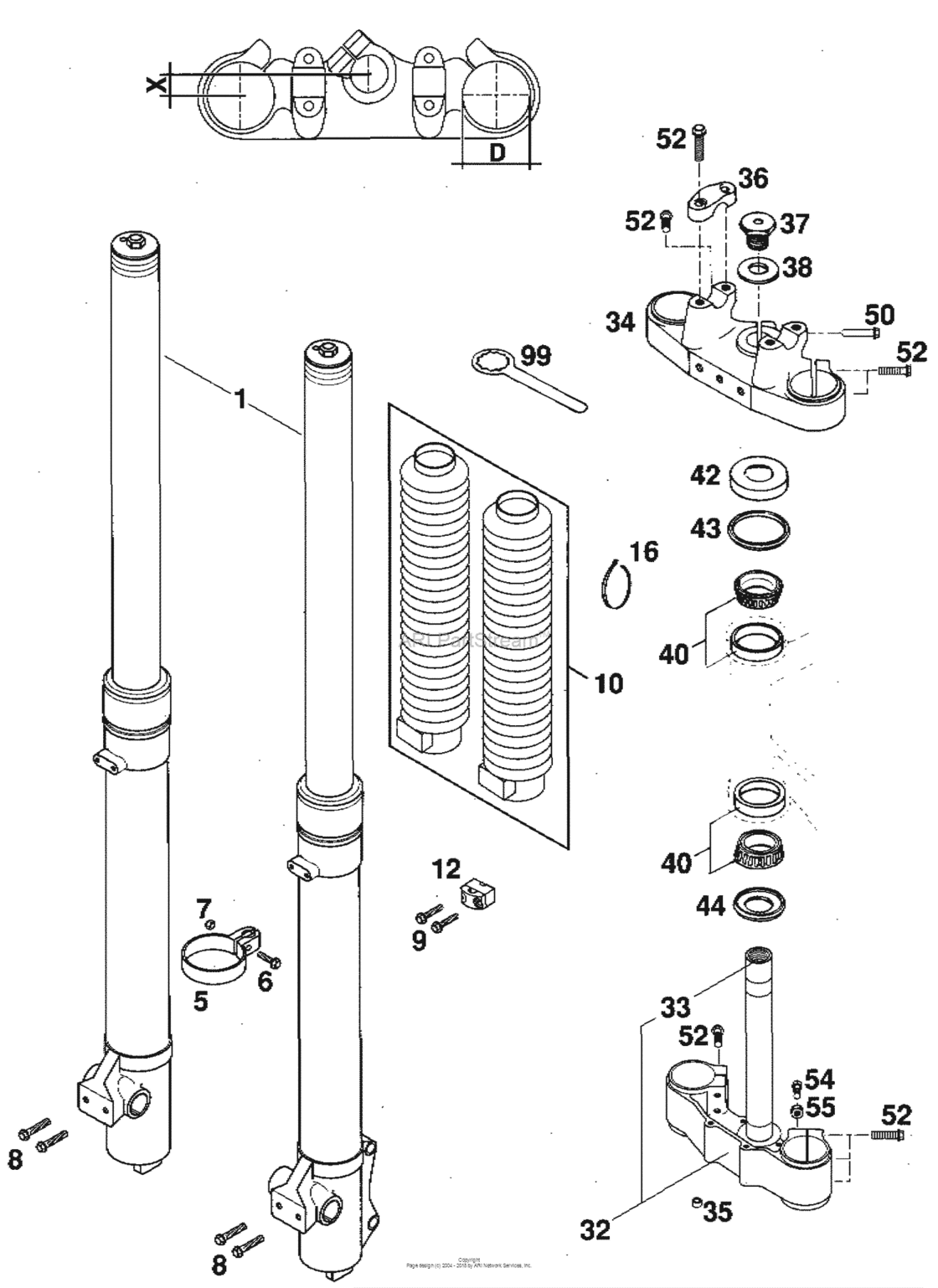

Front Fork Diagram KTM 200 200 Jackpinner
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 Jackpinner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
44011076200 Cable tie 200/3,6mm black(As Required) |
44011076200 |
US $0.39 |
||
|
1
|
1
7124741
Fork Legs Cpl. Marz. '98 125 Sx
98 |
7124741 |
— | ||
|
1
|
1
7124740
Fork Legs Cpl. In.82In. Marz. '98 125 Exc,egs
98 |
7124740 |
— | ||
|
1
|
1
7124742
Fork Legs Cpl. Marz. '98 200 Mxc,exc,egs
98 |
7124742 |
— | ||
|
5
|
5
50301070000 Sp.cable Guide Marz.50,wp50'9797 |
50301070000 |
US $3.11 |
||
|
6
|
6
0015050203
Hh Collar Screw M5X20 Tx30
WS=8 |
0015050203 |
— | ||
| replacement | |||||
|
6
|
6
0025050206 Hh collar screw m5x20 tx30WS=8 |
0025050206 |
US $1.33 |
||
|
7
|
7
0985050003 Self Locking Nut Din0985-M 5WS=8 |
0985050003 |
US $3.26 |
||
|
8
|
8
7520196 H h collar screw m 6x25 ws=10WS=10 |
7520196 |
US $2.28 |
||
|
9
|
9
0015050253 Hh collar screw m 5x25 ws=8WS=8 |
0015050253 |
US $1.58 |
||
|
9
|
9
0015050303 Hh collar screw m 5x30 ws=8(As Required); WS=8 |
0015050303 |
US $1.22 |
||
|
10
|
10
951082
Garn.protectors Black 45 Mm
(As Required); WS=8 |
951082 |
— | ||
|
12
|
12
54601085000 Brake hose clamp marzocchi'9595 |
54601085000 |
US $3.35 |
||
|
16
|
16
44011076305 Cable tie 300/4,8mm black(As Required) |
44011076305 |
US $0.36 |
||
|
32
|
32
52301032016
Bottom tripple clamp 16mm/50mm
(As Required) |
52301032016 |
— | ||
|
33
|
33
50101033100 Fork Tube L=24491 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=24491 |
54801133000 |
US $78.15 |
||
|
34
|
34
52301034016
Top triple clamp x=16mm/45mm
91 |
52301034016 |
— | ||
|
35
|
35
50301089000 Spacer bushing 6x10x591 |
50301089000 |
US $1.58 |
||
|
36
|
36
54601038000
Handlebar Clamp
95 |
54601038000 |
— | ||
| replacement | |||||
|
36
|
36
50301038000 Handlebar clamp d=22mm 200195 |
50301038000 |
US $21.54 |
||
|
37
|
37
56401043000 Hh screw m20x1,595 |
56401043000 |
US $25.01 |
||
| replacement | |||||
|
37
|
37
50301036000 Steer.head screw m20x1,5 ws=2795 |
50301036000 |
US $12.65 |
||
|
38
|
38
56401044000
Washer 21x38x3
95 |
56401044000 |
— | ||
|
40
|
40
54201081000 Tapered Roller Bearing Cpl. 0695 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
40
|
40
54201081100 Tapered Roller Bearing Cpl. 0695 |
54201081100 |
US $53.18 |
||
|
42
|
42
54201086000 Steering Head Cover95 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
42
|
42
78101086000 Steering Head Cover95 |
78101086000 |
US $5.08 |
||
|
43
|
43
54601184000 Stearing head gasket top95 |
54601184000 |
US $7.74 |
||
|
44
|
44
54601084100 O-Ring Support W. Sealing Lip95 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
44
|
44
77701084000 O-Ring Support W. Sealing Lip95 |
77701084000 |
US $21.15 |
||
|
50
|
50
0015080403
Hh Collar Screw M8X40 Tx40
WS=10 |
0015080403 |
— | ||
| replacement | |||||
|
50
|
50
0025080406 Hh collar screw m8x40 tx40WS=10 |
0025080406 |
US $2.62 |
||
|
52
|
52
0015080303
Hh Collar Screw M8X30 Tx40
WS=10 |
0015080303 |
— | ||
| replacement | |||||
|
52
|
52
0025080306 Hh collar screw m8x30 tx40WS=10 |
0025080306 |
US $3.89 |
||
|
54
|
54
0933080253 Hh Screw Din0933-M 8X25WS=10 |
0933080253 |
US $1.24 |
||
|
55
|
55
0934080003 Hexagon Nut Din0934-M 8WS=10 |
0934080003 |
US $3.26 |
||
|
99
|
99
54212035000
Ring wrench ws=32
WS=32 |
54212035000 |
— | ||
