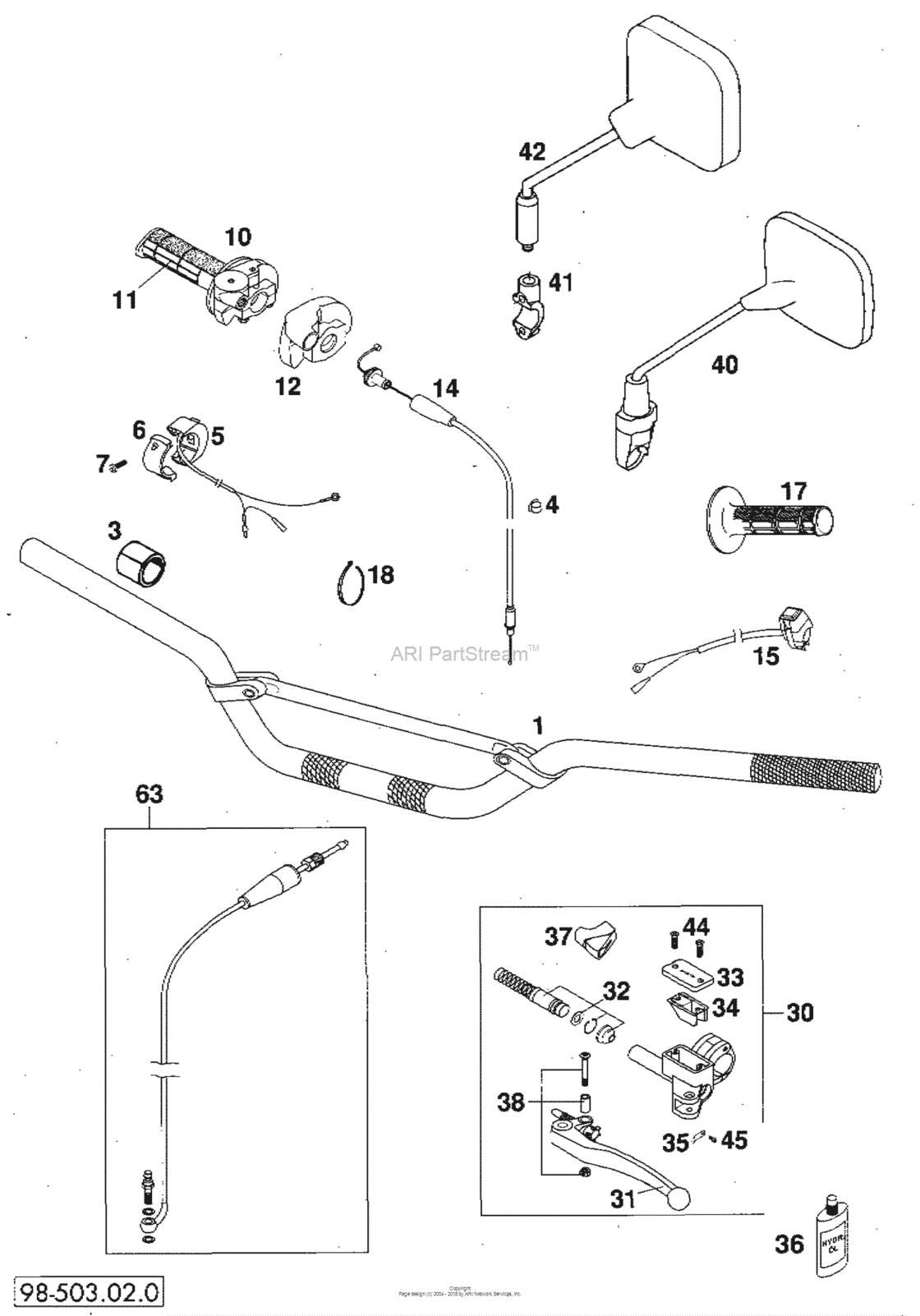

Handlebar, Controls Diagram KTM 200 200 Jackpinner
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 Jackpinner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58012140000 Rear mirror r/s(As Required) |
58012140000 |
US $42.67 |
||
|
1
|
1
50202001000
Alu-handlebar '95
95 |
50202001000 |
— | ||
|
3
|
3
50202010000
Spacer bushing 22x28x22pvc
(As Required) |
50202010000 |
— | ||
|
4
|
4
57013072000 Wiring holder 12mm(As Required) |
57013072000 |
US $3.50 |
||
|
5
|
5
50311074000 Engine stop switch cev(As Required) |
50311074000 |
US $63.97 |
||
|
6
|
6
50311074050 Clamp engine stop switch(As Required) |
50311074050 |
US $3.26 |
||
|
7
|
7
0985040153 Flat head screw din7985-m 4x15(As Required) |
0985040153 |
US $1.92 |
||
| replacement | |||||
|
7
|
7
0985040163 Flat Head Screw Din7985-M 4X16(As Required) |
0985040163 |
US $1.79 |
||
|
10
|
10
50302010000 Throttle Grip Cpl. 2St. 1397 |
50302010000 |
US $96.36 |
||
| replacement | |||||
|
10
|
10
51502010200 Throttle Grip Cpl. 2St. 1397 |
51502010200 |
US $67.97 |
||
|
11
|
11
50202003000
Gripp Set Half Waffle
97 |
50202003000 |
— | ||
| replacement | |||||
|
11
|
11
50202021000 Gripp Set Half Waffle97 |
50202021000 |
US $23.31 |
||
|
12
|
12
50302020000 Protection Cover '9797 |
50302020000 |
US $16.75 |
||
|
14
|
14
50302091000
Throttle c. 125-380 dom./keih.
97 |
50302091000 |
— | ||
| replacement | |||||
|
14
|
14
51502091200 Throttle Cable 2-St. 201497 |
51502091200 |
US $39.20 |
||
|
15
|
15
50311089000
Short Circuit Button 02
97 |
50311089000 |
— | ||
| replacement | |||||
|
15
|
15
50311089200 Short Circuit Button 0297 |
50311089200 |
US $50.97 |
||
|
17
|
17
50202052000
Gripp Set Half Waffle
95 |
50202052000 |
— | ||
| replacement | |||||
|
17
|
17
50202021000 Gripp Set Half Waffle95 |
50202021000 |
US $23.31 |
||
|
18
|
18
44011276200
Plastic Band
95 |
44011276200 |
— | ||
|
30
|
30
50302030000
Master cyl. clutch 125-200'98
95 |
50302030000 |
— | ||
|
31
|
31
50302031000 Clutch Lever Long Cpl. 200398 |
50302031000 |
US $51.27 |
||
| replacement | |||||
|
31
|
31
59002031000 Clutch Lever Long Cpl. 200398 |
59002031000 |
US $42.99 |
||
|
32
|
32
50302032000 Rep.set piston magura d=10.598 |
50302032000 |
US $116.60 |
||
|
33
|
33
50302033000 Cover for hydr. clutch '9898 |
50302033000 |
US $28.61 |
||
|
34
|
34
50302034000 Rubber for reservoir '9898 |
50302034000 |
US $16.18 |
||
|
35
|
35
50302035000
Spring plate for lever '98
98 |
50302035000 |
— | ||
|
36
|
36
50302036000
Oil For Hyd. Clutch 100 Ml
98 |
50302036000 |
— | ||
| replacement | |||||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 Ml98 |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037000 Protect.cap For Lever Perch'9898 |
50302037000 |
US $20.74 |
||
|
38
|
38
50302038000 Lever Screw Cpl. 125-200 '9898 |
50302038000 |
US $20.35 |
||
|
40
|
40
50312040000
Mirror L/s 125-380 '98
98 |
50312040000 |
— | ||
|
41
|
41
58302044000 Clamp mirrow m10x1,25(As Required) |
58302044000 |
US $11.41 |
||
|
42
|
42
58012040000 Rear mirror l/s(As Required) |
58012040000 |
US $41.60 |
||
|
44
|
44
0965040123 Flat head screw din0965-m 4x12(As Required) |
0965040123 |
US $0.56 |
||
|
45
|
45
0984030063
Ah screw din7984-m 3x 6
(As Required) |
0984030063 |
— | ||
|
63
|
63
50332063000 Pipe Kit For Hydr. Clutch '9898 |
50332063000 |
US $107.20 |
||
