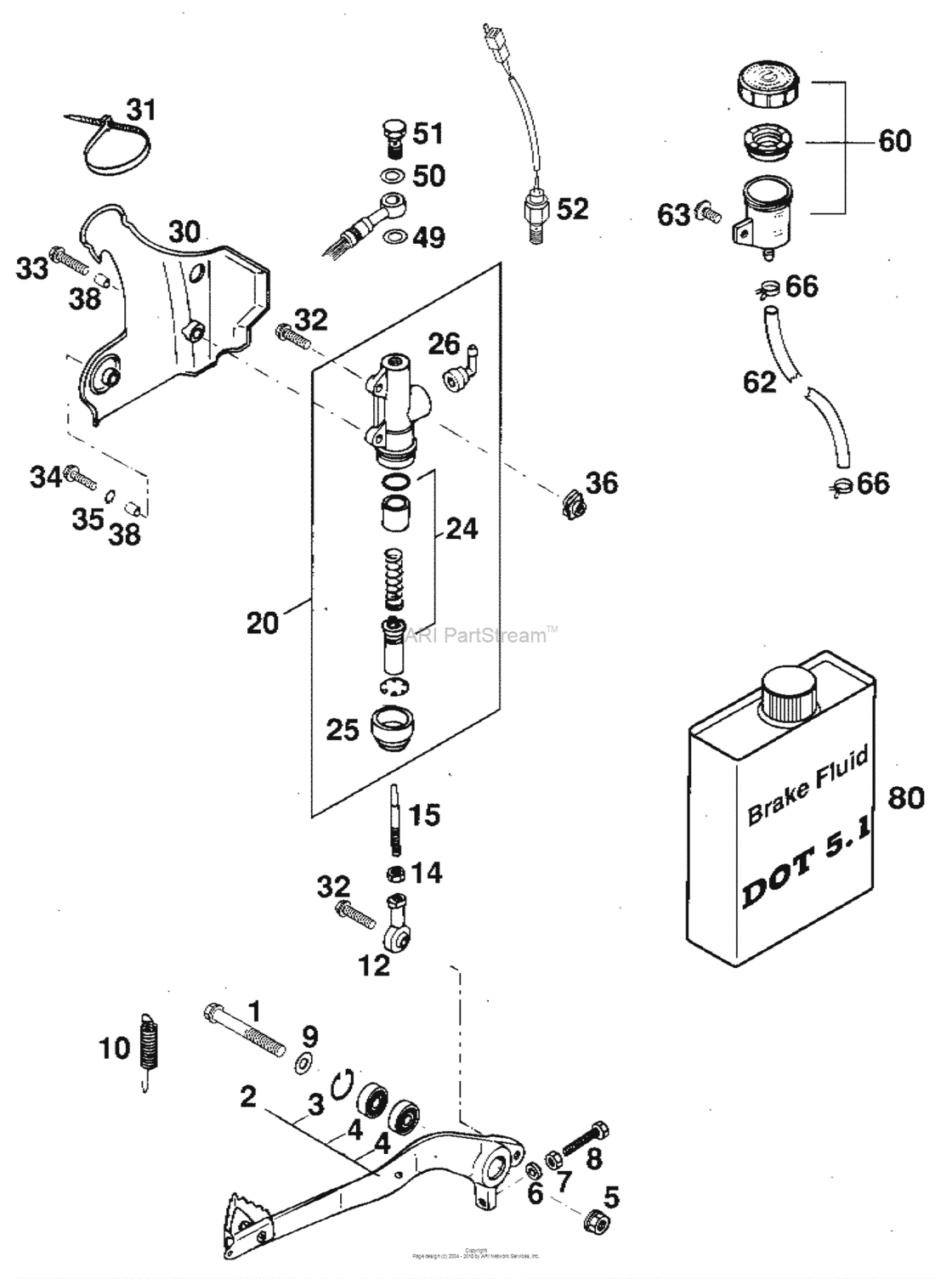

Rear Brake Control Diagram KTM 200 200 Jackpinner
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 Jackpinner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0015080603 Hh collar screw m 8x60 ws=10SW=10 |
0015080603 |
US $2.09 |
||
|
2
|
2
54603060144
Foot brake lever cpl. 250'91
SW=10 |
54603060144 |
— | ||
|
3
|
3
0472022150
Circlip din0472-22x1,5
SW=10 |
0472022150 |
— | ||
|
4
|
4
0625006087 Grooved Ball Bear. 608 2Rs C3SW=10 |
0625006087 |
US $19.19 |
||
|
5
|
5
54310086000
Self Locking Nut M8 10.9
SW=10 |
54310086000 |
— | ||
| replacement | |||||
|
5
|
5
54310086200 Self Locking Nut M8 10.9SW=10 |
54310086200 |
US $1.56 |
||
|
6
|
6
12011016000 Washer 6 x 12 x 3SW=10 |
12011016000 |
US $0.53 |
||
|
7
|
7
0934060003 Hexagon Nut Din0934-M 6SW=10 |
0934060003 |
US $0.43 |
||
|
8
|
8
0933060353 Hh screw din0933-m 6x35SW=10 |
0933060353 |
US $0.54 |
||
|
9
|
9
0125080003 Washer din0125-a 8,4SW=10 |
0125080003 |
US $2.02 |
||
|
10
|
10
54603062000
Return spring for brake lever
SW=10 |
54603062000 |
— | ||
| replacement | |||||
|
10
|
10
54603062100 Return Spring For Brake LeverSW=10 |
54603062100 |
US $7.14 |
||
|
12
|
12
54603069000 Swivel head m6 foot brake lev.SW=10 |
54603069000 |
US $37.83 |
||
|
14
|
14
0934060003 Hexagon Nut Din0934-M 6SW=10 |
0934060003 |
US $0.43 |
||
|
15
|
15
54603068000 Pressure rod alu 250 '9090 |
54603068000 |
US $5.22 |
||
|
20
|
20
54513101044 Main Brake Cylinder '8989 |
54513101044 |
US $118.37 |
||
|
24
|
24
54513150000 Repair kit piston 13mm89 |
54513150000 |
US $40.17 |
||
|
25
|
25
54513151000 Rubber sleeve89 |
54513151000 |
US $19.06 |
||
|
26
|
26
54513155000 Angle piece89 |
54513155000 |
US $15.90 |
||
|
30
|
30
54613038000
Brakecyl.protect.125-380 2000
90 |
54613038000 |
— | ||
| replacement | |||||
|
30
|
30
54613038100
Brakecyl.protect.125-380 2000
90 |
54613038100 |
— | ||
|
31
|
31
44011076200 Cable tie 200/3,6mm black90 |
44011076200 |
US $0.39 |
||
|
32
|
32
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
32
|
32
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
33
|
33
0015060253
Hh Collar Screw M6X25 Tx30
WS=8 |
0015060253 |
— | ||
| replacement | |||||
|
33
|
33
0025060256 Hh collar screw m6x25 tx30WS=8 |
0025060256 |
US $2.45 |
||
|
34
|
34
0015050203
Hh Collar Screw M5X20 Tx30
WS=8 |
0015050203 |
— | ||
| replacement | |||||
|
34
|
34
0025050206 Hh collar screw m5x20 tx30WS=8 |
0025050206 |
US $1.33 |
||
|
35
|
35
50233041000 Pair of washers m 6 nordlockWS=8 |
50233041000 |
US $3.25 |
||
|
36
|
36
50235033300
Snap-nut holder m6 kp142
WS=8 |
50235033300 |
— | ||
| replacement | |||||
|
36
|
36
54603048100 Range Change Metal Nut M6WS=8 |
54603048100 |
US $5.27 |
||
|
38
|
38
58011039000 Spacer bushing 6,5 x 8 x 7WS=8 |
58011039000 |
US $1.79 |
||
|
49
|
49
42013026000 Cu-seal ring din7603-10x16x1,5WS=8 |
42013026000 |
US $2.24 |
||
|
50
|
50
42013226000 Cu-Seal Ring Din7603-10X16X1WS=8 |
42013226000 |
US $4.10 |
||
|
51
|
51
50213025000 Hollow Screw M10X1X19WS=8 |
50213025000 |
US $5.39 |
||
|
52
|
52
50311051100 Brake Light Switch Rear '9898 |
50311051100 |
US $73.85 |
||
|
60
|
60
54513030044 Brake Fluid Reservoir '8989 |
54513030044 |
US $17.56 |
||
|
62
|
62
58007016101 Hose For Reservoir 6X1,589 |
58007016101 |
US $17.49 |
||
|
63
|
63
0014060103
Hh Collar Screw M6X10 Tx30
WS=8 |
0014060103 |
— | ||
| replacement | |||||
|
63
|
63
0024060106 Hh collar screw m6x10 tx30WS=8 |
0024060106 |
US $4.35 |
||
|
66
|
66
58007017000 Ydnac clamp 10101 (9mm)WS=8 |
58007017000 |
US $1.84 |
||
|
80
|
80
06054
Brake Fluid
WS=8 |
06054 |
— | ||
