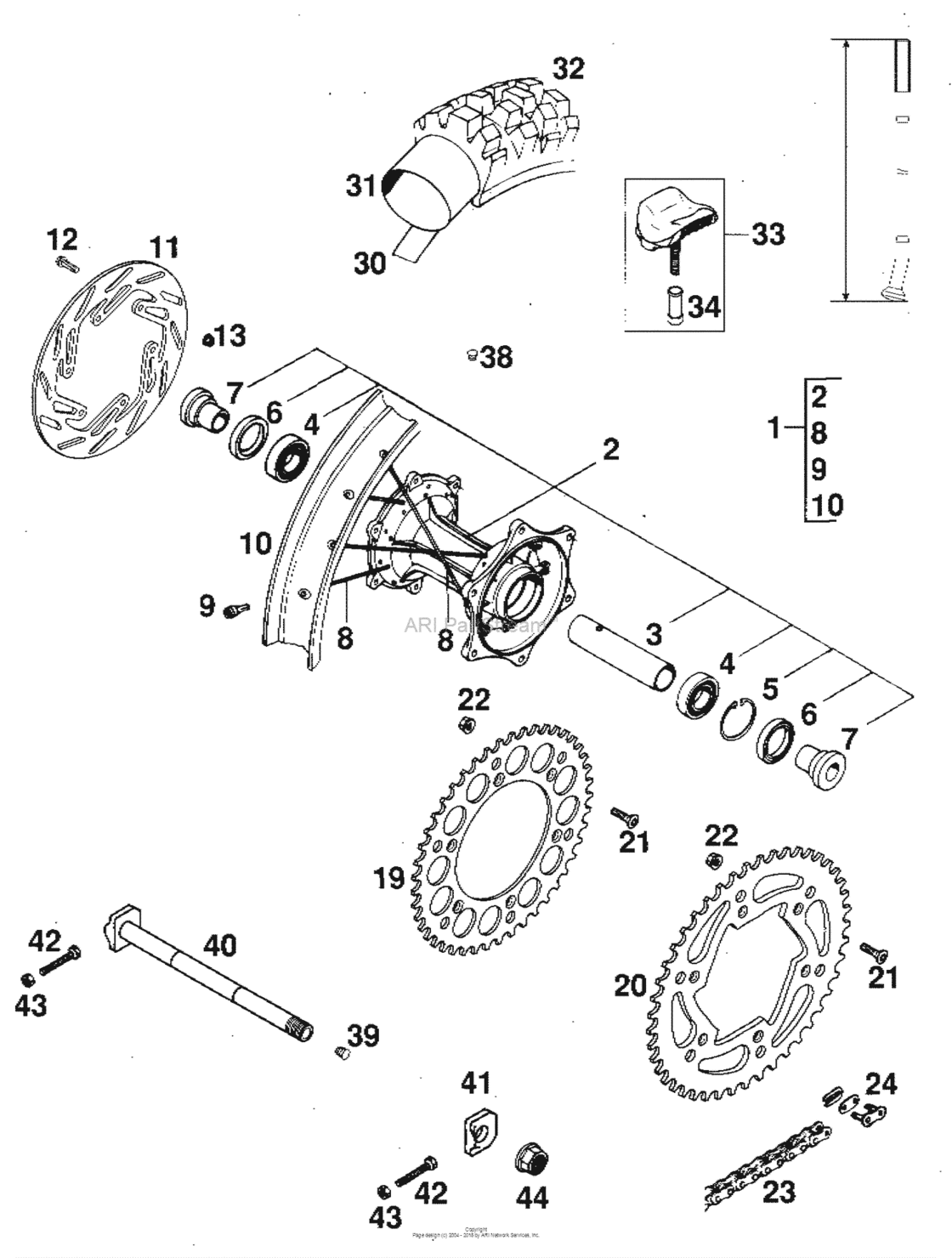

Rear Wheel Diagram KTM 200 200 Jackpinner
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 Jackpinner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5461000104490
Rear Wheel Cpl. 2,15X19 Excel
WS=8 |
5461000104490 |
— | ||
| replacement | |||||
|
1
|
1
8001000114491 REAR WHEEL CPL. 2,15X19" EXCELWS=8 |
8001000114491 |
US $805.58 |
||
|
1
|
1
50310001044 Rearwheel Cpl.2.15X18Did 200098 |
50310001044 |
US $604.64 |
||
| replacement | |||||
|
1
|
1
50310001244
Rearwheel cpl.2.15x18"did 2000
98 |
50310001244 |
— | ||
|
2
|
2
5461001004490
Rear Wheel Hub Kpl
98 |
5461001004490 |
— | ||
| replacement | |||||
|
2
|
2
26510010144 Rear hub98 |
26510010144 |
US $396.81 |
||
|
3
|
3
56510011000
Bearing Distance Tube 121,5Mm
98 |
56510011000 |
— | ||
| replacement | |||||
|
3
|
3
77710011000 Bearing Distance Tube 121,5Mm98 |
77710011000 |
US $19.06 |
||
|
4
|
4
0625060058 Gr.ball bear.6005 ddu2cg23s6nm98 |
0625060058 |
US $23.17 |
||
|
5
|
5
0472047175 Circlip Din0472-47X1,7598 |
0472047175 |
US $3.89 |
||
|
6
|
6
0760324772
Seal
98 |
0760324772 |
— | ||
|
7
|
7
54610016000
Bushing For Hub 08
98 |
54610016000 |
— | ||
| replacement | |||||
|
7
|
7
78010016000 Bushing for hub 0898 |
78010016000 |
US $29.68 |
||
|
8
|
8
58310071211
Spoke M5X207-10G 19 Dde
98 |
58310071211 |
— | ||
| replacement | |||||
|
8
|
8
50310071207 Spoke M5X207-10G 19 Dde98 |
50310071207 |
US $4.15 |
||
|
8
|
8
58310071200 Spoke M5X197-10G 18 Dde98 |
58310071200 |
US $3.32 |
||
| replacement | |||||
|
8
|
8
50310071197 Spoke M5X197-10G 18 Dde98 |
50310071197 |
US $4.71 |
||
|
9
|
9
56509072000
Spoke Sipple Quadrax M5
Not Available
98 |
56509072000 |
— | ||
| replacement | |||||
|
9
|
9
60310072000
SPOKE NIPPLE QUADRAX M5
98 |
60310072000 |
— | ||
|
10
|
10
54610070100 Rear Rim 2,15X19 Excel Al498 |
54610070100 |
US $348.42 |
||
|
10
|
10
54610070300 Rear rim 2,15x18" did98 |
54610070300 |
US $273.48 |
||
|
11
|
11
54610060200 Brake Disc Rear D=220Mm 200098 |
54610060200 |
US $162.10 |
||
| replacement | |||||
|
11
|
11
50310060000 Brake Disc Rear D=220Mm 200098 |
50310060000 |
US $139.01 |
||
|
12
|
12
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
12
|
12
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
13
|
13
56509064000 Self Locking Nut M6 10.9WS=8 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
13
|
13
56509064100 Self Locking Nut M6 10.9WS=8 |
56509064100 |
US $1.04 |
||
|
19
|
19
58310051038 Rear Sprocket 38-T(As Required) |
58310051038 |
US $87.19 |
||
|
19
|
19
58310151040 Rear Sprocket 40-T(As Required) |
58310151040 |
US $87.19 |
||
|
19
|
19
58310051042 Rear Sprocket 42-T(As Required) |
58310051042 |
US $87.19 |
||
|
19
|
19
58310151045
Rear Sprocket 45-T
(As Required) |
58310151045 |
— | ||
| replacement | |||||
|
19
|
19
7771015104501 New Genuine Part(As Required) |
7771015104501 |
US $54.04 |
||
|
20
|
20
58310151048 Rear Sprocket 48-T(As Required) |
58310151048 |
US $87.19 |
||
|
20
|
20
58310151050 Rear Sprocket 50-T(As Required) |
58310151050 |
US $87.19 |
||
|
20
|
20
58310151052 Rear Sprocket 52-T(As Required) |
58310151052 |
US $84 |
||
| replacement | |||||
|
20
|
20
7771015105201 Rear Sprocket 52-T(As Required) |
7771015105201 |
US $54.04 |
||
|
21
|
21
54510052000
Counter-Sunk Screw Isa45 M8X26
(As Required) |
54510052000 |
— | ||
| replacement | |||||
|
21
|
21
0019080266S Counter-sunk screw isa45 m8x26(As Required) |
0019080266S |
US $2.23 |
||
|
22
|
22
54310086000
Self Locking Nut M8 10.9
(As Required) |
54310086000 |
— | ||
| replacement | |||||
|
22
|
22
54310086200 Self Locking Nut M8 10.9(As Required) |
54310086200 |
US $1.56 |
||
|
23
|
23
50010065000 Chain 5/8X1/4 Mx(As Required) |
50010065000 |
US $115.86 |
||
| replacement | |||||
|
23
|
23
50310165118 Chain 5/8X1/4 Mx(As Required) |
50310165118 |
US $89.56 |
||
|
23
|
23
50010065100 Superseded By 78010167118(As Required) |
50010065100 |
US $168.30 |
||
| replacement | |||||
|
23
|
23
50310800118
Superseded By 78010167118
(As Required) |
50310800118 |
— | ||
|
23
|
23
50010065001
Chain 5/8X1/4 /m
(As Required) |
50010065001 |
— | ||
|
23
|
23
50010065101
Chain /m
(As Required) |
50010065101 |
— | ||
|
24
|
24
50010066000 Connecting Link F. 50310165118(As Required) |
50010066000 |
US $11.25 |
||
| replacement | |||||
|
24
|
24
50310166000 Connecting Link F. 50310165118(As Required) |
50310166000 |
US $6.10 |
||
|
24
|
24
50010066100 Master Link 5/8X1/4 X-Ring(As Required) |
50010066100 |
US $8.64 |
||
|
30
|
30
52010073000
Superseded By 51010073000
(As Required) |
52010073000 |
— | ||
|
31
|
31
54010075000 Tube 110/100C-18(As Required) |
54010075000 |
US $40.14 |
||
| replacement | |||||
|
31
|
31
50310075100
Hose 110/100c-18
(As Required) |
50310075100 |
— | ||
|
31
|
31
54610075000 New Genuine Part(As Required) |
54610075000 |
US $55.15 |
||
|
32
|
32
50310074000
Tyre 100/90-19In. 57M M78
(As Required) |
50310074000 |
— | ||
|
32
|
32
50310074100
Tyre 110/100-18In. 64M M78
(As Required) |
50310074100 |
— | ||
|
32
|
32
50310074200
Tyre 100/100-18In. 59M M78
(As Required) |
50310074200 |
— | ||
|
32
|
32
50310074300
Tyre 120/90-18In. 65R Ed660
(As Required) |
50310074300 |
— | ||
|
32
|
32
50310074400
Tyre 140/80-18In. 70R Ed660
(As Required) |
50310074400 |
— | ||
|
32
|
32
50310074500
Tyre 110/90-19In. 62M M78
(As Required) |
50310074500 |
— | ||
|
33
|
33
54010100100 Rim Lock 2,15(As Required) |
54010100100 |
US $33.01 |
||
| replacement | |||||
|
33
|
33
78110090000 Rim Lock 2,15(As Required) |
78110090000 |
US $24.77 |
||
|
34
|
34
50310090050 Nut for wheel holder '9696 |
50310090050 |
US $4.01 |
||
| replacement | |||||
|
34
|
34
77110090050 Nut For Wheel Holder96 |
77110090050 |
US $3.60 |
||
|
38
|
38
55003135000 Plug For Rim(As Required) |
55003135000 |
US $1.02 |
||
|
39
|
39
50210086000 Covering cap sfl16(As Required) |
50210086000 |
US $3.54 |
||
|
40
|
40
50210085044
Wheel spindle rear cpl.l=264mm
(As Required) |
50210085044 |
— | ||
|
41
|
41
56510084100
Chain tensioner '95
95 |
56510084100 |
— | ||
|
42
|
42
50203030090 Hh screw m8x40 ws=10WS=10 |
50203030090 |
US $2.77 |
||
|
43
|
43
0934080003 Hexagon Nut Din0934-M 8WS=10 |
0934080003 |
US $3.26 |
||
|
44
|
44
54310099000 Hexagon Nut M20X1,5 '98WS=10 |
54310099000 |
US $27.71 |
||
| replacement | |||||
|
44
|
44
50310099000 Hexagon Nut M20X1,5 '98WS=10 |
50310099000 |
US $19.04 |
||
