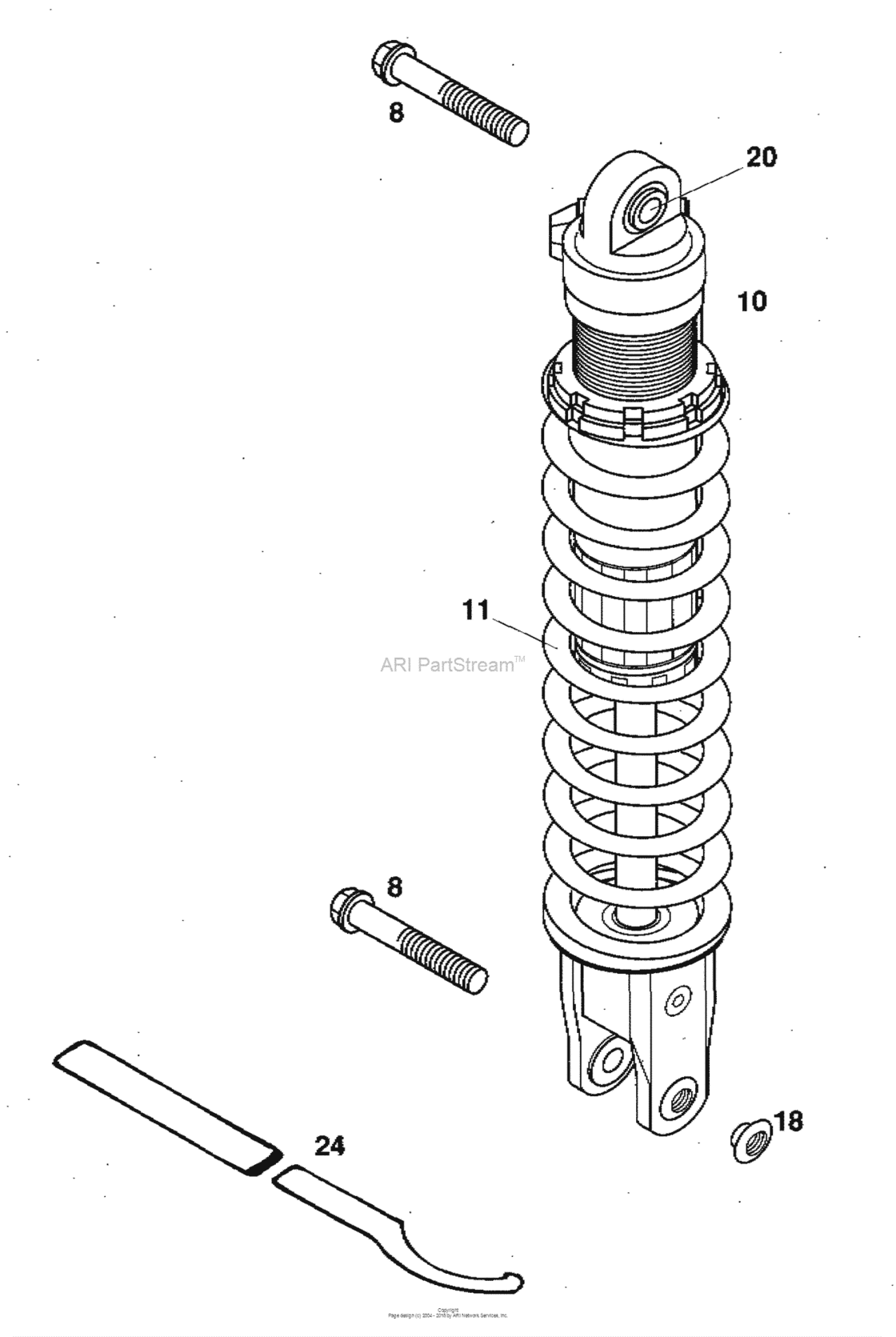

Shock Absorber Diagram KTM 200 200 Jackpinner
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 Jackpinner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
0015120556
Hh Collar M12X55 Ws=13 06
WS=13 |
0015120556 |
— | ||
| replacement | |||||
|
8
|
8
0015120556S Hh Collar M12X55 Ws=13 06WS=13 |
0015120556S |
US $4.17 |
||
|
10
|
10
50304010100
Monoshock wp pds"1218s702" '98
98 |
50304010100 |
— | ||
|
10
|
10
50304010200
Monoshock wp pds"1218s701" '98
98 |
50304010200 |
— | ||
|
10
|
10
54704010000 Shock Absorber Pds Mxc, Exc 0298 |
54704010000 |
US $1,077.38 |
||
| replacement | |||||
|
10
|
10
1218W739
Shock absorber pds mxc, exc 02
98 |
1218W739 |
— | ||
|
10
|
10
52304010044
Monoshock 250/380 Sx 98
98 |
52304010044 |
— | ||
| replacement | |||||
|
10
|
10
1218S704 Monoshock 250/380 sx 9898 |
1218S704 |
US $1,606.52 |
||
|
11
|
11
50304011072 Spring 250 72N/mm D=12,5 (59)(As Required) |
50304011072 |
US $185.61 |
||
| replacement | |||||
|
11
|
11
91210002
Spring 250 72N/mm D=12,5 (59)
(As Required) |
91210002 |
— | ||
|
11
|
11
50304011076
Spring 250 76N/mm D=12,5 (59)
(As Required) |
50304011076 |
— | ||
| replacement | |||||
|
11
|
11
91210003 Spring 250 76N/mm D=12,5 (59)(As Required) |
91210003 |
US $326.25 |
||
|
11
|
11
50304011080
Spring 80-250
(As Required) |
50304011080 |
— | ||
|
11
|
11
50304011084
Spring 250 84N/mm D=13,0 (62)
(As Required) |
50304011084 |
— | ||
| replacement | |||||
|
11
|
11
91210005 Spring 250 84N/mm D=13,0 (62)(As Required) |
91210005 |
US $201.38 |
||
|
11
|
11
50304011088
Spring 250 88N/mm D=13,0 (62)
(As Required) |
50304011088 |
— | ||
| replacement | |||||
|
11
|
11
91210006 Spring 250 88N/mm D=13,0 (62)(As Required) |
91210006 |
US $334.41 |
||
|
18
|
18
50304018000 Threaded Bush M12 Pds98 |
50304018000 |
US $18.43 |
||
| replacement | |||||
|
18
|
18
50180105 Threaded Bush M12 Pds98 |
50180105 |
US $15.90 |
||
|
20
|
20
50304020000 Bushing Box Kgw 12X24 Cpi Pds98 |
50304020000 |
US $99.09 |
||
| replacement | |||||
|
20
|
20
46811096S Bushing box kgw 12x24 cpi pds98 |
46811096S |
US $86.19 |
||
|
24
|
24
54312024000 Wrench Sw=17/21/27/32 B&f98 |
54312024000 |
US $21.03 |
||
| replacement | |||||
|
24
|
24
50329080100 Wrench Sw=17/21/27/32 B&f98 |
50329080100 |
US $20.83 |
||
