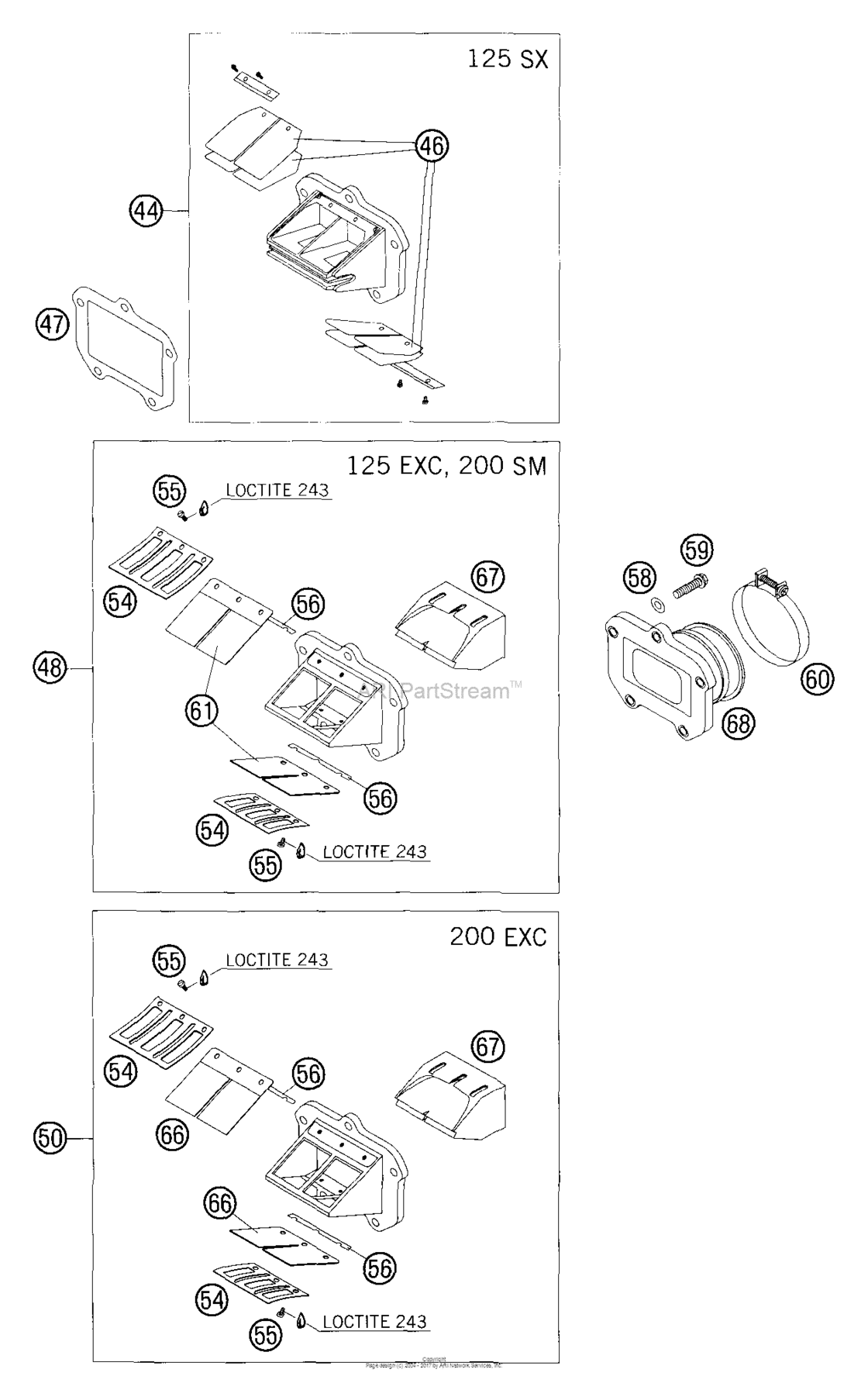

Reed Valve Case Diagram KTM 200 200 SM
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 SM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44
|
44
50330051344 Reed valve assy cpl.v-force 04FOR SPOILER 6X11X16X7,5 |
50330051344 |
US $304.27 |
||
|
46
|
46
50330052144
Reed valve set v-force 2004
FOR SPOILER 6X11X16X7,5 |
50330052144 |
— | ||
| replacement | |||||
|
46
|
46
50330151044 Reed Valve Assy CplFOR SPOILER 6X11X16X7,5 |
50330151044 |
US $147.42 |
||
|
47
|
47
50330098050 Gasket reed v.plate v-force 04FOR SPOILER 6X11X16X7,5 |
50330098050 |
US $11.41 |
||
|
48
|
48
50330051244 Reed valve assy cpl. 2000FOR SPOILER 6X11X16X7,5 |
50330051244 |
US $168.64 |
||
|
50
|
50
52330051144 Superseded By 54630051544FOR SPOILER 6X11X16X7,5 |
52330051144 |
US $149.97 |
||
| replacement | |||||
|
50
|
50
54630051544
Reed valve assy cpl. 250 2000
FOR SPOILER 6X11X16X7,5 |
54630051544 |
— | ||
|
54
|
54
54630053000
Stop plate top
FOR SPOILER 6X11X16X7,5 |
54630053000 |
— | ||
|
55
|
55
0084040063 Cyl.head screw din0084-m 4x 6aFOR SPOILER 6X11X16X7,5 |
0084040063 |
US $1.62 |
||
|
56
|
56
54230056000 Paper stripFOR SPOILER 6X11X16X7,5 |
54230056000 |
US $1.28 |
||
|
58
|
58
0137060003 Spring Washer Din0137-B 6FOR SPOILER 6X11X16X7,5 |
0137060003 |
US $0.43 |
||
|
59
|
59
0015060253
Hh Collar Screw M6X25 Tx30
FOR SPOILER 6X11X16X7,5 |
0015060253 |
— | ||
| replacement | |||||
|
59
|
59
0025060256 Hh collar screw m6x25 tx30FOR SPOILER 6X11X16X7,5 |
0025060256 |
US $2.45 |
||
|
60
|
60
54330061000 Clamp 52/12 gemiFOR SPOILER 6X11X16X7,5 |
54330061000 |
US $7.31 |
||
|
61
|
61
50330052044 Reed valve set 0,44mm 2000FOR SPOILER 6X11X16X7,5 |
50330052044 |
US $78.51 |
||
|
66
|
66
54730052040 Reed valve carbon 0,4mm '99FOR SPOILER 6X11X16X7,5 |
54730052040 |
US $41.40 |
||
|
67
|
67
50330054100 Reed valve insert 2000FOR SPOILER 6X11X16X7,5 |
50330054100 |
US $7.96 |
||
|
68
|
68
50330050200 Intake flange 2000FOR SPOILER 6X11X16X7,5 |
50330050200 |
US $74.94 |
||
