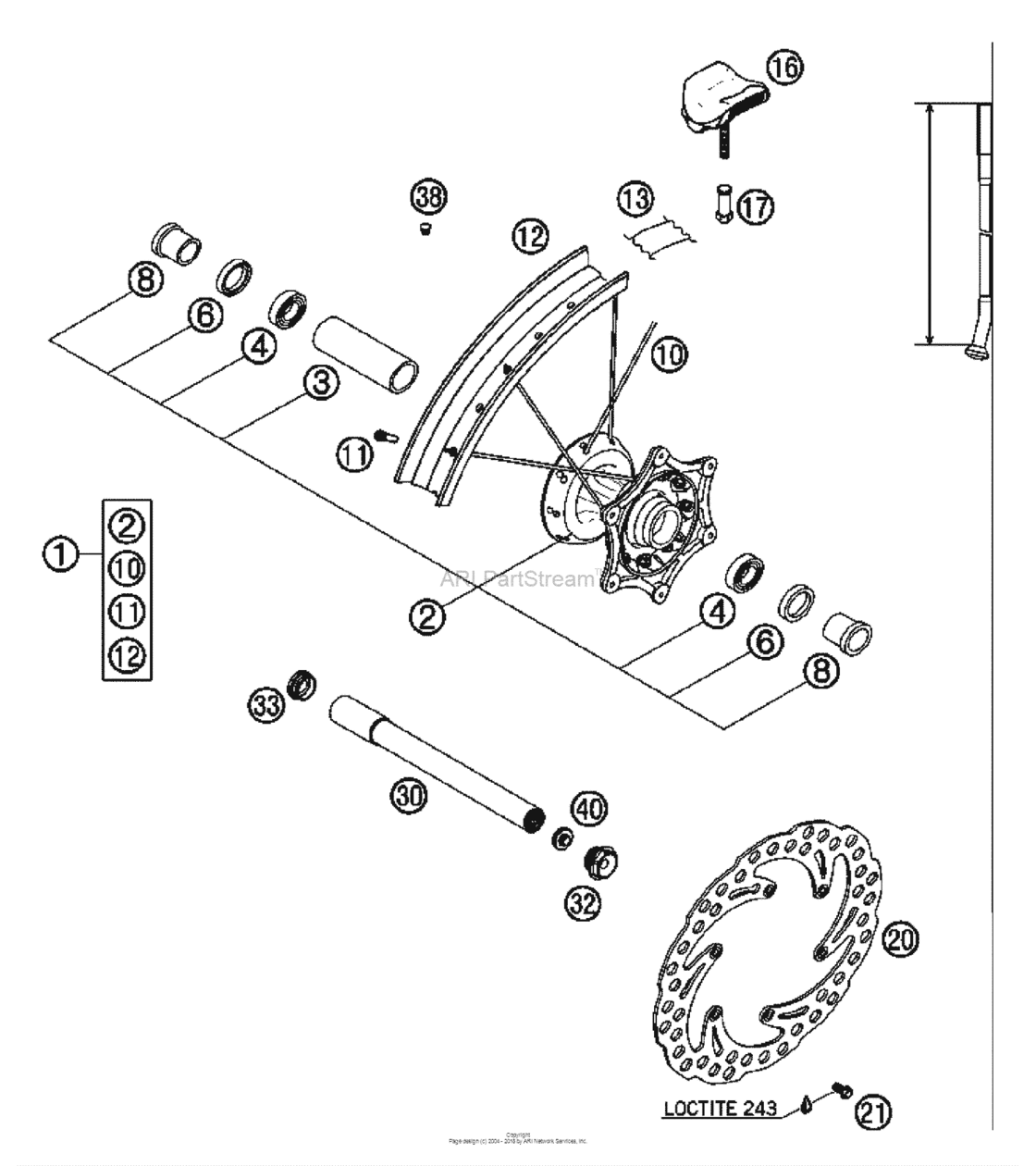

Front Wheel Diagram KTM 200 200 XC
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54809001544 Front wheel 1,6x21" excel 06FOR SPOILER 6X11X16X7,5 |
54809001544 |
US $631.99 |
||
|
2
|
2
5480901004491 Front Hub Cpl. Sx Silver 03FOR SPOILER 6X11X16X7,5 |
5480901004491 |
US $327.57 |
||
|
3
|
3
54809011000 Bea.spacertube 35x2 l=79,4 03FOR SPOILER 6X11X16X7,5 |
54809011000 |
US $23.66 |
||
|
4
|
4
0625069068 Gr.ball Bear.6906 Ddu2Cg23S6NmFOR SPOILER 6X11X16X7,5 |
0625069068 |
US $44.68 |
||
|
6
|
6
0760354771 Shaft seal ring 35x47x7 tcFOR SPOILER 6X11X16X7,5 |
0760354771 |
US $11.19 |
||
|
8
|
8
54809012000
Spacer bushing f. fr. wheel 03
FOR SPOILER 6X11X16X7,5 |
54809012000 |
— | ||
| replacement | |||||
|
8
|
8
78009012000 Spacer bushing f. fr. wheel 08FOR SPOILER 6X11X16X7,5 |
78009012000 |
US $27.10 |
||
|
10
|
10
50309072228
Spoke M4,5X228-21 07
FOR SPOILER 6X11X16X7,5 |
50309072228 |
— | ||
| replacement | |||||
|
10
|
10
50309074228 SPOKE M4,5X228-21" 07FOR SPOILER 6X11X16X7,5 |
50309074228 |
US $3.25 |
||
|
11
|
11
50309072000
Spoke Nipple Quadrax M4,5
FOR SPOILER 6X11X16X7,5 |
50309072000 |
— | ||
| replacement | |||||
|
11
|
11
81210072000 Spoke nipple quadrax m4,5FOR SPOILER 6X11X16X7,5 |
81210072000 |
US $2.79 |
||
|
12
|
12
54809070000
Rim Front 1,6X21 Excel Al7
FOR SPOILER 6X11X16X7,5 |
54809070000 |
— | ||
| replacement | |||||
|
12
|
12
51509070000 Rim Front 1,6X21 Excel Al7FOR SPOILER 6X11X16X7,5 |
51509070000 |
US $239.75 |
||
|
13
|
13
50309073000 Rim Band 21FOR SPOILER 6X11X16X7,5 |
50309073000 |
US $8.59 |
||
|
16
|
16
51009100100 Rim Lock 1,60FOR SPOILER 6X11X16X7,5 |
51009100100 |
US $20.55 |
||
| replacement | |||||
|
16
|
16
78109090000 Rim Lock 1,60FOR SPOILER 6X11X16X7,5 |
78109090000 |
US $20.43 |
||
|
17
|
17
50310090050 Nut for wheel holder '96FOR SPOILER 6X11X16X7,5 |
50310090050 |
US $4.01 |
||
| replacement | |||||
|
17
|
17
77110090050 Nut For Wheel HolderFOR SPOILER 6X11X16X7,5 |
77110090050 |
US $3.60 |
||
|
20
|
20
54809060100
Brake Disc Front D=260Mm 05
FOR SPOILER 6X11X16X7,5 |
54809060100 |
— | ||
| replacement | |||||
|
20
|
20
54809060200 BRAKE DISC FRONT D=260MM 05FOR SPOILER 6X11X16X7,5 |
54809060200 |
US $155.92 |
||
|
21
|
21
59009062013 Special Screw M6X13 Ws=8 10.9FOR SPOILER 6X11X16X7,5 |
59009062013 |
US $2.24 |
||
|
30
|
30
54809081000
Wheel Spin.fr. D=26 M24X1,5 07
FOR SPOILER 6X11X16X7,5 |
54809081000 |
— | ||
| replacement | |||||
|
30
|
30
77309081000 Wheel Spin.fr. D=26 M24X1,5 07FOR SPOILER 6X11X16X7,5 |
77309081000 |
US $79.71 |
||
|
32
|
32
54809082000 Spindle screw m24x1,5 ws=27 03FOR SPOILER 6X11X16X7,5 |
54809082000 |
US $10.88 |
||
|
33
|
33
54809081050 Plug bushing ws=27 03FOR SPOILER 6X11X16X7,5 |
54809081050 |
US $8.50 |
||
|
38
|
38
55003135000 Plug For RimFOR SPOILER 6X11X16X7,5 |
55003135000 |
US $1.02 |
||
|
40
|
40
54809081070 Auxiliary screw front 06FOR SPOILER 6X11X16X7,5 |
54809081070 |
US $6.17 |
||
