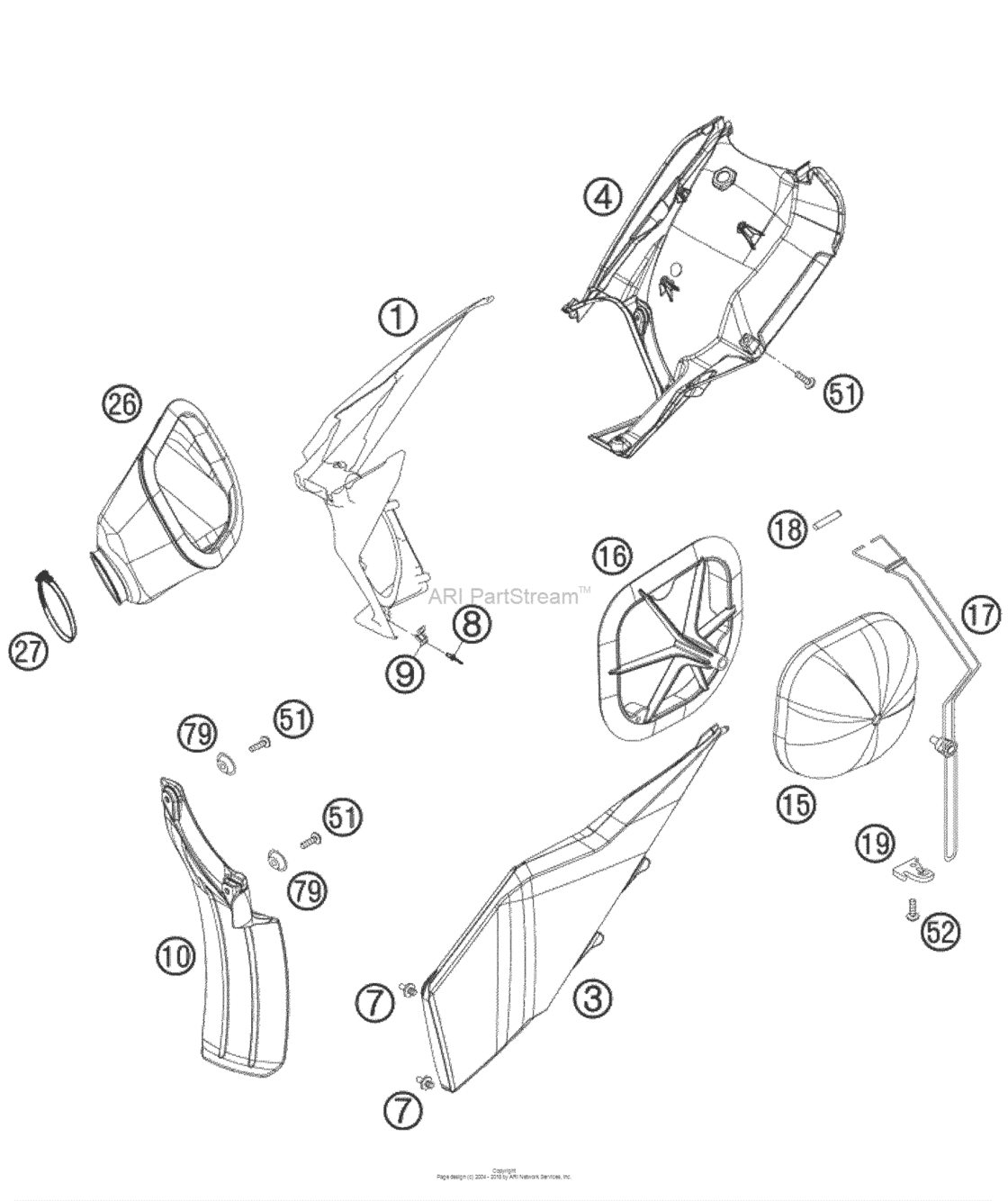

Air Filter Diagram KTM 200 200 XC
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7730600101030
Air Box Part Right
07 |
7730600101030 |
— | ||
| replacement | |||||
|
1
|
1
7730600111030 Air box part black07 |
7730600111030 |
US $39.39 |
||
|
3
|
3
7730600300030 Air box cover sx black 0707 |
7730600300030 |
US $39.39 |
||
|
4
|
4
77306001020 Rear part filter box 0707 |
77306001020 |
US $28.10 |
||
|
7
|
7
54806008051 Quick release-nipple 0303 |
54806008051 |
US $2.04 |
||
|
8
|
8
54806108052 Blind rivet 3,3x9,7 grooved 0404 |
54806108052 |
US $1.21 |
||
|
9
|
9
54806008050 Quick release-spring hanger04 |
54806008050 |
US $1.33 |
||
|
10
|
10
77306010000 Fender for filter box04 |
77306010000 |
US $19.60 |
||
|
15
|
15
77306015000
Air Filter
07 |
77306015000 |
— | ||
| replacement | |||||
|
15
|
15
78006015000 Air filter07 |
78006015000 |
US $38.10 |
||
|
16
|
16
54806416000 Filter carrier 2s sx 0707 |
54806416000 |
US $5.71 |
||
|
17
|
17
77306017000 Filter support cpl. 0707 |
77306017000 |
US $21.83 |
||
|
18
|
18
77306018000 Filter support bush 0707 |
77306018000 |
US $3.16 |
||
|
19
|
19
77306019000 Fasten. device filter s. sx 0707 |
77306019000 |
US $6.63 |
||
|
26
|
26
54806426000 Caburetor connecting 2s 0707 |
54806426000 |
US $42.01 |
||
|
27
|
27
51006027000 Hose Clamp 50-70Mm07 |
51006027000 |
US $5.66 |
||
|
51
|
51
0017060204 Screw F. Plastic K60X20Al Sw6(As required) |
0017060204 |
US $2.89 |
||
| replacement | |||||
|
51
|
51
0017060206 Screw F. Plastic K60X20Al Sw6(As required) |
0017060206 |
US $2.89 |
||
|
52
|
52
0017060203
Screw For Plastic K60X20 Sw6
WS=6 |
0017060203 |
— | ||
| replacement | |||||
|
52
|
52
0017060205 Screw For Plastic K60X20 Sw6WS=6 |
0017060205 |
US $2.24 |
||
|
79
|
79
77304066050 Bushing f. chain sliding pr.0707 |
77304066050 |
US $1.60 |
||
