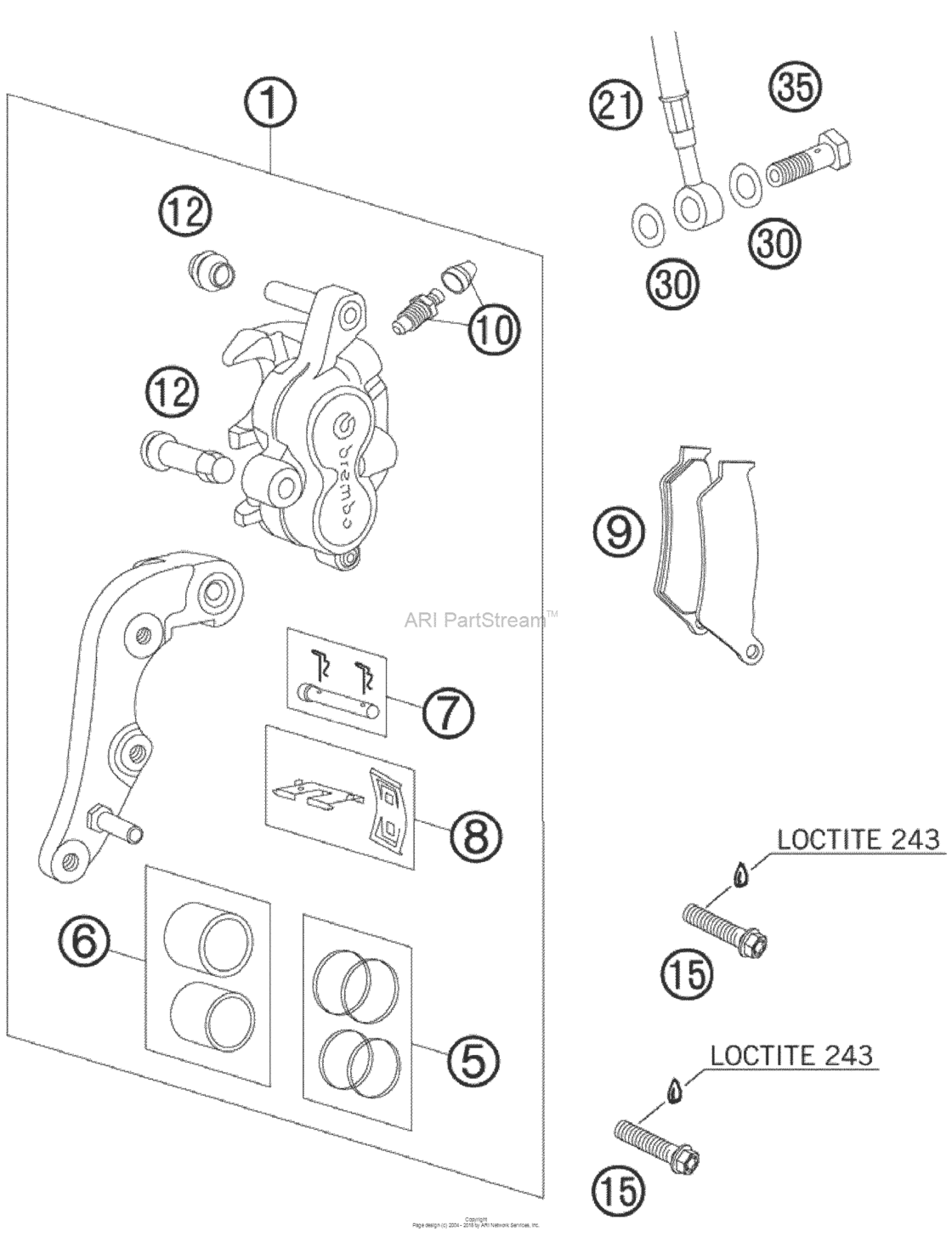

Brake Caliper Front Diagram KTM 200 200 XC
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59013015101 Brake cal. fr. - without pads07 |
59013015101 |
US $272.22 |
||
|
5
|
5
54613205000 Repair kit 28mm07 |
54613205000 |
US $20.21 |
||
|
6
|
6
54613206000 Repair kit piston 28mm07 |
54613206000 |
US $40.29 |
||
|
7
|
7
54613210100 Bolt Cpl. 6X5607 |
54613210100 |
US $17.19 |
||
|
8
|
8
54613212000 Retaining Plate Set Brembo07 |
54613212000 |
US $27.20 |
||
|
9
|
9
50313030200 Brakep.set Fr.toshiba Tt2701Hh07 |
50313030200 |
US $104.89 |
||
|
10
|
10
60013020000 Bleeder Screw With Cap07 |
60013020000 |
US $6.27 |
||
|
12
|
12
54613218000 Cup Set Short07 |
54613218000 |
US $25.72 |
||
| replacement | |||||
|
12
|
12
54613218100 CUP SET SHORT07 |
54613218100 |
US $25.72 |
||
|
15
|
15
0025080356S Hh Collar Screw M8X35 Tx40TX40 |
0025080356S |
US $2.72 |
||
|
21
|
21
59013011000 Brakeho. Front 1300Mm 20002000 |
59013011000 |
US $106.18 |
||
|
30
|
30
0603100141 Copper Gasket Din7603-10X14X12000 |
0603100141 |
US $2.24 |
||
|
35
|
35
50213025000 Hollow Screw M10X1X192000 |
50213025000 |
US $5.39 |
||
