Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
7	7 52305008400 Exhaust Manifold 06	52305008400	—
	replacement
7	7 52305008500 Exhaust manifold 06	52305008500	US $503.39
8	8 0770440030 O-ring 44,00x3,00 viton 06	0770440030	US $6.05
9	9 50305016000 Ten.spring L=62Mm Ey.moveable 06	50305016000	—
	replacement
9	9 A46005016000 TEN.SPRING L=62MM EY.MOVEABLE 06	A46005016000	US $5.88
11	11 54605157000 Silicon sleeve d=25/27mm 06	54605157000	US $29.34
12	12 50305012000 Swingelement For Exhaust Pipe 06	50305012000	US $25.65
13	13 0024060156 Hh collar screw m6x15 tx30 TX30	0024060156	US $3.96
14	14 0024060106 Hh collar screw m6x10 tx30 TX30	0024060106	US $4.35
16	16 54603048100 Range Change Metal Nut M6 TX30	54603048100	US $5.27
20	20 54805079100 Exhaust silencer sx 07 07	54805079100	US $388.60
22	22 77305069000 Bushing 7.5x12x28x7.6 07 07	77305069000	US $5.70
23	23 54605068000 Exhaust bracket rubber black 07	54605068000	—
	replacement
23	23 77205068000 Damp. Compon. Black 07	77205068000	US $8.43
24	24 59405169000 Bushing sil.-smr rear 2004 2004	59405169000	US $7.38
25	25 54805079052 Silencer endcap 2-stroke 2004 2004	54805079052	—
26	26 54805079150 Silcencer rubber 2-stroke 2005 2005	54805079150	US $12.85
27	27 54805083060 Silencer disc 2004 2004	54805083060	US $3.50
28	28 54805079058 Silencer screw 2-stroke 2004 2004	54805079058	US $6.36
29	29 0770055020 0-ring 55,00x2,00 nbr70 2004	0770055020	US $1.45
30	30 54805079060 Silencer connecting-cap 2004 2004	54805079060	US $26.01
31	31 0025060306 Hh collar screw m6x30 tx30 TX30	0025060306	US $3.96
32	32 0137060003 Spring Washer Din0137-B 6 TX30	0137060003	US $0.43
33	33 0025060356 Hh collar screw m6x35 tx30 TX30	0025060356	US $6.15
38	38 54805079390 Stuffing yarn sx 390 gr. 2007 2007	54805079390	US $84.03

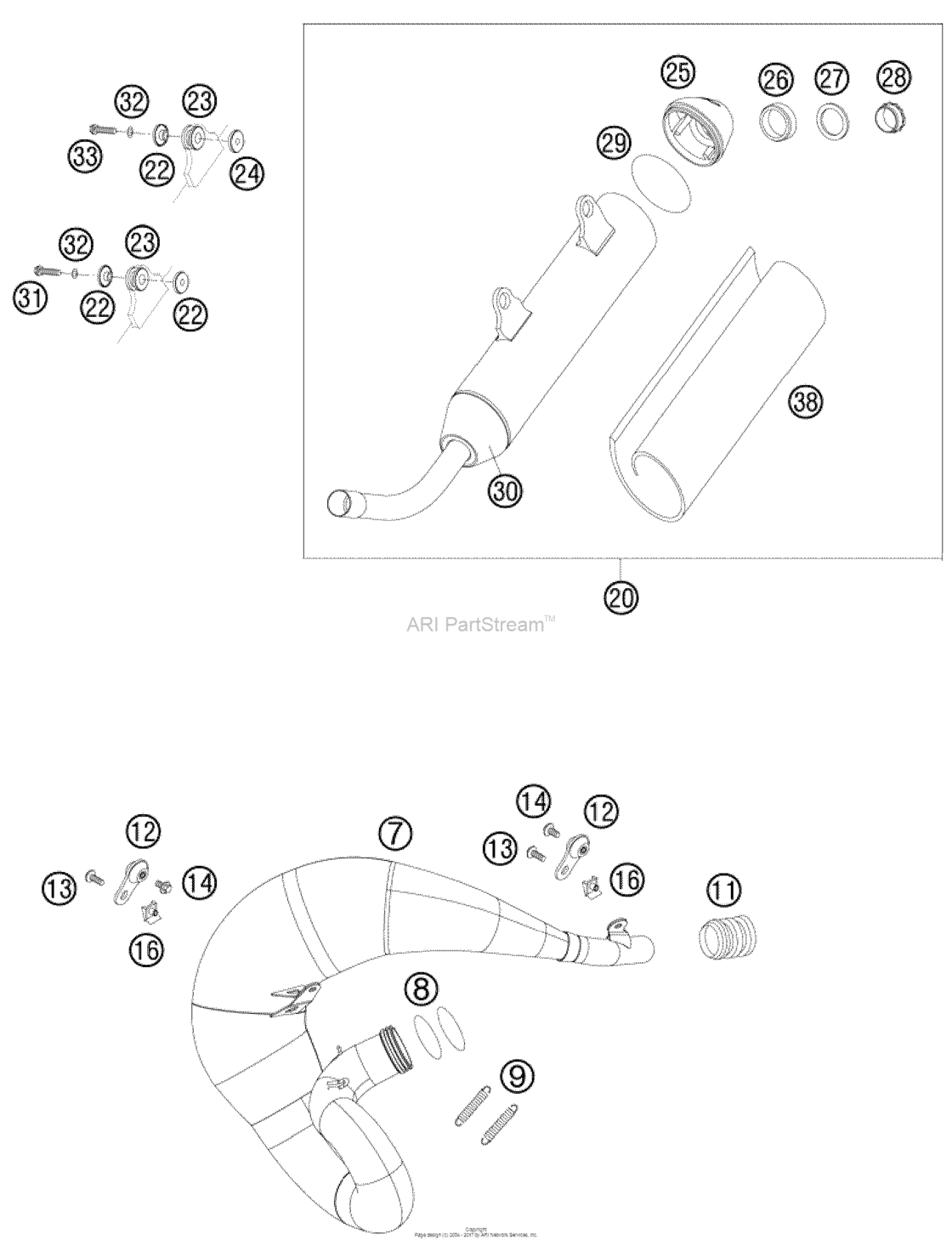

Exhaust System Diagram KTM 200 200 XC US/EU 18080047-939400

Exhaust System Diagram KTM 200 200 XC US/EU 18080047-939400
