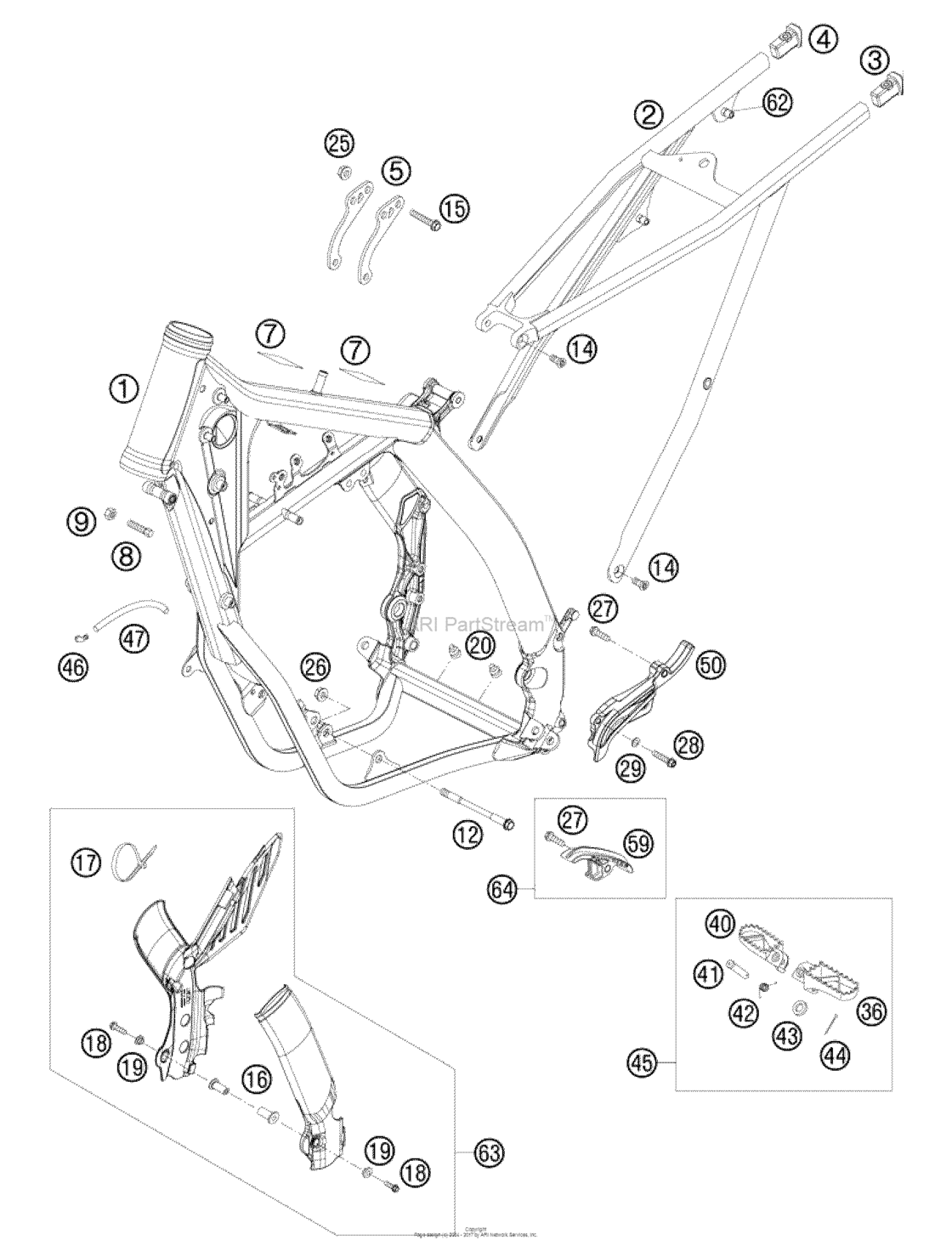

Frame Diagram KTM 200 200 XC
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5030340110030
Frame 200 xc-us "bb08" 08
08 |
5030340110030 |
— | ||
|
2
|
2
77303002000 Sub frame sx "q7" 0707 |
77303002000 |
US $363.92 |
||
|
3
|
3
78003002010
Sub frame application left 08
08 |
78003002010 |
— | ||
| replacement | |||||
|
3
|
3
78103002010 Sub Frame Application Left08 |
78103002010 |
US $20.28 |
||
|
4
|
4
78003002020
Sub frame application right 08
08 |
78003002020 |
— | ||
| replacement | |||||
|
4
|
4
78103002020 Sub Frame Application Right08 |
78103002020 |
US $22.39 |
||
|
5
|
5
52303113000 Reinforcing b. 200 exc 0808 |
52303113000 |
US $24.26 |
||
|
7
|
7
50307012000 Adh. foil transp. 80x80 mm 0404 |
50307012000 |
US $2.02 |
||
|
8
|
8
59001037000 Special screw m8x26 ws=1004 |
59001037000 |
US $2.09 |
||
|
9
|
9
0934080003 Hexagon Nut Din0934-M 804 |
0934080003 |
US $3.26 |
||
|
12
|
12
54603013000 Engine brac.scr. m10x105 ws=1304 |
54603013000 |
US $9.74 |
||
|
14
|
14
0019080206S Flat head screw m. isa45 m8x2004 |
0019080206S |
US $3.26 |
||
|
15
|
15
56530079000
Collar screw m8x42 ws=13 10.9
10.9 |
56530079000 |
— | ||
| replacement | |||||
|
15
|
15
56530079000S Hh Collar Screw M8X44 Ws1310.9 |
56530079000S |
US $1.60 |
||
|
16
|
16
54803092050 Blind plug-in nut m5 wn 22a 0303 |
54803092050 |
US $4.76 |
||
|
17
|
17
44011076305 Cable tie 300/4,8mm black03 |
44011076305 |
US $0.36 |
||
|
18
|
18
0738050250 Cou.sunk scr. ah iso7380 m5x2503 |
0738050250 |
US $0.75 |
||
|
19
|
19
54803092060 Bush f. frame protection 0303 |
54803092060 |
US $3.43 |
||
|
20
|
20
54403135000 Plastic cap sfl1003 |
54403135000 |
US $1.31 |
||
|
25
|
25
54310086200 Self Locking Nut M8 10.910.9 |
54310086200 |
US $1.56 |
||
|
26
|
26
54310086100 Self locking nut m10 cu ws=1410.9 |
54310086100 |
US $2.55 |
||
|
27
|
27
0025080306 Hh collar screw m8x30 tx40TX40 |
0025080306 |
US $3.89 |
||
|
28
|
28
0025060406 Hh collar screw m6x40 tx30TX30 |
0025060406 |
US $2.23 |
||
|
29
|
29
0125060003 Washer Din0125-A 6,4TX30 |
0125060003 |
US $0.37 |
||
|
36
|
36
59003040250 Footrest L/s 0802 |
59003040250 |
US $70.60 |
||
| replacement | |||||
|
36
|
36
78003040050 Footrest l/s 0802 |
78003040050 |
US $44.12 |
||
|
40
|
40
59003041250 Footrest R/s 0802 |
59003041250 |
US $69.17 |
||
| replacement | |||||
|
40
|
40
78003041050 Footrest r/s 0802 |
78003041050 |
US $44.12 |
||
|
41
|
41
54803044000 Pin For Foot Ped 51.5X9.8 Mm03 |
54803044000 |
US $10.98 |
||
|
42
|
42
54603041000 Footrest Spring L/s & R/s03 |
54603041000 |
US $3.52 |
||
|
43
|
43
0125100003 Washer Din0125-A10,503 |
0125100003 |
US $1.19 |
||
|
44
|
44
0094032253 Pin din0094-3,2x25 steel03 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
44
|
44
0094032250 Pin din0094-3,2x25 steel03 |
0094032250 |
US $1.12 |
||
|
45
|
45
5030314013390 Footpeg l.+r. cpl. 0303 |
5030314013390 |
US $172.55 |
||
|
46
|
46
50303089000 Angle piece '97'97 |
50303089000 |
US $4.52 |
||
|
47
|
47
55007016001 Pvc-hose 7x10 per meter(As required) |
55007016001 |
US $5.98 |
||
|
50
|
50
54803096000 Sprocket cover 250 sx 0707 |
54803096000 |
US $9.93 |
||
|
59
|
59
77303053000 Chain sliding piece below 0707 |
77303053000 |
US $9.78 |
||
|
62
|
62
77303139000 Blind rivet nut em6-60lf/hx07 |
77303139000 |
US $2.94 |
||
|
63
|
63
77303094100 Plastic frame protection set07 |
77303094100 |
US $49.28 |
||
|
64
|
64
77303053010 Chain sliding p. below cpl. 0707 |
77303053010 |
US $9.62 |
||
