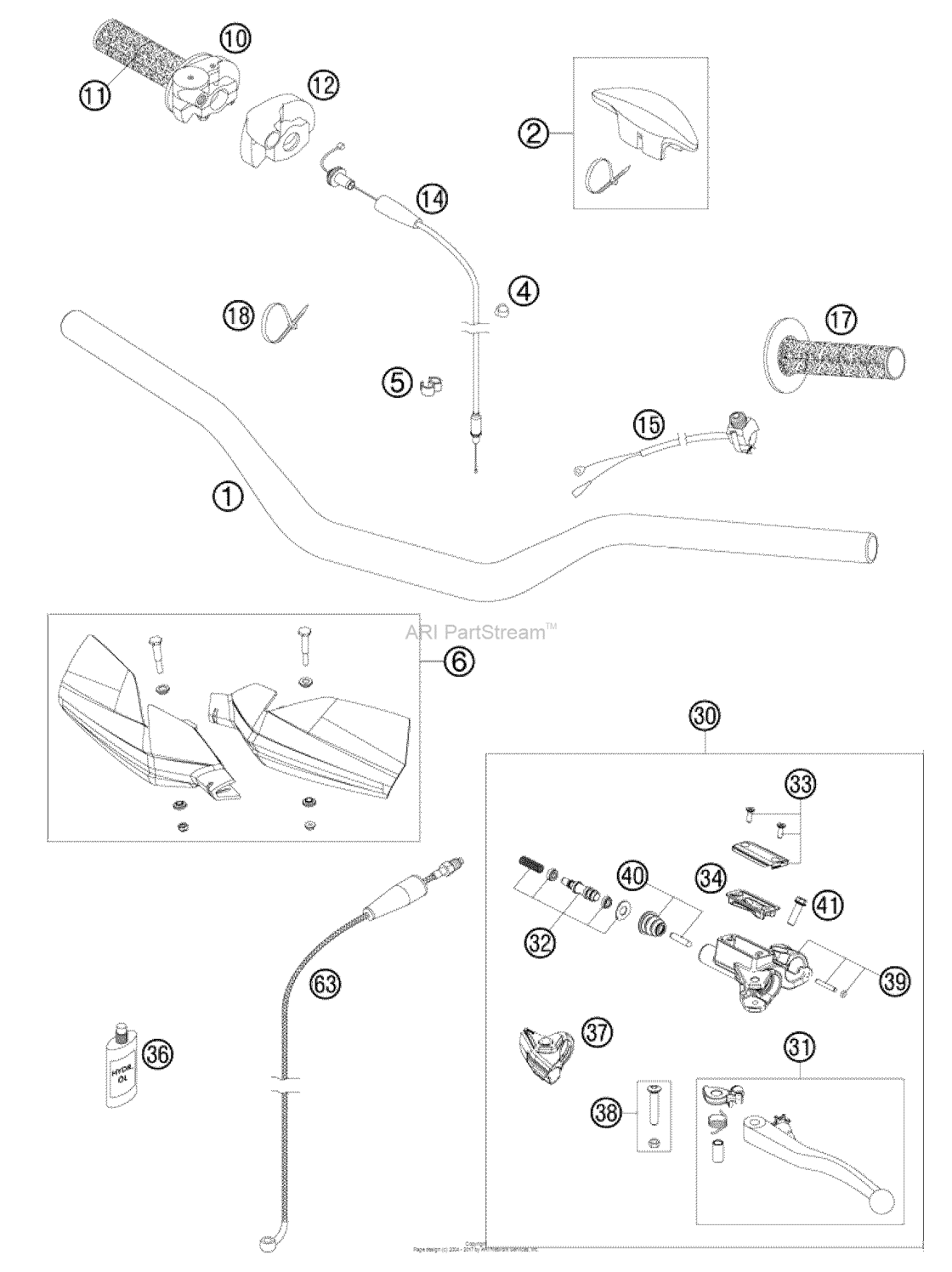

Handlebar, Controls Diagram KTM 200 200 XC
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5480200130017 Handlebar neken d=28mm exc 0707 |
5480200130017 |
US $192.39 |
||
|
2
|
2
59002002000
Superseded By 77202002100
05 (As required) |
59002002000 |
— | ||
|
4
|
4
57013072000 Wiring holder 12mm05 (As required) |
57013072000 |
US $3.50 |
||
|
5
|
5
60111094000 Clamp 5/7 mm 0606 |
60111094000 |
US $3.54 |
||
|
6
|
6
7700207910004
Hand guards cpl.l/s+r/s or. 09
09 |
7700207910004 |
— | ||
|
10
|
10
54802010000
Throttle Grip Cpl. 2St. 13
04 |
54802010000 |
— | ||
| replacement | |||||
|
10
|
10
51502010200 Throttle Grip Cpl. 2St. 1304 |
51502010200 |
US $67.97 |
||
|
11
|
11
54802013000
Grip-Set Gray/orange 09
Not Available
04 Not Available |
54802013000 |
— | ||
| replacement | |||||
|
11
|
11
54802021200 Grip-set gray/orange 0904 Not Available |
54802021200 |
US $28.29 |
||
|
12
|
12
50302020000 Protection Cover '97'97 |
50302020000 |
US $16.75 |
||
|
14
|
14
50302091000
Throttle c. 125-380 dom./keih.
'97 |
50302091000 |
— | ||
| replacement | |||||
|
14
|
14
51502091200 Throttle Cable 2-St. 2014'97 |
51502091200 |
US $39.20 |
||
|
15
|
15
50311089200 Short Circuit Button 0202 |
50311089200 |
US $50.97 |
||
|
17
|
17
54802039000
Grip-Set Gray/orange 09
Not Available
04 Not Available |
54802039000 |
— | ||
| replacement | |||||
|
17
|
17
54802021200 Grip-set gray/orange 0904 Not Available |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black04 Not Available |
44011076200 |
US $0.39 |
||
|
30
|
30
50302030300 Master cylinder cpl. 9,5mm 0909 |
50302030300 |
US $372.45 |
||
|
31
|
31
50302031300 Clutch lever cpl. 20092009 |
50302031300 |
US $45.82 |
||
|
32
|
32
50302032100 Rep.kit piston 9,5mm 0909 |
50302032100 |
US $82.21 |
||
|
33
|
33
50302033200 Cover hydr. clutch cpl. 0909 |
50302033200 |
US $24.96 |
||
|
34
|
34
50302034100 Rubber for reservoir 0909 |
50302034100 |
US $17.24 |
||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 Ml09 |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037100
Mud cap 09
09 |
50302037100 |
— | ||
| replacement | |||||
|
37
|
37
76502037000 Protect.cap For Lever Perch 1309 |
76502037000 |
US $32.22 |
||
|
38
|
38
50302038200 Lever screw short cpl. 0909 |
50302038200 |
US $29.50 |
||
|
39
|
39
50302030250 Clamp + pin + o-ring 0909 |
50302030250 |
US $58.40 |
||
| replacement | |||||
|
39
|
39
83013005000 Clamp, cyl. pin, o-ring09 |
83013005000 |
US $55.15 |
||
|
40
|
40
50302046000
Push rod cpl. 09
09 |
50302046000 |
— | ||
| replacement | |||||
|
40
|
40
76502046000 Push Rod Cpl. 1309 |
76502046000 |
US $32.86 |
||
|
41
|
41
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
63
|
63
50332063200 Clutch pipe l=970mm 0404 |
50332063200 |
US $88.57 |
||
