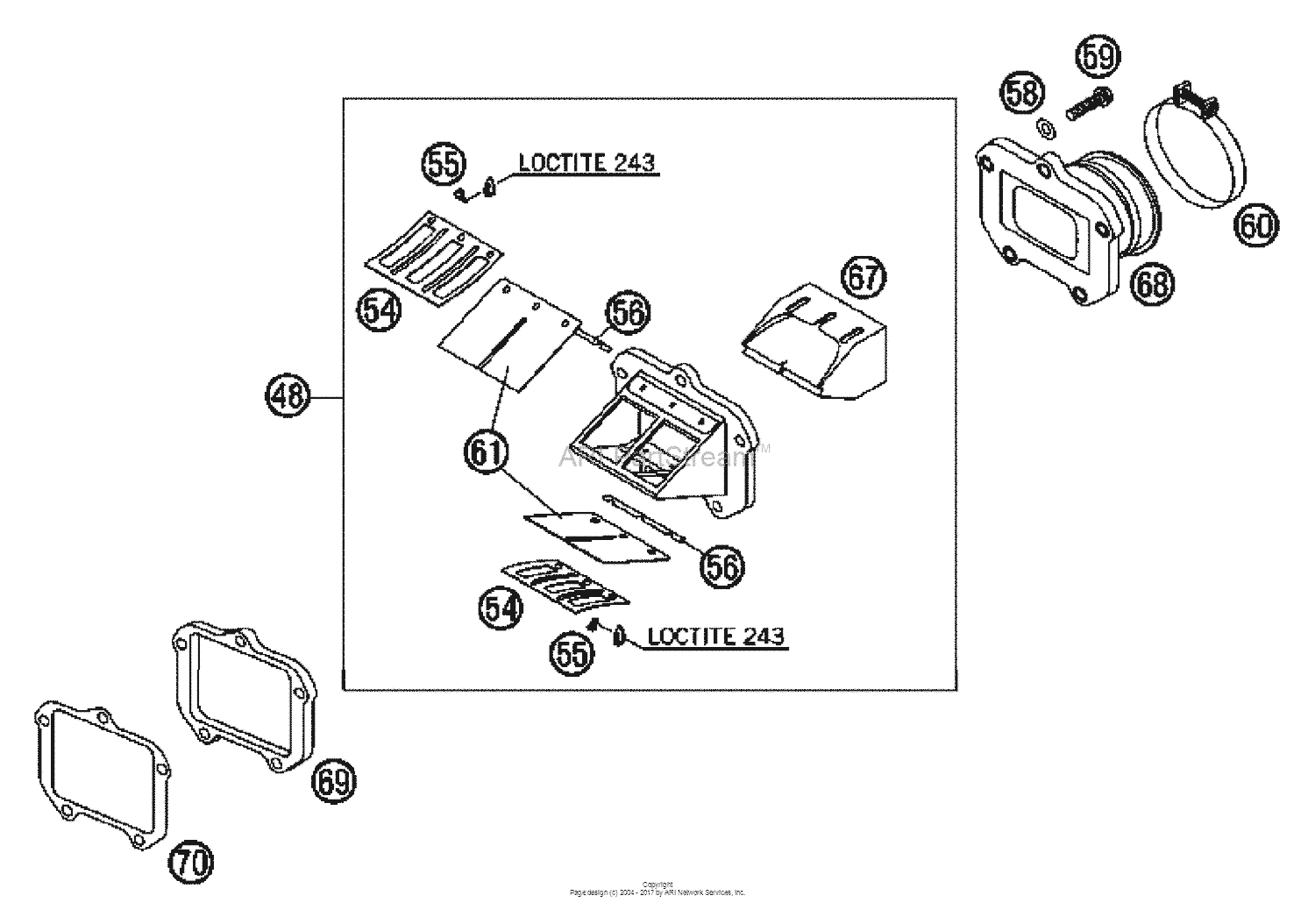

Reed Valve Case Diagram KTM 200 200 XC
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48
|
48
52330051144 Superseded By 54630051544FOR WINTER OPERATION |
52330051144 |
US $149.97 |
||
| replacement | |||||
|
48
|
48
54630051544
Reed valve assy cpl. 250 2000
FOR WINTER OPERATION |
54630051544 |
— | ||
|
54
|
54
54630053000
Stop plate top
FOR WINTER OPERATION |
54630053000 |
— | ||
|
55
|
55
0084040063 Cyl.head screw din0084-m 4x 6aFOR WINTER OPERATION |
0084040063 |
US $1.62 |
||
|
56
|
56
54230056000 Paper stripFOR WINTER OPERATION |
54230056000 |
US $1.28 |
||
|
58
|
58
0137060003 Spring Washer Din0137-B 6FOR WINTER OPERATION |
0137060003 |
US $0.43 |
||
|
59
|
59
0015060303
Hh Collar Screw M6X30 Tx30
FOR WINTER OPERATION |
0015060303 |
— | ||
| replacement | |||||
|
59
|
59
0025060306 Hh collar screw m6x30 tx30FOR WINTER OPERATION |
0025060306 |
US $3.96 |
||
|
60
|
60
54330061000 Clamp 52/12 gemiFOR WINTER OPERATION |
54330061000 |
US $7.31 |
||
|
61
|
61
54730052040 Reed valve carbon 0,4mm '99FOR WINTER OPERATION |
54730052040 |
US $41.40 |
||
|
67
|
67
50330054100 Reed valve insert 2000FOR WINTER OPERATION |
50330054100 |
US $7.96 |
||
|
68
|
68
50330050200 Intake flange 2000FOR WINTER OPERATION |
50330050200 |
US $74.94 |
||
|
69
|
69
54630098000 Reed valve plate 6mmFOR WINTER OPERATION |
54630098000 |
US $44.98 |
||
|
70
|
70
50330098050 Gasket reed v.plate v-force 04FOR WINTER OPERATION |
50330098050 |
US $11.41 |
||
