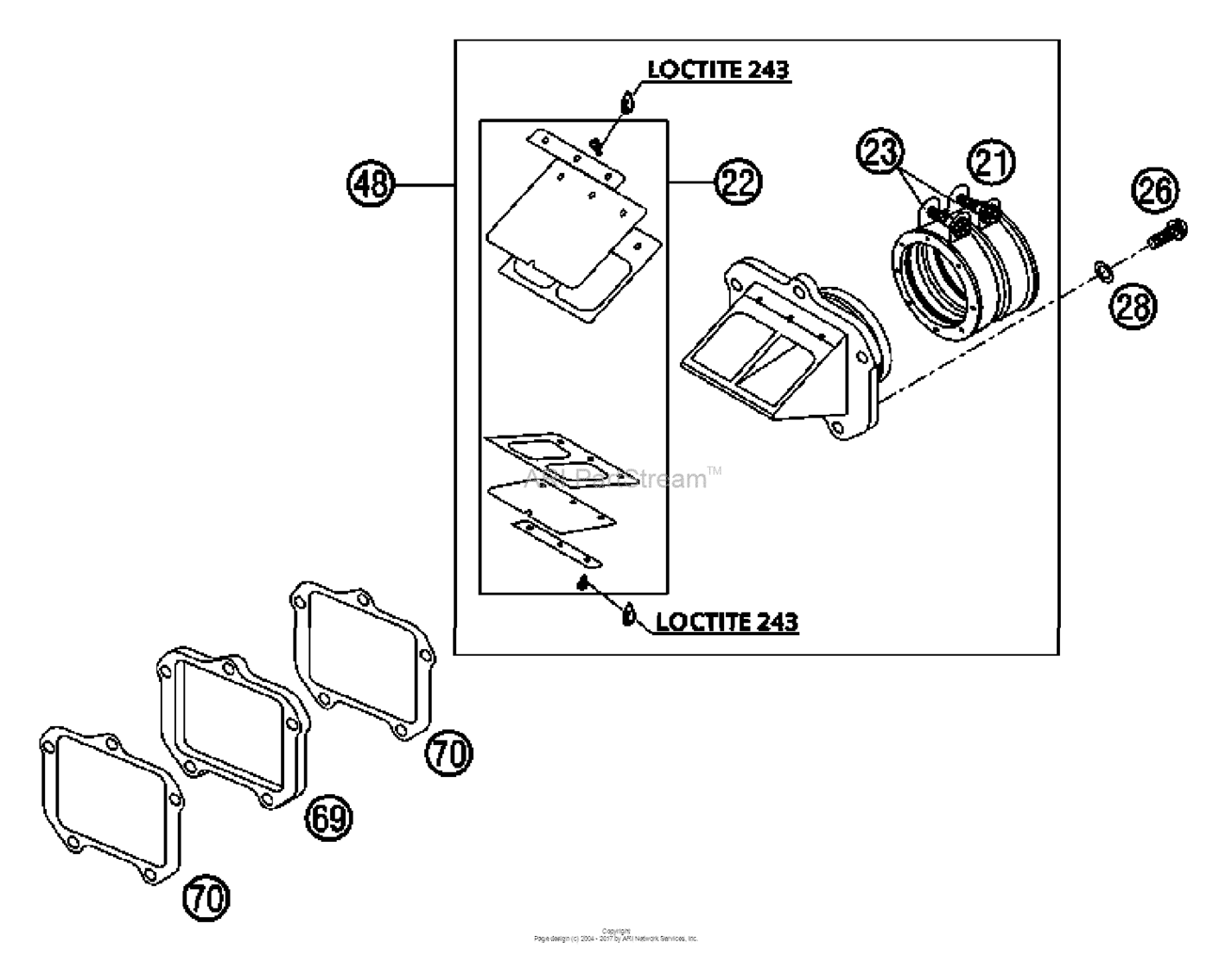

Reed Valve Case Diagram KTM 200 200 XC
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21
|
21
54736044000
Rubber boot cpl. boyesen 2002
FOR WINTER OPERATION |
54736044000 |
— | ||
| replacement | |||||
|
21
|
21
54736044044 RUBBER BOOT WITH CLAMPFOR WINTER OPERATION |
54736044044 |
US $40.63 |
||
|
22
|
22
54730052000 Reed valve cpl. boyesen 02FOR WINTER OPERATION |
54730052000 |
US $88.03 |
||
|
23
|
23
54830061000 Clamp 54/09 mixedFOR WINTER OPERATION |
54830061000 |
US $4.81 |
||
|
26
|
26
0015060253
Hh Collar Screw M6X25 Tx30
FOR WINTER OPERATION |
0015060253 |
— | ||
| replacement | |||||
|
26
|
26
0025060256 Hh collar screw m6x25 tx30FOR WINTER OPERATION |
0025060256 |
US $2.45 |
||
|
28
|
28
0137060003 Spring Washer Din0137-B 6FOR WINTER OPERATION |
0137060003 |
US $0.43 |
||
|
48
|
48
54730051044 Reed valve assy cpl. 2000FOR WINTER OPERATION |
54730051044 |
US $310.37 |
||
|
69
|
69
54630098000 Reed valve plate 6mmFOR WINTER OPERATION |
54630098000 |
US $44.98 |
||
|
70
|
70
50330098050 Gasket reed v.plate v-force 04FOR WINTER OPERATION |
50330098050 |
US $11.41 |
||
