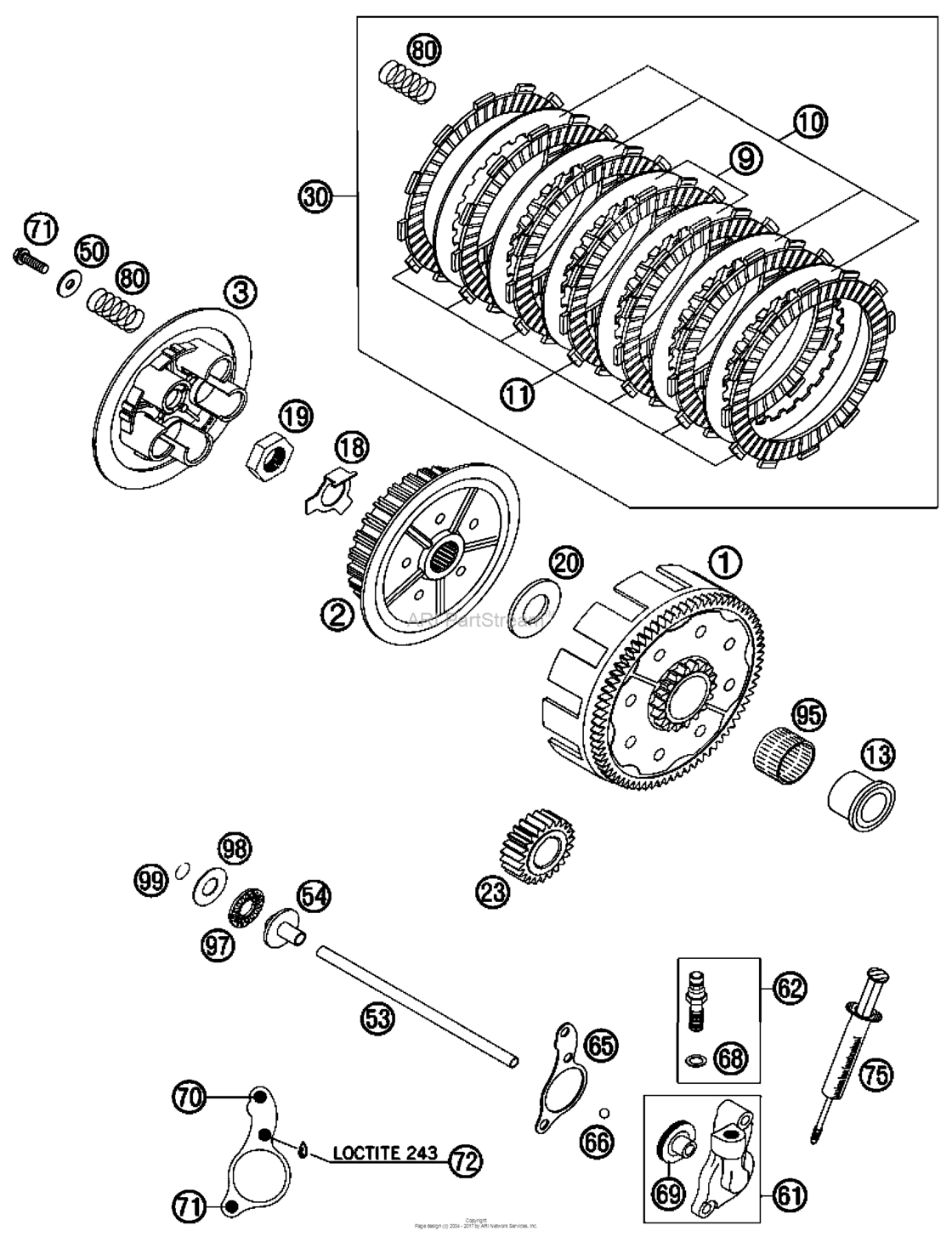

Clutch Diagram KTM 200 200 XC
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50332000173
Outer Clutch Hub '98
125/200 06 |
50332000173 |
— | ||
| replacement | |||||
|
1
|
1
50332001044 Outer Clutch Hub '98125/200 06 |
50332001044 |
US $445.59 |
||
|
2
|
2
50332002100 Inner Clutch Hub 125/200'98125/200 06 |
50332002100 |
US $103.17 |
||
| replacement | |||||
|
2
|
2
50332002000 Inner clutch hub 125/200'98125/200 06 |
50332002000 |
US $123.11 |
||
|
3
|
3
50332003100
Pressure plate 1257200 06
06 |
50332003100 |
— | ||
| replacement | |||||
|
3
|
3
50332003000 Pressure plate 125/200'9806 |
50332003000 |
US $88.52 |
||
|
9
|
9
50332010200
Intermedi. Disc Steel 1,5Mm'98
06 |
50332010200 |
— | ||
| replacement | |||||
|
9
|
9
50332010100 Intermedi. disc steel 1,5mm'9806 |
50332010100 |
US $13.26 |
||
|
10
|
10
50332010300
Intermediate disk alu 1,5mm 06
06 |
50332010300 |
— | ||
| replacement | |||||
|
10
|
10
50332010400 Intermediate disc 1,5mm06 |
50332010400 |
US $21.11 |
||
|
11
|
11
50332011100
Lining Disc 3,0Mm 05
06 |
50332011100 |
— | ||
| replacement | |||||
|
11
|
11
77032011000 Lining disc 3,0mm 0506 |
77032011000 |
US $61.51 |
||
|
13
|
13
50332013000 Inner ring 20x26x25,9 '98'98 |
50332013000 |
US $27.08 |
||
|
18
|
18
50332018000 Sheet metal lock 1,5mm '98'98 |
50332018000 |
US $5.70 |
||
|
19
|
19
0936181505 Hexagon Nut Din0936-M18X1,5 R'98 |
0936181505 |
US $7.60 |
||
|
20
|
20
50332020000 Stop disk 20x39,6x3 '98'98 |
50332020000 |
US $16.35 |
||
|
23
|
23
50332023123 Primary pinion 23-t 125/200 06125/200 06 |
50332023123 |
US $68.61 |
||
|
30
|
30
50332011110 Clutch kit 125 '06-┤08'06;(As required) |
50332011110 |
US $268.80 |
||
|
50
|
50
52332006100 Stepped washer 0303 |
52332006100 |
US $4.90 |
||
|
53
|
53
50332017300 Push rod l=178 125/200 2006L=178 125/200 2006 |
50332017300 |
US $10.18 |
||
|
54
|
54
50332054051
Pressure piece 125-380 '98
'98 |
50332054051 |
— | ||
| replacement | |||||
|
54
|
54
50332154051 Pressure Piece Cpl'98 |
50332154051 |
US $22.83 |
||
|
61
|
61
50332061044 Cylinder cpl. 125/200'98125/200'98 |
50332061044 |
US $162.54 |
||
|
62
|
62
50332062000 Hollow screw cpl. m 10x1 '98'98 |
50332062000 |
US $35.33 |
||
|
65
|
65
50332065051 Clutch release gasket 0,3mm(As required) |
50332065051 |
US $2.04 |
||
|
65
|
65
50332065052 Clutch release gasket 0,5mm(As required) |
50332065052 |
US $2.38 |
||
|
65
|
65
50332065053 Clutch release gasket 0,75mm(As required) |
50332065053 |
US $2.87 |
||
|
66
|
66
0401070003 Ball din5401-7(As required) |
0401070003 |
US $0.66 |
||
|
68
|
68
42013226000 Cu-Seal Ring Din7603-10X16X1(As required) |
42013226000 |
US $4.10 |
||
|
69
|
69
50332066000 Piston w. o-ring 125/200 2000125/200 2000 |
50332066000 |
US $99.11 |
||
|
70
|
70
0015060403
Hh Collar Screw M6X40 Tx30
WS=8 |
0015060403 |
— | ||
| replacement | |||||
|
70
|
70
0025060406 Hh collar screw m6x40 tx30WS=8 |
0025060406 |
US $2.23 |
||
|
71
|
71
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
71
|
71
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
72
|
72
0015060253
Hh Collar Screw M6X25 Tx30
WS=8 |
0015060253 |
— | ||
| replacement | |||||
|
72
|
72
0025060256 Hh collar screw m6x25 tx30WS=8 |
0025060256 |
US $2.45 |
||
|
75
|
75
50329050000 Vent Injektion Hydr. ClutchWS=8 |
50329050000 |
US $50.78 |
||
|
80
|
80
52332005100 Clutch Spring 20007 |
52332005100 |
US $8.94 |
||
| replacement | |||||
|
80
|
80
52332005200 Clutch Spring07 |
52332005200 |
US $2.23 |
||
|
95
|
95
56532095000 Needle bearing k26x30x22zw.kse07 |
56532095000 |
US $21.51 |
||
|
97
|
97
54637097200 Axial Needle Bearing Axk 122607 |
54637097200 |
US $10.06 |
||
|
98
|
98
54637098200 Axial washer as1226 12x26x107 |
54637098200 |
US $5.02 |
||
|
98
|
98
54637098300 Axial washer 12,5x25,8x1,5(As required) |
54637098300 |
US $1.73 |
||
|
99
|
99
0993012000 Circlip Din7993-Rw12(As required) |
0993012000 |
US $2.11 |
||
