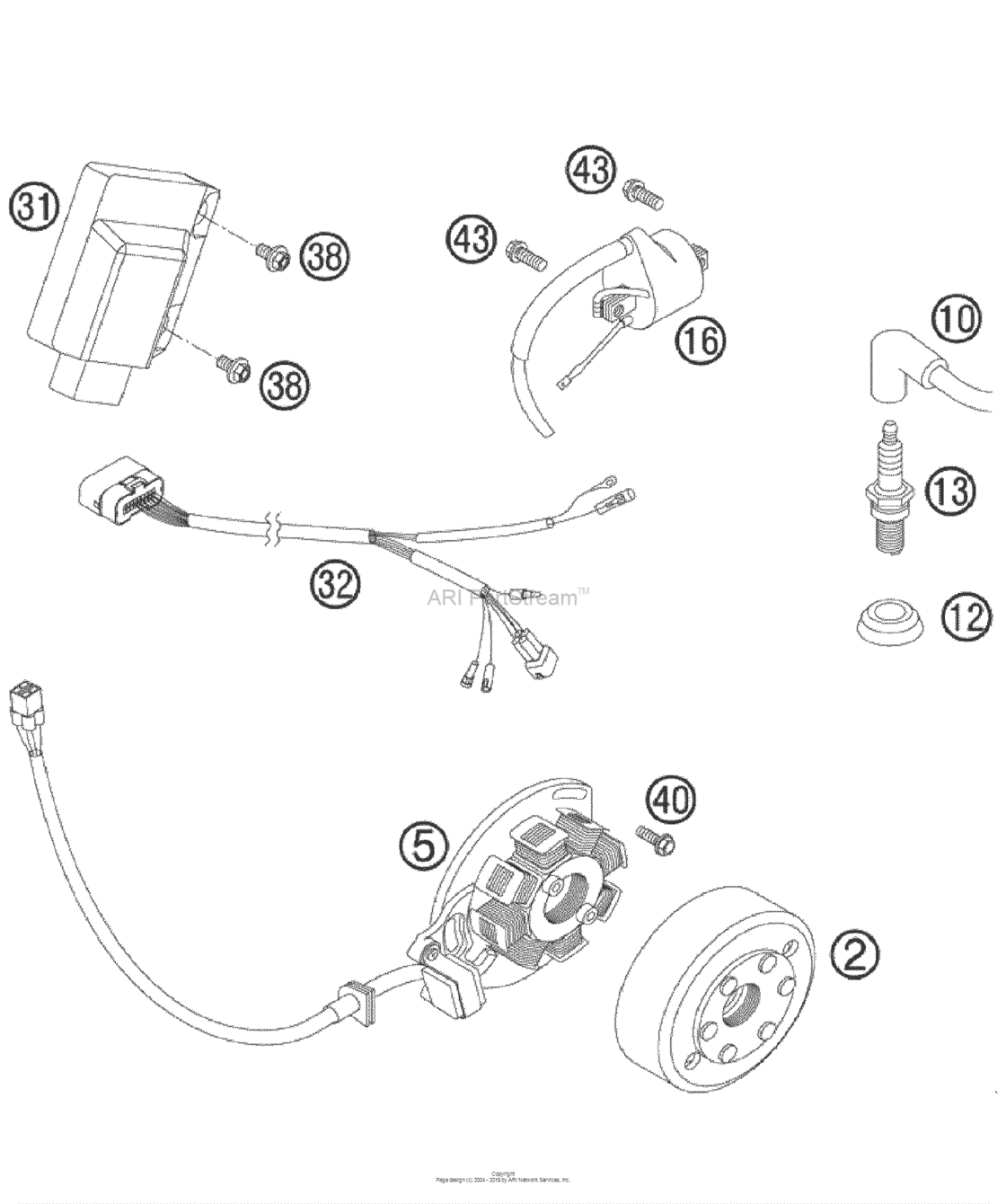

Ignition System Diagram KTM 200 200 XC
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
50339005200 Flywheel kokusan 2k-3 '98'98 |
50339005200 |
US $273.94 |
||
|
5
|
5
54839204000 Stator kokusan 2k-3 20052005 |
54839204000 |
US $217.01 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.0404 |
47039090000 |
US $24.26 |
||
|
12
|
12
50231012000 Sealing cup for spark plug04 |
50231012000 |
US $3.91 |
||
|
13
|
13
54331093310 Spark plug ngk br8eg04 |
54331093310 |
US $8.94 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"04 |
59039006000 |
US $132.38 |
||
|
31
|
31
52339031900 Cdi unit 200 xc/exc 0808 |
52339031900 |
US $283.70 |
||
|
32
|
32
54839032300 Wiring harness f.cdi 2-st.sx0708 |
54839032300 |
US $67.86 |
||
|
38
|
38
0023060123 Collar screw m6x12 txTX |
0023060123 |
US $0.87 |
||
|
40
|
40
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
43
|
43
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
