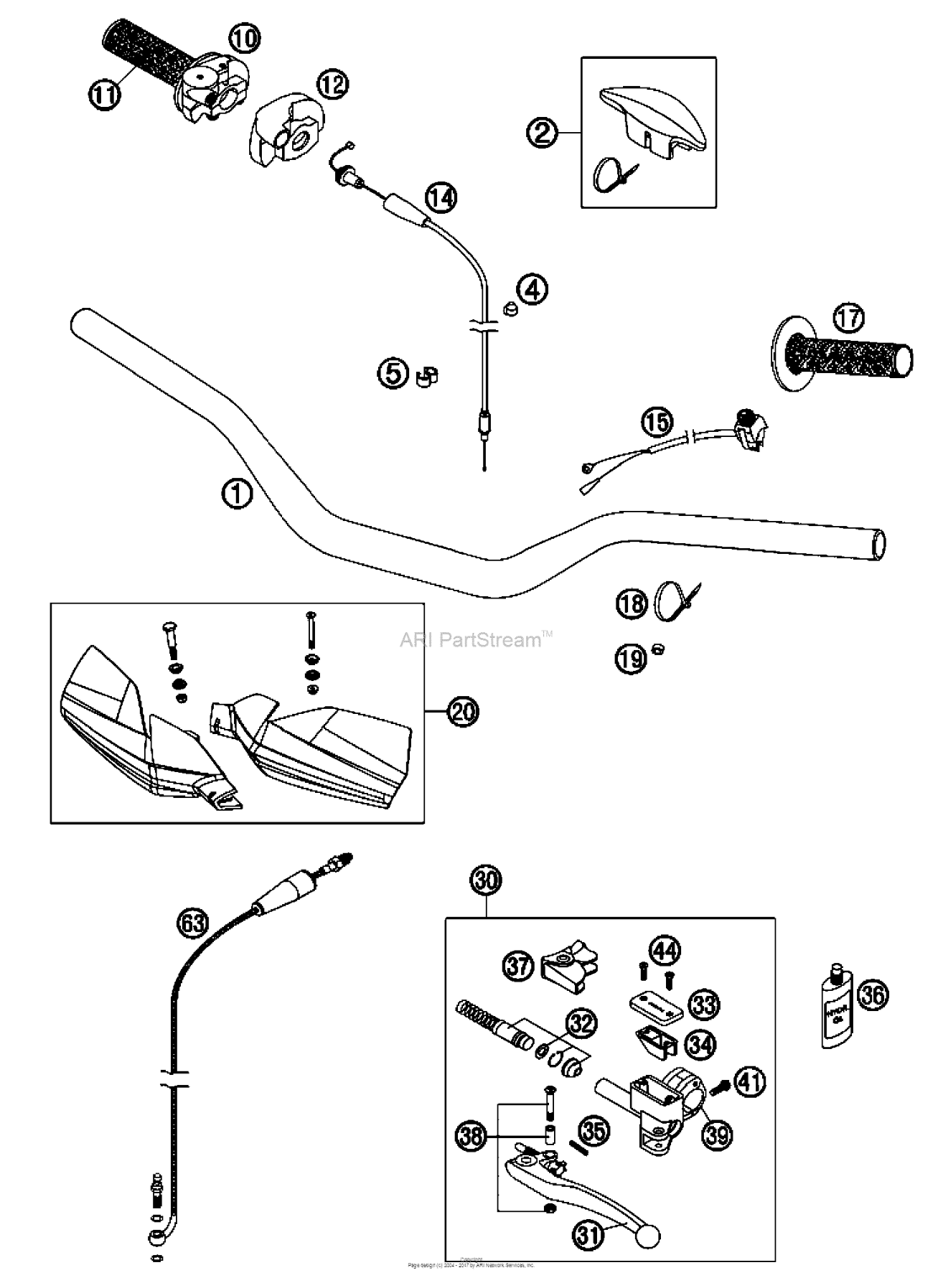

Handlebar, Controls Diagram KTM 200 200 XC
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5480200130017 Handlebar neken d=28mm exc 07D=28MM 07 |
5480200130017 |
US $192.39 |
||
|
2
|
2
59002002000
Superseded By 77202002100
05;(As required) |
59002002000 |
— | ||
|
4
|
4
57013072000 Wiring holder 12mm05;(As required) |
57013072000 |
US $3.50 |
||
|
5
|
5
60111094000 Clamp 5/7 mm 0606 |
60111094000 |
US $3.54 |
||
|
10
|
10
54802010000
Throttle Grip Cpl. 2St. 13
04 |
54802010000 |
— | ||
| replacement | |||||
|
10
|
10
51502010200 Throttle Grip Cpl. 2St. 1304 |
51502010200 |
US $67.97 |
||
|
11
|
11
54802013000
Grip-Set Gray/orange 09
Not Available
04 Not Available |
54802013000 |
— | ||
| replacement | |||||
|
11
|
11
54802021200 Grip-set gray/orange 0904 Not Available |
54802021200 |
US $28.29 |
||
|
12
|
12
50302020000 Protection Cover '97'97 |
50302020000 |
US $16.75 |
||
|
14
|
14
50302091000
Throttle c. 125-380 dom./keih.
'97 |
50302091000 |
— | ||
| replacement | |||||
|
14
|
14
51502091200 Throttle Cable 2-St. 2014'97 |
51502091200 |
US $39.20 |
||
|
15
|
15
50311089200 Short Circuit Button 0202 |
50311089200 |
US $50.97 |
||
|
17
|
17
54802039000
Grip-Set Gray/orange 09
Not Available
04 Not Available |
54802039000 |
— | ||
| replacement | |||||
|
17
|
17
54802021200 Grip-set gray/orange 0904 Not Available |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black04 Not Available |
44011076200 |
US $0.39 |
||
|
19
|
19
50301089000 Spacer bushing 6x10x504 Not Available |
50301089000 |
US $1.58 |
||
|
20
|
20
7700207900004 Hand guards cpl.l/s+r/s or. 0606 |
7700207900004 |
US $49.98 |
||
|
30
|
30
50302030200 Master cylinder cpl. 9,5mm 0404 |
50302030200 |
US $304.22 |
||
|
31
|
31
54602031000 Clutch Lever Short Cpl. 20032003 |
54602031000 |
US $42.99 |
||
|
31
|
31
59002031000 Clutch Lever Long Cpl. 20032003;(As required) |
59002031000 |
US $42.99 |
||
|
32
|
32
59002032000 Rep.kit Piston 9,5Mm Rac. 20002000 |
59002032000 |
US $65.01 |
||
|
33
|
33
50302033100 Cover hyd.clutch 2t 20002000 |
50302033100 |
US $24.04 |
||
|
34
|
34
50302034000 Rubber for reservoir '98'98 |
50302034000 |
US $16.18 |
||
|
35
|
35
59002035000 Spring for clutch lever 0303 |
59002035000 |
US $5.46 |
||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 Ml03 |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037000 Protect.cap For Lever Perch'98'98 |
50302037000 |
US $20.74 |
||
|
38
|
38
50302038000 Lever Screw Cpl. 125-200 '98'98 |
50302038000 |
US $20.35 |
||
|
39
|
39
50302030150 Clamp With Pin 20002000 |
50302030150 |
US $34.46 |
||
|
41
|
41
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
44
|
44
0965040123 Flat head screw din0965-m 4x12TX30 |
0965040123 |
US $0.56 |
||
|
63
|
63
50332063200 Clutch pipe l=970mm 04L=970MM 04 |
50332063200 |
US $88.57 |
||
