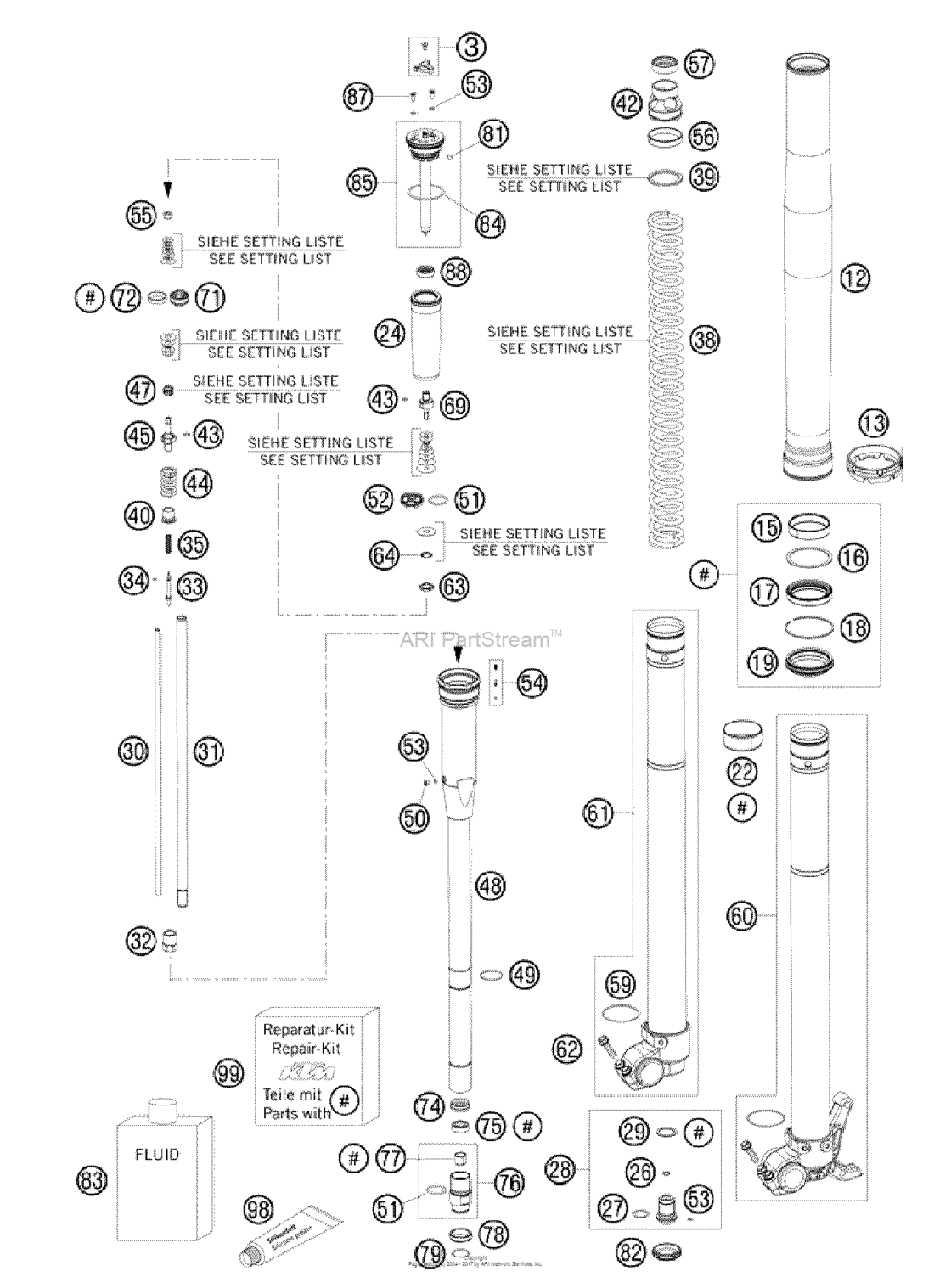

Front Fork, Disassembled Diagram KTM 200 200 XC
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
48600736 Outer tube l577 d54/60mm 2l07 |
48600736 |
US $435.66 |
||
|
3
|
3
486008S
Adjusting Knob + Screw
07 |
486008S |
— | ||
|
3
|
3
48600698 Fork protection ring 0808 |
48600698 |
US $9.57 |
||
|
3
|
3
48600464 Piston rod sxs 200503 |
48600464 |
US $134.74 |
||
|
5
|
5
48600429 Du-bush d48xd52x12ddl0208 |
48600429 |
US $36.48 |
||
| replacement | |||||
|
5
|
5
48601009 Guiding Bush 48X52X12 R1108 |
48601009 |
US $13.23 |
||
|
6
|
6
4860003
Support Ring 50 X 5 7,6 X 1,5
08 |
4860003 |
— | ||
|
7
|
7
48600347
Oil Seal Ring 48X57,8X9,5
03 |
48600347 |
— | ||
| replacement | |||||
|
7
|
7
48601414 OIL SEAL RING 48X57,9X11,403 |
48601414 |
US $26.38 |
||
|
8
|
8
48600070 Lock washer sb5803 |
48600070 |
US $2.35 |
||
|
9
|
9
48600400
Dust Seal
03 |
48600400 |
— | ||
| replacement | |||||
|
9
|
9
48600816 Dust seal03 |
48600816 |
US $27.03 |
||
|
22
|
22
48600428 Guiding Bush 47X49X20 R1103 |
48600428 |
US $36.48 |
||
| replacement | |||||
|
22
|
22
48601008 Guiding Bush 47X49X20 R1103 |
48601008 |
US $13.23 |
||
|
24
|
24
4860028
Membrane
03 |
4860028 |
— | ||
|
26
|
26
4860030
O-Riig Nbr 9,5X,5
03 |
4860030 |
— | ||
|
27
|
27
46808
O-Ring Nbr 1 7X2 Pa
03 |
46808 |
— | ||
|
28
|
28
4800280S
Screw Bush M20X1 L=33 Cpl
03 |
4800280S |
— | ||
|
29
|
29
48600275 Copper washer 20,5x26x103 |
48600275 |
US $7.41 |
||
|
30
|
30
48600269 Adjusting tube l=37103 |
48600269 |
US $23.41 |
||
|
32
|
32
48600459 Counternut m12x1 ws1703 |
48600459 |
US $21.05 |
||
|
33
|
33
48600277 Adjuster needle 0707 |
48600277 |
US $9.33 |
||
|
34
|
34
48600298 O-ring 2x1,5 nbr07 |
48600298 |
US $4.28 |
||
|
35
|
35
48600444 Rebound spring c=4n/mm07 |
48600444 |
US $3.52 |
||
|
38
|
38
940027S
Spring 4,4 N/mm Set D=5,1Mm
(As required) |
940027S |
— | ||
|
38
|
38
940028S
Spring 4,6 N /mm Set D=5,1Mm
(As required) |
940028S |
— | ||
|
38
|
38
940029S
Polished Spring 4,8 N/mm
(As required) |
940029S |
— | ||
|
38
|
38
940030S
Spring 5,0 N/mm
(As required) |
940030S |
— | ||
|
38
|
38
940059S
Spring 4,0 N/mm Set
(As required) |
940059S |
— | ||
|
38
|
38
940060S
Spring 4,2 N/mm Set D=5,0Mm
(As required) |
940060S |
— | ||
|
39
|
39
48600456 Spacer 43x35x2,5(As required) |
48600456 |
US $28.70 |
||
|
39
|
39
48600457 Spacer 43x35x5(As required) |
48600457 |
US $28.70 |
||
|
39
|
39
48600458 Spacer 43x35x1,5(As required) |
48600458 |
US $28.70 |
||
|
40
|
40
48600525 Guiding bush rebound spring(As required) |
48600525 |
US $24.72 |
||
|
42
|
42
48600520 Spring support(As required) |
48600520 |
US $51.90 |
||
|
43
|
43
48600299 O-ring 6x1,2 nbr(As required) |
48600299 |
US $3.52 |
||
|
44
|
44
48600578 Spring reb. l=32 c=37 di=13,9(As required) |
48600578 |
US $8.25 |
||
|
45
|
45
48600576 Piston rod rebound(As required) |
48600576 |
US $14.28 |
||
|
47
|
47
35480377 Spring check valve d=0,5(As required) |
35480377 |
US $2.53 |
||
|
47
|
47
48600382 Shuttle valve spring c=0,4(As required) |
48600382 |
US $2.67 |
||
|
48
|
48
48600519S3 Membrane holder(As required) |
48600519S3 |
US $324.19 |
||
| replacement | |||||
|
48
|
48
48600519E3 MEMBRANE HOLDER WP(As required) |
48600519E3 |
US $347.60 |
||
|
49
|
49
48600512 Lock washer d=25,5(As required) |
48600512 |
US $4.51 |
||
|
50
|
50
48600542 Ah screw m4x6(As required) |
48600542 |
US $1.77 |
||
|
51
|
51
46811499 O-ring nbr 21x2(As required) |
46811499 |
US $1.48 |
||
|
52
|
52
48600047 Piston compression d=27,9(As required) |
48600047 |
US $49.96 |
||
|
53
|
53
50180222 O-ring nbr 4x1,5(As required) |
50180222 |
US $1.02 |
||
|
54
|
54
48600518S
Pin valve set
(As required) |
48600518S |
— | ||
|
55
|
55
40540486 Nut m6x0,5 rebound(As required) |
40540486 |
US $5.20 |
||
|
56
|
56
48600744 Guide ring 44 x39(As required) |
48600744 |
US $5.12 |
||
|
57
|
57
48600577 Ring spring-support(As required) |
48600577 |
US $7.99 |
||
|
59
|
59
48600113 Washer 32x42x2,5(As required) |
48600113 |
US $11.58 |
||
|
60
|
60
48600690S2
Axle Clamp L/s + Tube Cpl
09 |
48600690S2 |
— | ||
| replacement | |||||
|
60
|
60
48600863S1 Fork ax.pass + tube cpl.09 |
48600863S1 |
US $787.17 |
||
|
61
|
61
48600691S2
Axle Clamp R/s + Tube Cpl
09 |
48600691S2 |
— | ||
| replacement | |||||
|
61
|
61
48600864S1 Fork ax.pass + tube cpl.09 |
48600864S1 |
US $726.16 |
||
|
62
|
62
0025080256 Hh Collar Screw M8X25 Tx40TX40 |
0025080256 |
US $4.10 |
||
|
63
|
63
48600163 Check valve nut m6x0,5 d=2TX40 |
48600163 |
US $13.80 |
||
|
64
|
64
48600202 Spring check valve d=0,7TX40 |
48600202 |
US $2.28 |
||
|
69
|
69
48600509 Piston rod compressionTX40 |
48600509 |
US $20.60 |
||
|
71
|
71
48600575 Piston rebound sx 20072007 |
48600575 |
US $26.96 |
||
|
72
|
72
48600455 Piston ring 5x1x682007 |
48600455 |
US $13.80 |
||
|
74
|
74
48600296 Ring d=23,45x2,652007 |
48600296 |
US $11.93 |
||
|
75
|
75
48600471 Piston rod sealing2007 |
48600471 |
US $57.66 |
||
|
76
|
76
48600546S Screw sleeve m24,5x1 cpl.2007 |
48600546S |
US $86.16 |
||
|
77
|
77
48600430 Du bush for piston rod2007 |
48600430 |
US $5.53 |
||
|
78
|
78
48600709 Check valve stop2007 |
48600709 |
US $20.91 |
||
|
79
|
79
48600446 Lock washer d=202007 |
48600446 |
US $3.52 |
||
|
81
|
81
15080017 Silicon cap2007 |
15080017 |
US $4.39 |
||
|
82
|
82
48600692 Rubber cap d=26,42007 |
48600692 |
US $5.90 |
||
|
83
|
83
48600401S1 Fork Oil Sae4 5L2005 |
48600401S1 |
US $273.85 |
||
| replacement | |||||
|
83
|
83
48601166S1 Fork Oil Sae4 5L2005 |
48601166S1 |
US $218.08 |
||
|
84
|
84
40140024 O-ring nbr 43x22005 |
40140024 |
US $3.32 |
||
|
85
|
85
48600516S1 Screw cap cpl. l=1252005 |
48600516S1 |
US $115.79 |
||
| replacement | |||||
|
85
|
85
48600516E1 SCREW CAP L=1252005 |
48600516E1 |
US $108.49 |
||
|
87
|
87
48600526 Screw m4x102005 |
48600526 |
US $1.48 |
||
|
88
|
88
48600514 Membrane sleeve2005 |
48600514 |
US $4.54 |
||
|
98
|
98
T511 Silicone grease f. dust stri2005 |
T511 |
US $132.91 |
||
|
99
|
99
R14014
Repair-kit gasket 48mm 0
2005 |
R14014 |
— | ||
| replacement | |||||
|
99
|
99
R14018 Repair kit seals cc 20102005 |
R14018 |
US $166.94 |
||
