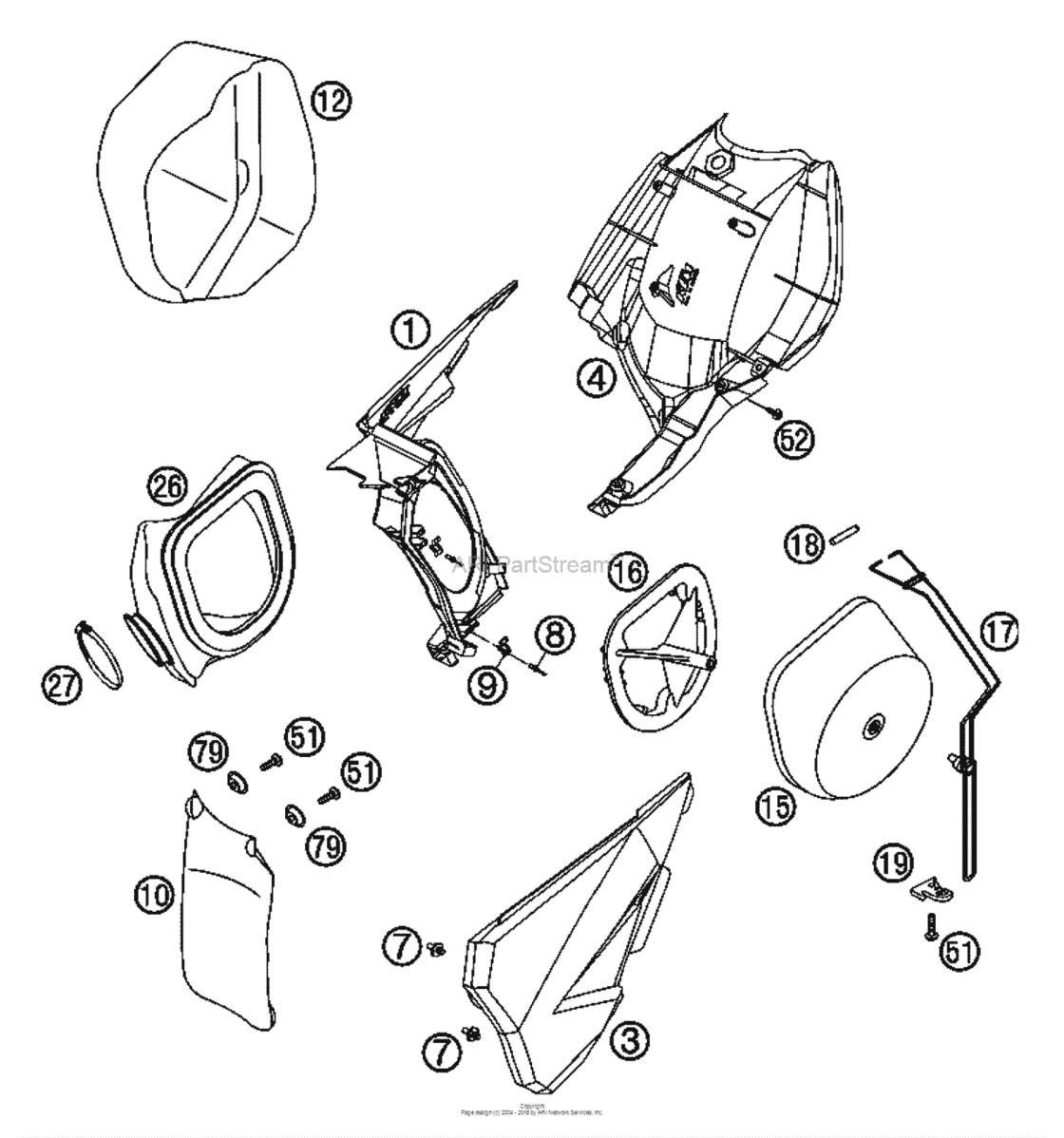

Air Filter Box Diagram KTM 200 200 XC-W
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54806001051 Filter wall 03(As required) |
54806001051 |
US $35 |
||
|
3
|
3
54806003000 Filter box cover 03(As required) |
54806003000 |
US $46.61 |
||
|
4
|
4
54806001052 Rear part filter box 03(As required) |
54806001052 |
US $39.76 |
||
|
7
|
7
54806008051 Quick release-nipple 03(As required) |
54806008051 |
US $2.04 |
||
|
8
|
8
54806108052 Blind rivet 3,3x9,7 grooved 04(As required) |
54806108052 |
US $1.21 |
||
|
9
|
9
54806008050 Quick release-spring hanger(As required) |
54806008050 |
US $1.33 |
||
|
10
|
10
50306010000 Fender for filter box '98(As required) |
50306010000 |
US $19.58 |
||
|
12
|
12
50306012000
Throttle cap 125-380egs cpl.98
(As required) |
50306012000 |
— | ||
|
15
|
15
59006015000 Air filter racing 2001(As required) |
59006015000 |
US $40.80 |
||
|
16
|
16
54806016000 Filter carrier 2-stroke 04(As required) |
54806016000 |
US $33.98 |
||
|
17
|
17
50306017000 Filter support cpl.2-stroke'98(As required) |
50306017000 |
US $28.54 |
||
|
18
|
18
50306018000 Filter support bush 125-380'98(As required) |
50306018000 |
US $7.33 |
||
|
19
|
19
50306019000
Fasten. device filter support
(As required) |
50306019000 |
— | ||
|
26
|
26
54706026000 Carbu.connect.boot 125-380 '98(As required) |
54706026000 |
US $74.66 |
||
|
27
|
27
51006027000 Hose Clamp 50-70Mm(As required) |
51006027000 |
US $5.66 |
||
|
51
|
51
0017060203
Screw For Plastic K60X20 Sw6
(As required) |
0017060203 |
— | ||
| replacement | |||||
|
51
|
51
0017060205 Screw For Plastic K60X20 Sw6(As required) |
0017060205 |
US $2.24 |
||
|
52
|
52
0009050103
Special screw m 5,0x10
(As required) |
0009050103 |
— | ||
| replacement | |||||
|
52
|
52
0009050106 Ejot Spiral Screw Sf M5X10-K(As required) |
0009050106 |
US $2.60 |
||
|
79
|
79
72210079000 Bucket(As required) |
72210079000 |
US $2.72 |
||
