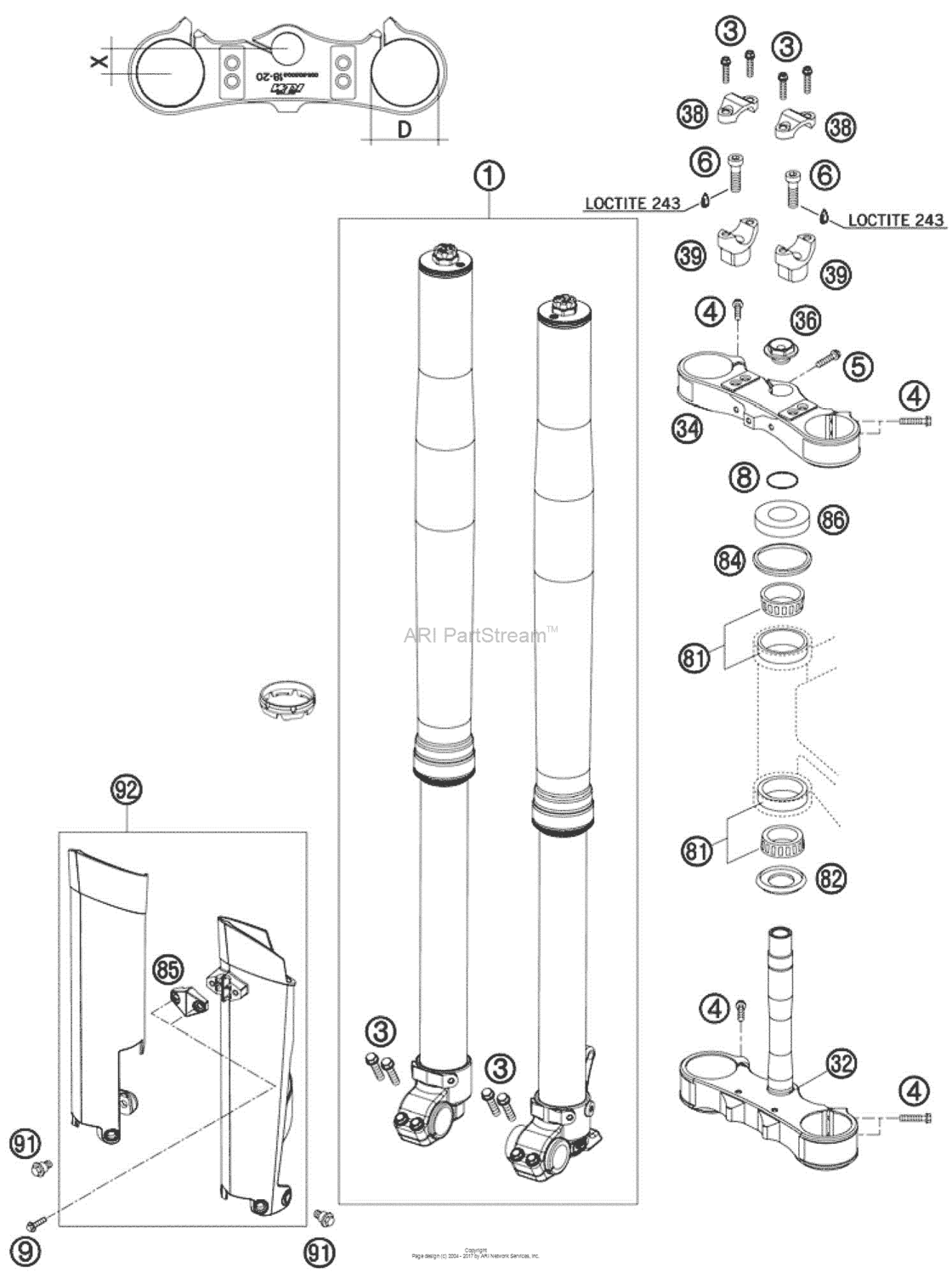

Front Fork, Triple Clamp Diagram KTM 200 200 XC-W
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14187J0201
Fork ktm 125/200 exc/xc-w2010
2009 |
14187J0201 |
— | ||
|
3
|
3
0025080256 Hh Collar Screw M8X25 Tx40TX40 |
0025080256 |
US $4.10 |
||
|
4
|
4
0025080356 Hh Collar Screw M8X35 Tx40TX40 |
0025080356 |
US $3.04 |
||
|
5
|
5
0025080256S Hh collar screw m8x25 tx40TX40 |
0025080256S |
US $2.09 |
||
|
6
|
6
0912100356
Ah screw din6912-m10x35 10.9
10.9 |
0912100356 |
— | ||
| replacement | |||||
|
6
|
6
0032100356S Ah-Collar Screw M10X35 Isa4510.9 |
0032100356S |
US $3.57 |
||
|
8
|
8
0770025035 O-ring 25x3,55 nbr70 0505 |
0770025035 |
US $0.53 |
||
|
9
|
9
0017060204 Screw F. Plastic K60X20Al Sw6WS=6 |
0017060204 |
US $2.89 |
||
| replacement | |||||
|
9
|
9
0017060206 Screw F. Plastic K60X20Al Sw6WS=6 |
0017060206 |
US $2.89 |
||
|
32
|
32
7800103202230
Bot.fork plate cpl. 22mm
WS=6 |
7800103202230 |
— | ||
|
34
|
34
7800103402230 Top triple clamp 22mmWS=6 |
7800103402230 |
US $220.49 |
||
|
36
|
36
54801036000 Steer.head screw m20x1,5 ws=27WS=27 |
54801036000 |
US $11.56 |
||
|
38
|
38
59401038000
Handlebar clamp 28mm 05
WS=27 |
59401038000 |
— | ||
| replacement | |||||
|
38
|
38
77201038000 Handlebar Clamp 28MmWS=27 |
77201038000 |
US $22.83 |
||
|
39
|
39
59401039037 Handleb.supp. d=28mm h=37mm 0505 |
59401039037 |
US $34.36 |
||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 0606 |
54201081100 |
US $53.18 |
||
|
82
|
82
54601084100 O-Ring Support W. Sealing Lip06 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
82
|
82
77701084000 O-Ring Support W. Sealing Lip06 |
77701084000 |
US $21.15 |
||
|
84
|
84
54601184000 Stearing head gasket top06 |
54601184000 |
US $7.74 |
||
|
85
|
85
7800108500030 Clamp f.speed.cable d=6mm 0808 |
7800108500030 |
US $4.39 |
||
|
86
|
86
54201086000 Steering Head Cover08 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head Cover08 |
78101086000 |
US $5.08 |
||
|
91
|
91
59001092050 Special Screw M6X12,5 Ws=8WS=8 |
59001092050 |
US $2.35 |
||
|
92
|
92
7800109410030 Fork Protect. L/s+R/s BlackWS=8 |
7800109410030 |
US $37.28 |
||
| replacement | |||||
|
92
|
92
7800109420030 Fork Protect. L/s+R/s BlackWS=8 |
7800109420030 |
US $37.28 |
||
