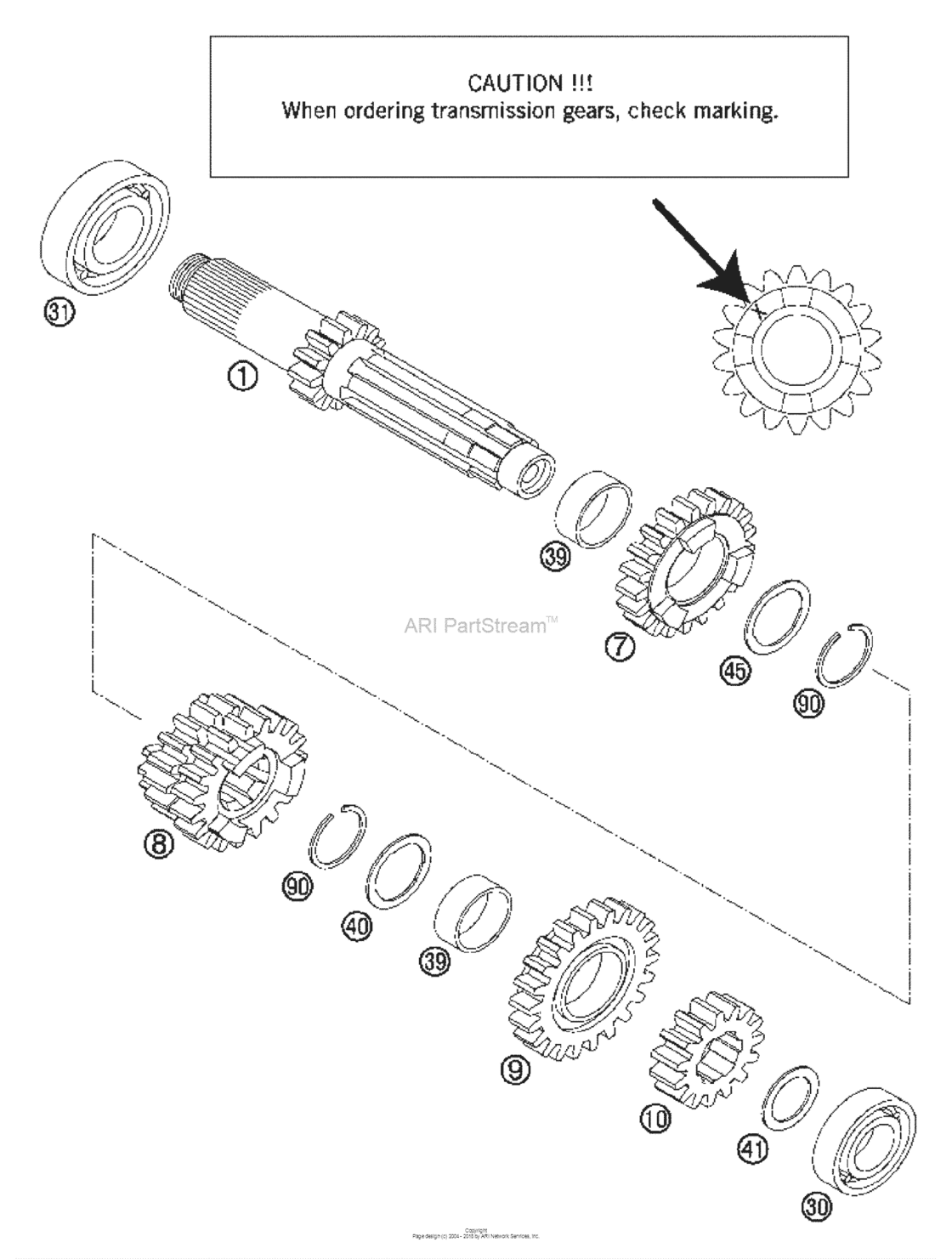

Transmission I Diagram KTM 200 200 XC-W
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50333001144 Main shaft cpl. 12-t '98WITHOUT PRIMARY PINION |
50333001144 |
US $186.59 |
||
|
7
|
7
52333007100 Idler g. 5th g.17-t "5g17h" 04WITHOUT PRIMARY PINION |
52333007100 |
US $65.18 |
||
|
8
|
8
50333008100 Sliding gear 3/4.g. 17/19-t 04WITHOUT PRIMARY PINION |
50333008100 |
US $139.59 |
||
|
9
|
9
50333009400 Idler g.6th g. 22-t "6g22h" 04WITHOUT PRIMARY PINION |
50333009400 |
US $84.98 |
||
|
10
|
10
50333010100 Solid gear 2nd g.15-t"2s15" 03WITHOUT PRIMARY PINION |
50333010100 |
US $58.23 |
||
|
30
|
30
0625160031 Grooved ball b. 16003 c4 j1WITHOUT PRIMARY PINION |
0625160031 |
US $20.60 |
||
|
31
|
31
0625060042 Ball bearing 6004 tn9 c4WITHOUT PRIMARY PINION |
0625060042 |
US $16.20 |
||
|
39
|
39
50333020000 Idler gear bush. 22x25x11,1 aWITHOUT PRIMARY PINION |
50333020000 |
US $18.43 |
||
|
40
|
40
50333040000 Stop disc 22,2x27,8x1 aWITHOUT PRIMARY PINION |
50333040000 |
US $4.39 |
||
|
41
|
41
50333041000 Stop disc 17,2x26x1 bWITHOUT PRIMARY PINION |
50333041000 |
US $1.94 |
||
|
45
|
45
50333045000 Stop disk 22,2x27,8x1WITHOUT PRIMARY PINION |
50333045000 |
US $4.42 |
||
|
90
|
90
50133090000 Lock ring 22x1,2WITHOUT PRIMARY PINION |
50133090000 |
US $1.28 |
