	Description	OEM Part #	Price
1	1 7800200100017 Handlebar d=28mm 2000	7800200100017	US $183.19
2	2 77202002144 Bar Pad Cpl 2000	77202002144	US $26.96
3	3 7770207900004 Handguards Cpl. L+R Orange 2000	7770207900004	—
	replacement
3	3 7770217900004 Handguards Cpl. L+R Orange 2000	7770217900004	US $56.34
4	4 78111074000 Starter Button Grey 13 13	78111074000	US $58.31
8	8 60111094000 Clamp 5/7 mm 06 06	60111094000	US $3.54
10	10 51502010200 Throttle Grip Cpl. 2St. 13 13	51502010200	US $67.97
12	12 50302020000 Protection Cover '97 97	50302020000	US $16.75
13	13 0770021300 O-ring 40,94x2,62 nbr70 97	0770021300	US $2.31
14	14 51502091100 Throttle Cable 2T.dom/keih 13	51502091100	US $57.87
	replacement
14	14 51502091200 Throttle Cable 2-St. 2014 13	51502091200	US $39.20
15	15 50311089200 Short Circuit Button 02 02	50311089200	US $50.97
17	17 78102021000 Grip Set 02	78102021000	US $25.62
18	18 44011076200 Cable tie 200/3,6mm black 02	44011076200	US $0.39
30	30 54802030144 Master Cylinder Cpl 02	54802030144	US $214.10
31	31 54802031000 Clutch lever cpl. brembo 06 06	54802031000	US $45.82
32	32 54802032000 Rep. kit piston 06 06	54802032000	US $43.21
33	33 5480200310030 Cover Hyd. Clutch Cpl. 2014 2014	5480200310030	US $40.39
34	34 54802051000 Valve 2014	54802051000	US $16.88
35	35 54802052000 Bolt kpl. 2014	54802052000	US $26.49
36	36 00062030000 Brake fluid dot5.1 0,25l 2014	00062030000	US $14.35
37	37 54802037000 Protection cap 06 06	54802037000	US $18.77
38	38 54802038100 Lever screw cpl. 06 06	54802038100	US $36.02
39	39 54802046000 Push rod cpl. 06	54802046000	US $20.01
45	45 54802005100 Clamp cpl. 06 06	54802005100	US $23.49
63	63 54832063000 Clutch pipe 06 06	54832063000	US $87.04

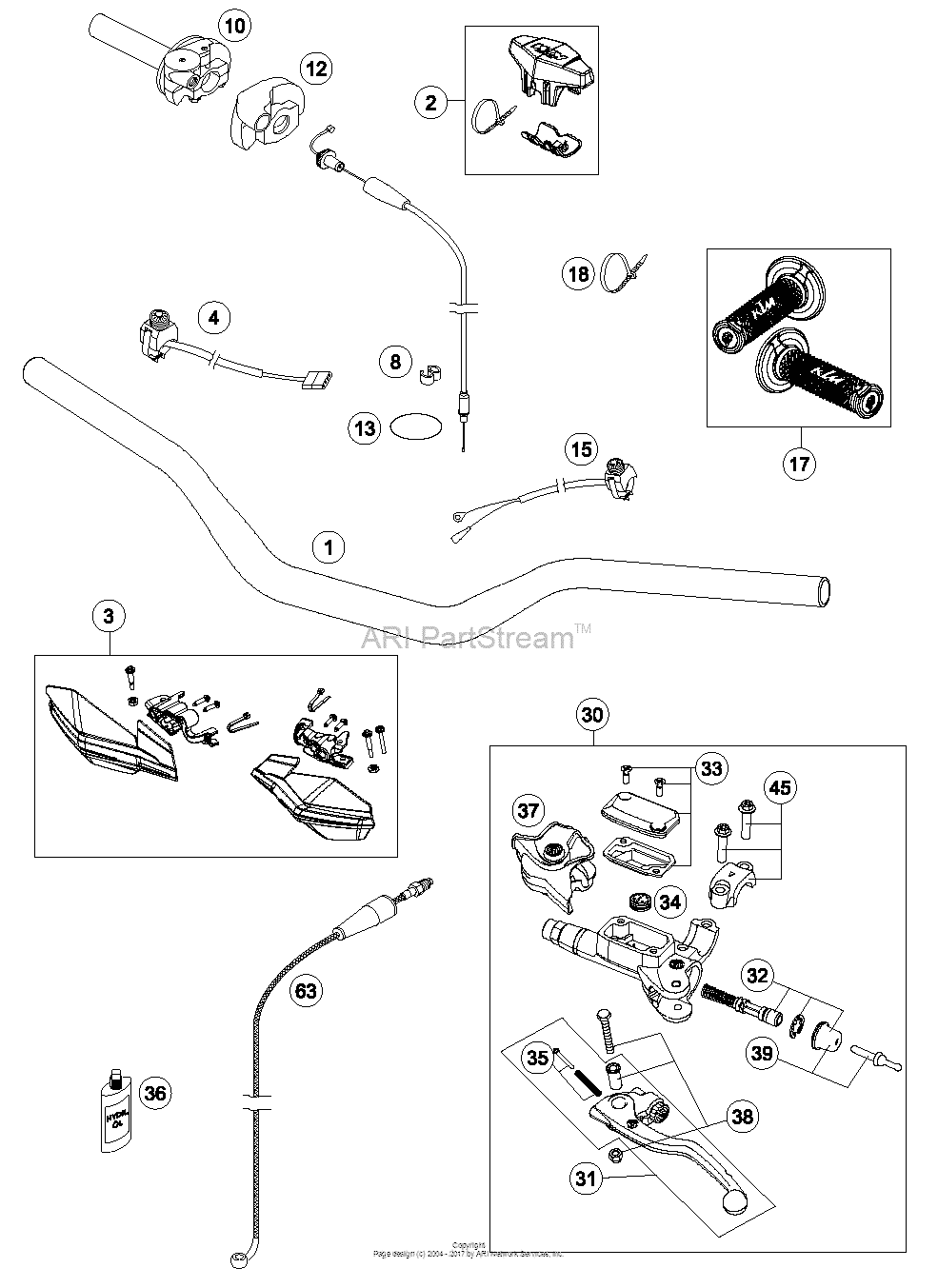

Handlebar, Controls Diagram KTM 200 200 XC-W US/EU 18080460-939422

Handlebar, Controls Diagram KTM 200 200 XC-W US/EU 18080460-939422
