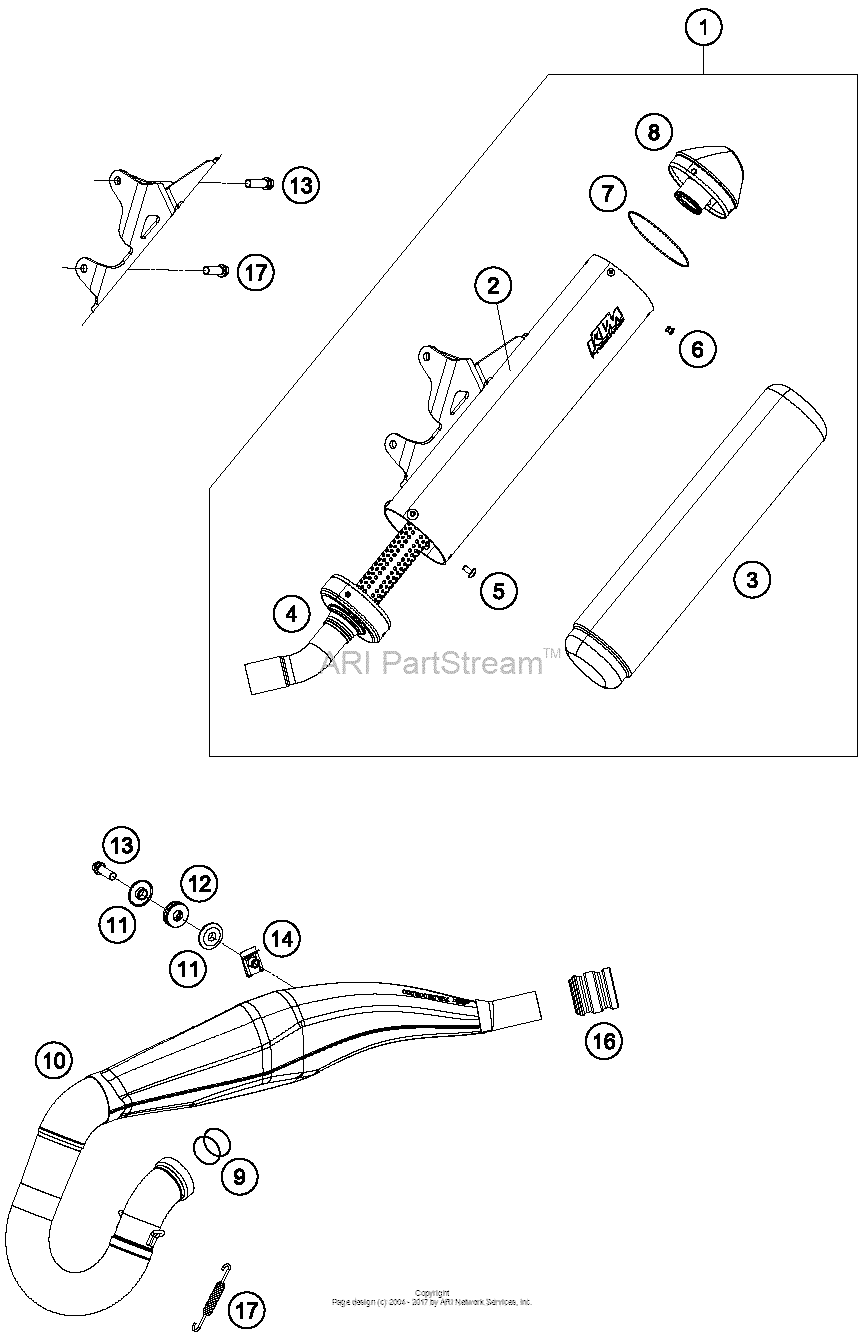

Exhaust System Diagram KTM 200 200 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7250518300059 Silencer UsaAs Required, 11-14 |
7250518300059 |
US $518.59 |
||
|
2
|
2
7250518308059 Silencer Casing UsaAs Required, 11-14 |
7250518308059 |
US $200.60 |
||
|
3
|
3
54805078265 Rock Wool 265GAs Required, 11-14 |
54805078265 |
US $50.90 |
||
|
4
|
4
72505083050 Connecting Cap CplAs Required, 11-14 |
72505083050 |
US $127.25 |
||
|
5
|
5
78105081010 Screw Torx M5X10As Required, 11-14 |
78105081010 |
US $0.61 |
||
|
6
|
6
0011480800 Dummy Rivet 4,8X 8 NiroAs Required, 11-14 |
0011480800 |
US $2.35 |
||
|
7
|
7
0770740015 O-ring 74,00x1,50 fkm 75shAs Required, 11-14 |
0770740015 |
US $2.53 |
||
|
8
|
8
54805083260 Endcap CplAs Required, 11-14 |
54805083260 |
US $87.64 |
||
|
9
|
9
0770380030 O-ring 38,00x3,00 vitonAs Required, 11-14 |
0770380030 |
US $3.52 |
||
|
10
|
10
72505009000 Exhaust ManifoldAs Required, 11-14 |
72505009000 |
US $496.47 |
||
|
11
|
11
59405069000 Bushing for exhaust support 0303 |
59405069000 |
US $5.42 |
||
|
12
|
12
77205068000 Damp. Compon. Black03 |
77205068000 |
US $8.43 |
||
|
13
|
13
0025080256 Hh Collar Screw M8X25 Tx40TX40 |
0025080256 |
US $4.10 |
||
|
14
|
14
54603048000 Range Change Metal Nut M8TX40 |
54603048000 |
US $3.35 |
||
|
16
|
16
50205057000 Silicon sleeve d=29/31mmTX40 |
50205057000 |
US $29.77 |
||
|
17
|
17
50305016000
Ten.spring L=62Mm Ey.moveable
TX40 |
50305016000 |
— | ||
| replacement | |||||
|
17
|
17
A46005016000 TEN.SPRING L=62MM EY.MOVEABLETX40 |
A46005016000 |
US $5.88 |
||
