	Description	OEM Part #	Price
1	1 05187N4201 Fork Freeride 250 As Required, 06-15	05187N4201	—
2	2 0025080206 Hh collar screw m8x20 tx40 TX40	0025080206	US $2.09
3	3 4710109400028 Fork Protector Set 85Sx White TX40	4710109400028	US $25.60
4	4 4710108500028 Clamp For Brake Hose TX40	4710108500028	US $14.54
5	5 0017060206 Screw F. Plastic K60X20Al Sw6 TX40	0017060206	US $2.89
6	6 59001092050 Special Screw M6X12,5 Ws=8 TX40	59001092050	US $2.35
7	7 0025080256 Hh Collar Screw M8X25 Tx40 TX40	0025080256	US $4.10
8	8 77201038000 Handlebar Clamp 28Mm TX40	77201038000	US $22.83
9	9 0032100356S Ah-Collar Screw M10X35 Isa45 TX40	0032100356S	US $3.57
10	10 59401039047 Handleb.supp. D=28Mm H=47Mm 05	59401039047	US $34.99
11	11 70009082000 Axlescrew M20X1.5 05	70009082000	US $10.85
12	12 0025080256S Hh collar screw m8x25 tx40 TX40	0025080256S	US $2.09
13	13 0025080406 Hh collar screw m8x40 tx40 TX40	0025080406	US $2.62
14	14 7000103402030 Top Fork Plate Black TX40	7000103402030	US $244.17
15	15 0770025035 O-ring 25x3,55 nbr70 05 05	0770025035	US $0.53
16	16 78101086000 Steering Head Cover 05	78101086000	US $5.08
17	17 54601184000 Stearing head gasket top 05	54601184000	US $7.74
18	18 54201081100 Tapered Roller Bearing Cpl. 06 06	54201081100	US $53.18
19	19 77701084000 O-Ring Support W. Sealing Lip 06	77701084000	US $21.15
20	20 7000103202030 Bot.triple Clamp Cpl. Bl. 20Mm 06	7000103202030	US $340.95
98	98 00050000930 Stearing Head Rep. Kit 06-15 As Required, 06-15	00050000930	US $98.18
99	99 00050000926 Handlebar Support Kit Freeride As Required	00050000926	US $120.68

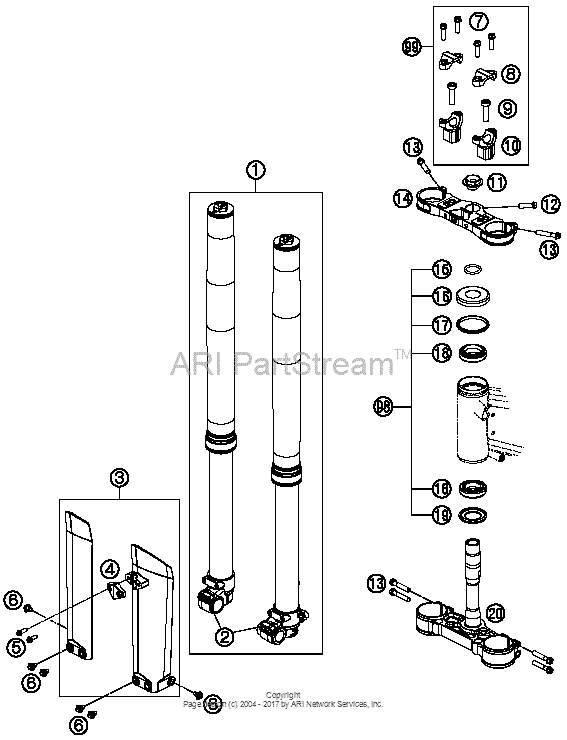

Front Fork, Triple Clamp Diagram KTM 200 200 XC-W US/EU 18080492-939423

Front Fork, Triple Clamp Diagram KTM 200 200 XC-W US/EU 18080492-939423
