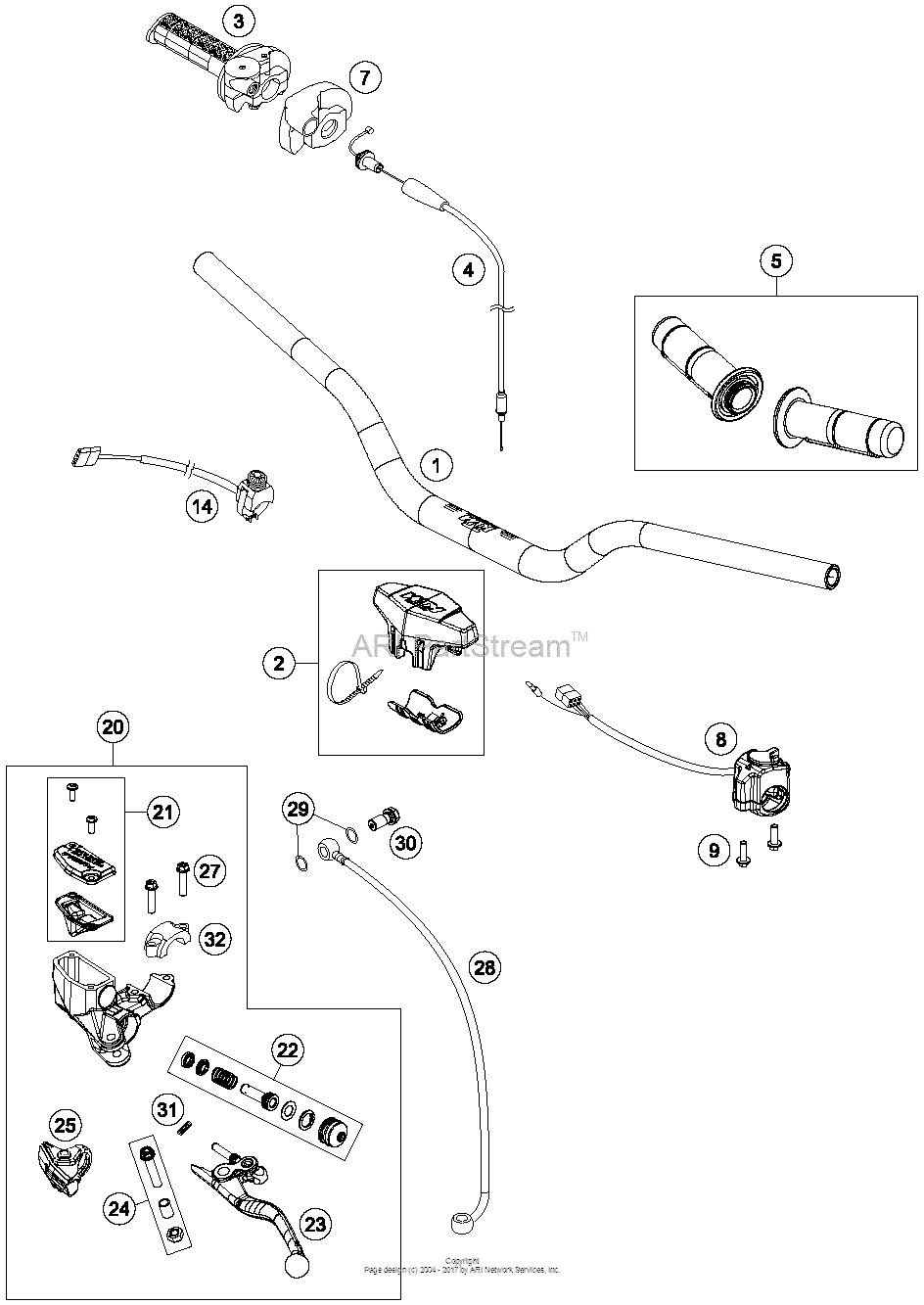

Handlebar, Controls Diagram KTM 200 200 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7000200100030 Handlebar Black D=28Mm04 |
7000200100030 |
US $141.17 |
||
|
2
|
2
77202002144 Bar Pad Cpl04 |
77202002144 |
US $26.96 |
||
|
3
|
3
51502010200 Throttle Grip Cpl. 2St. 1313 |
51502010200 |
US $67.97 |
||
|
4
|
4
51502091200 Throttle Cable 2-St. 20142014 |
51502091200 |
US $39.20 |
||
|
5
|
5
63002021100 Grip set dual compound2014 |
63002021100 |
US $29.16 |
||
|
7
|
7
50302020000 Protection Cover '9797 |
50302020000 |
US $16.75 |
||
|
8
|
8
78111070000 Light Switch97 |
78111070000 |
US $68.15 |
||
|
9
|
9
0014050163 Hh collar screw m 5x16 ws=697 |
0014050163 |
US $1.36 |
||
|
14
|
14
78111074000 Starter Button Grey 1313 |
78111074000 |
US $58.31 |
||
|
20
|
20
72002030100 Master Cylinder Cpl. 10Mm13 |
72002030100 |
US $382.36 |
||
|
21
|
21
72002003000 Cover F. Master Cylinder Cpl13 |
72002003000 |
US $28.42 |
||
|
22
|
22
72002032000 Rep. Kit Piston 10Mm13 |
72002032000 |
US $48.13 |
||
|
23
|
23
72013002000 Lever Cpl13 |
72013002000 |
US $43.98 |
||
|
24
|
24
70002038000 Lever Screw Cpl13 |
70002038000 |
US $26.47 |
||
|
25
|
25
72002037000 Mudcover Clutch Lever13 |
72002037000 |
US $13.77 |
||
|
27
|
27
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
28
|
28
47132063000 Clutch PipeTX30 |
47132063000 |
US $75.45 |
||
|
29
|
29
0770080019 O-ring 8,00x1,00 formulaTX30 |
0770080019 |
US $2.64 |
||
|
30
|
30
47013025000 Hollow screw brake cylinder 0303 |
47013025000 |
US $12.46 |
||
|
31
|
31
72002035000 Spring For Clutch Lever03 |
72002035000 |
US $1.79 |
||
|
32
|
32
72013005000 ClampAs Required |
72013005000 |
US $32.61 |
