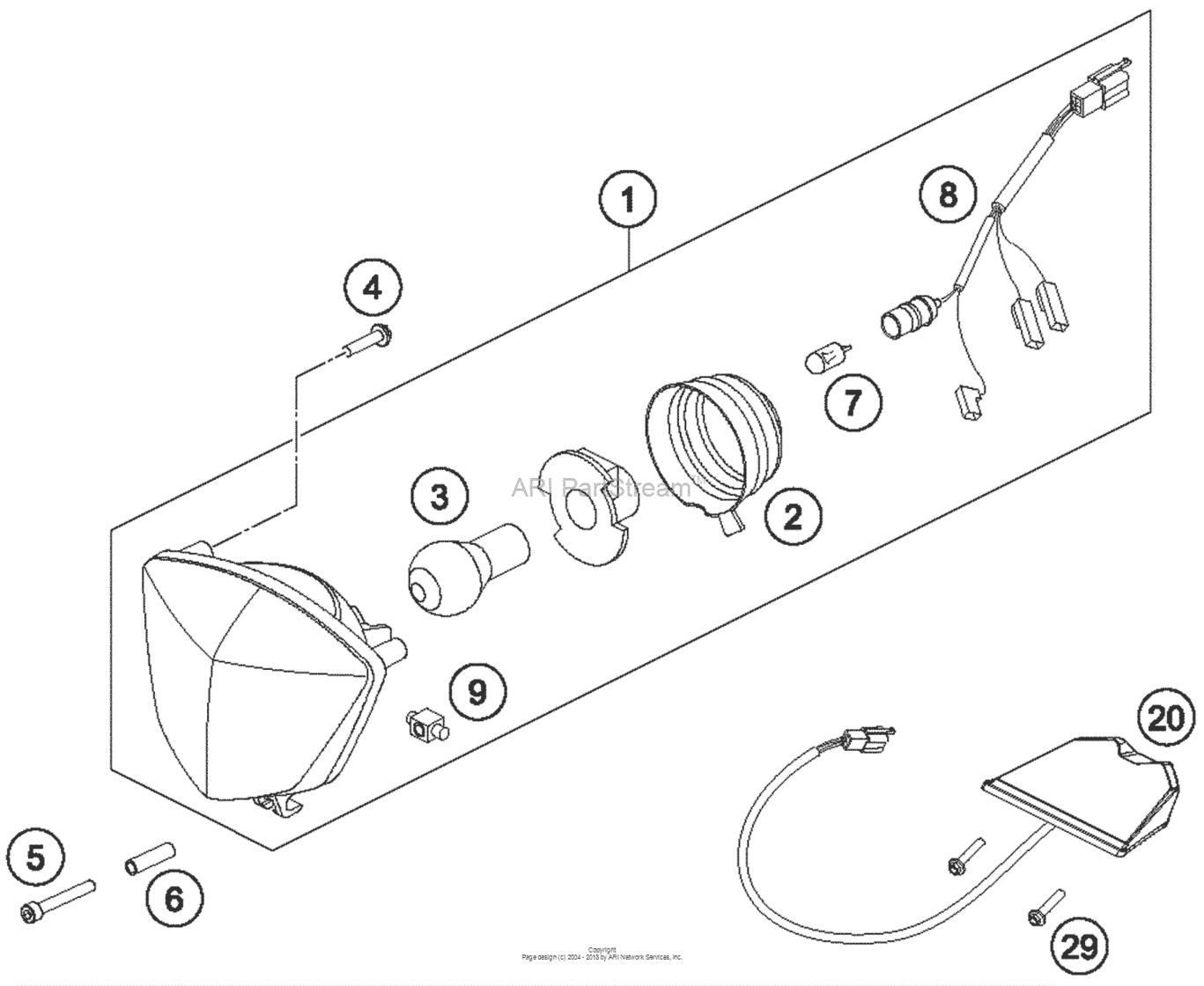

Lighting System Diagram KTM 200 200 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC-W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81214001000 Head light2014 |
81214001000 |
US $134.76 |
||
|
2
|
2
54814001050 Rubber cap for head light 0505 |
54814001050 |
US $12.41 |
||
|
3
|
3
44111038000 Bilux-bulb 12v 35/35w ba20d05 |
44111038000 |
US $16.30 |
||
|
4
|
4
0081050181 Screw for plastic k50x18 t2005 |
0081050181 |
US $0.73 |
||
|
5
|
5
0912050503 Ah screw din912-m5x50 10.905 |
0912050503 |
US $0.66 |
||
|
6
|
6
72008008000 Dist. Hose F. Head Light Mask05 |
72008008000 |
US $1.22 |
||
|
7
|
7
49011435100 Bulb 12V 5W (W2,1X9,5D) Phil05 |
49011435100 |
US $3.81 |
||
|
8
|
8
54811001050 Cable for head light 20052005 |
54811001050 |
US $12.22 |
||
|
9
|
9
81208003010 Insert for head light support2005 |
81208003010 |
US $2.50 |
||
|
20
|
20
72514040000 Rear Light2005 |
72514040000 |
US $128.83 |
||
|
29
|
29
0017060205 Screw For Plastic K60X20 Sw62005 |
0017060205 |
US $2.24 |
