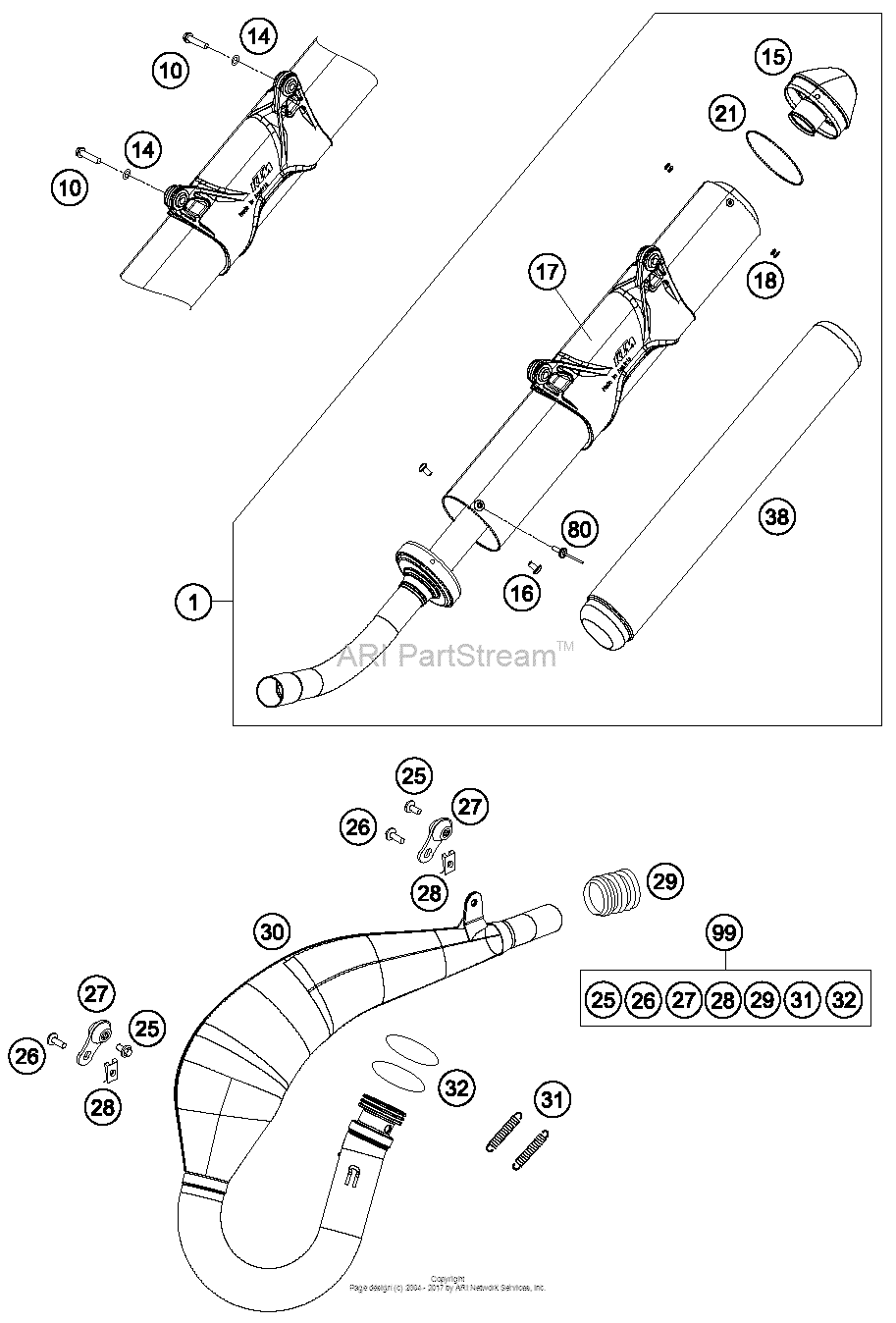

Exhaust System Diagram KTM 200 200 XC-W
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC-W
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
54805083200 Main Silencer 250-300 ExcTX30 |
54805083200 |
US $433.98 |
||
10
|
10
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $2.21 |
||
14
|
14
0137060003 Spring Washer Din0137-B 6TX30 |
0137060003 |
US $0.43 |
||
15
|
15
54805083260 Endcap CplTX30 |
54805083260 |
US $87.64 |
||
16
|
16
58605083010 Screw torx m5x10 05TX30 |
58605083010 |
US $1.70 |
||
17
|
17
54805183085 Silencer Hous. Cpl. W. HangingTX30 |
54805183085 |
US $111.71 |
||
18
|
18
0011480800 Dummy Rivet 4,8X 8 NiroTX30 |
0011480800 |
US $2.35 |
||
21
|
21
0770740015 O-ring 74,00x1,50 fkm 75shTX30 |
0770740015 |
US $2.53 |
||
25
|
25
0024060106 Hh collar screw m6x10 tx30TX30 |
0024060106 |
US $1.97 |
||
26
|
26
0024060156 Hh collar screw m6x15 tx30TX30 |
0024060156 |
US $2.26 |
||
27
|
27
50305012000 Swingelement For Exhaust PipeTX30 |
50305012000 |
US $17.88 |
||
28
|
28
54603048100 Range Change Metal Nut M6TX30 |
54603048100 |
US $3.93 |
||
29
|
29
50205057000 Silicon sleeve d=29/31mmTX30 |
50205057000 |
US $29.77 |
||
30
|
30
52305008600 Exhaust ManifoldTX30 |
52305008600 |
US $480.73 |
||
31
|
31
50305016000 Ten.spring L=62Mm Ey.moveableTX30 |
50305016000 |
US $7.50 |
||
32
|
32
0770440030 O-ring 44,00x3,00 vitonTX30 |
0770440030 |
US $6.05 |
||
38
|
38
54805078315 Rockwool 315GTX30 |
54805078315 |
US $60.52 |
||
80
|
80
0011401200 Dummy Rivet 4,0X12 AluAs Required |
0011401200 |
US $0.90 |
||
99
|
99
00050000811 Exhaust Hardware Kit 11-1411-14, As Required |
00050000811 |
US $103.96 |
