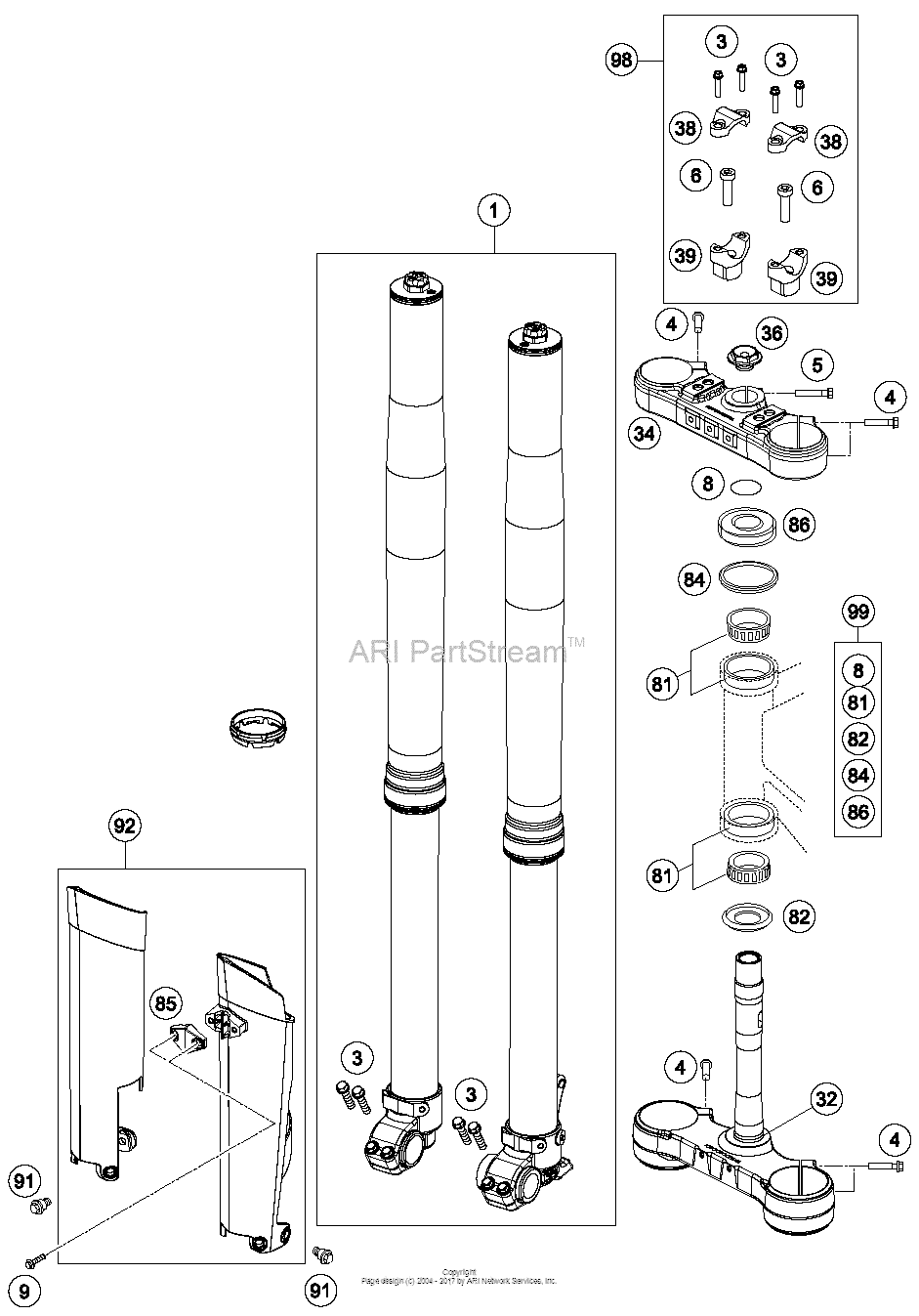

Front Fork, Triple Clamp Diagram KTM 200 200 XC-W
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC-W
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
14187P6101 Fork 125/200 Exc/xc-W 16TX40 |
14187P6101 |
US $2,820.86 |
||
3
|
3
0025080256 Hh Collar Screw M8X25 Tx40TX40 |
0025080256 |
US $2.09 |
||
4
|
4
0025080306 Hh collar screw m8x30 tx40TX40 |
0025080306 |
US $3.38 |
||
5
|
5
0025080356 Hh Collar Screw M8X35 Tx40TX40 |
0025080356 |
US $3.04 |
||
6
|
6
0032100356S Ah-Collar Screw M10X35 Isa45TX40 |
0032100356S |
US $3.57 |
||
8
|
8
0770025035 O-ring 25x3,55 nbr70 05TX40 |
0770025035 |
US $0.53 |
||
9
|
9
0017060206 Screw F. Plastic K60X20Al Sw6TX40 |
0017060206 |
US $2.89 |
||
32
|
32
78101132122 Bottom Triple Clamp CplTX40 |
78101132122 |
US $183.75 |
||
34
|
34
78101034022 Top Triple Clamp X=22MmTX40 |
78101034022 |
US $127.08 |
||
36
|
36
70009082000 Axlescrew M20X1.5TX40 |
70009082000 |
US $10.85 |
||
38
|
38
77201038000 Handlebar Clamp 28MmTX40 |
77201038000 |
US $22.83 |
||
39
|
39
59401039032 Handleb.supp. d=28mm h=32mm 05As Required |
59401039032 |
US $36.67 |
||
39
|
39
59401039037 Handleb.supp. d=28mm h=37mm 05As Required |
59401039037 |
US $34.36 |
||
39
|
39
59401039042 Handleb.supp. d=28mm h=42mm 05As Required |
59401039042 |
US $36.67 |
||
81
|
81
54201081100 Tapered Roller Bearing Cpl. 06As Required |
54201081100 |
US $53.18 |
||
82
|
82
77701084000 O-Ring Support W. Sealing LipAs Required |
77701084000 |
US $21.15 |
||
84
|
84
54601184000 Stearing head gasket topAs Required |
54601184000 |
US $7.74 |
||
85
|
85
7770108500028
Clamp Brake Hose
As Required |
7770108500028 |
— | ||
replacement | |||||
85
|
85
7770108510028 Clamp Brake HoseAs Required |
7770108510028 |
US $3.91 |
||
86
|
86
78101086000 Steering Head CoverAs Required |
78101086000 |
US $5.08 |
||
91
|
91
59001092050 Special Screw M6X12,5 Ws=8As Required |
59001092050 |
US $2.02 |
||
92
|
92
7770109400028C Fork Protection Set Exc 16As Required |
7770109400028C |
US $52.48 |
||
98
|
98
00050000921 Handlebar Support Kit D28/h37As Required |
00050000921 |
US $106.79 |
||
99
|
99
00050000930 Stearing Head Rep. Kit 06-15As Required |
00050000930 |
US $98.18 |
