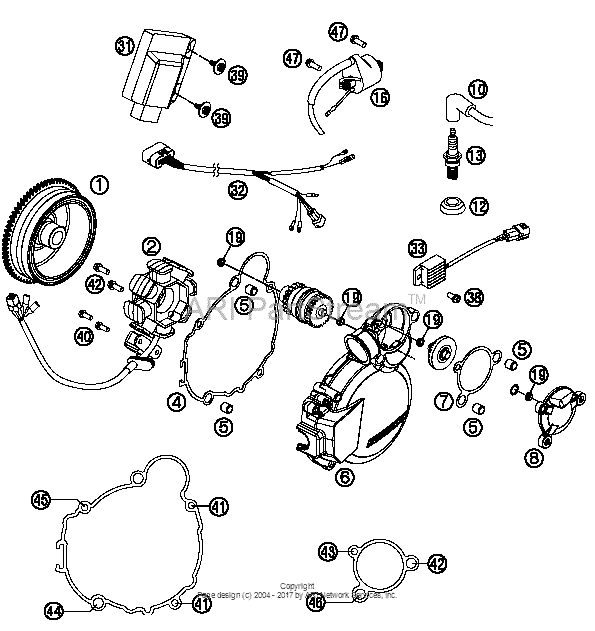

Ignition System Diagram KTM 200 200 XC-W
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55139005000 Flywheel kokusanAs Required, 11-13 |
55139005000 |
US $362.19 |
||
|
2
|
2
55139004000 Stator kokusanAs Required, 11-13 |
55139004000 |
US $187.51 |
||
| replacement | |||||
|
2
|
2
55139004100 StatorAs Required, 11-13 |
55139004100 |
US $187.51 |
||
|
4
|
4
52430040000 Gasket Ignition Cover E-StartAs Required, 11-13 |
52430040000 |
US $7.92 |
||
|
5
|
5
49030090000 Dowel 9,8 x 7 x 10As Required, 11-13 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
5
|
5
49030090100 Dowel 9,8 X7X10As Required, 11-13 |
49030090100 |
US $2.60 |
||
|
6
|
6
52430002000 Ignition Cover E-StartAs Required, 11-13 |
52430002000 |
US $118.47 |
||
|
7
|
7
52430041000 Gasket Ignition Cover OutsideAs Required, 11-13 |
52430041000 |
US $3.25 |
||
|
8
|
8
52430045000 Ignition Cover Outside E-StartAs Required, 11-13 |
52430045000 |
US $30.70 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.0404 |
47039090000 |
US $24.26 |
||
|
12
|
12
50231012000 Sealing cup for spark plug04 |
50231012000 |
US $3.91 |
||
|
13
|
13
54331093310 Spark plug ngk br8eg04 |
54331093310 |
US $8.94 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"04 |
59039006000 |
US $132.38 |
||
|
19
|
19
55140030100 Collar bushing04 |
55140030100 |
US $2.87 |
||
|
31
|
31
52339131100 Elektronicbox 200 Xc/exc 1212 |
52339131100 |
US $291.57 |
||
|
32
|
32
54839032300 Wiring harness f.cdi 2-st.sx0712 |
54839032300 |
US $67.86 |
||
|
33
|
33
80011034000 Voltage regulator 0404 |
80011034000 |
US $148.85 |
||
|
38
|
38
0023060123 Collar screw m6x12 tx04 |
0023060123 |
US $0.87 |
||
|
39
|
39
0081645121 Ejot Delta Pt Screw 45X12-Z04 |
0081645121 |
US $1.17 |
||
|
40
|
40
0014050123 Hh collar screw m 5x12 ws=604 |
0014050123 |
US $2.19 |
||
|
41
|
41
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
42
|
42
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
43
|
43
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
44
|
44
0025060356 Hh collar screw m6x35 tx30TX30 |
0025060356 |
US $6.15 |
||
|
45
|
45
0025060556 Hh collar screw m6x55 tx30TX30 |
0025060556 |
US $2.52 |
||
|
46
|
46
0025060756 Hh collar screw m6x75 tx30TX30 |
0025060756 |
US $3.89 |
||
|
47
|
47
0026060186 Collar Screw M6X18 Isa30TX30 |
0026060186 |
US $0.58 |
||
