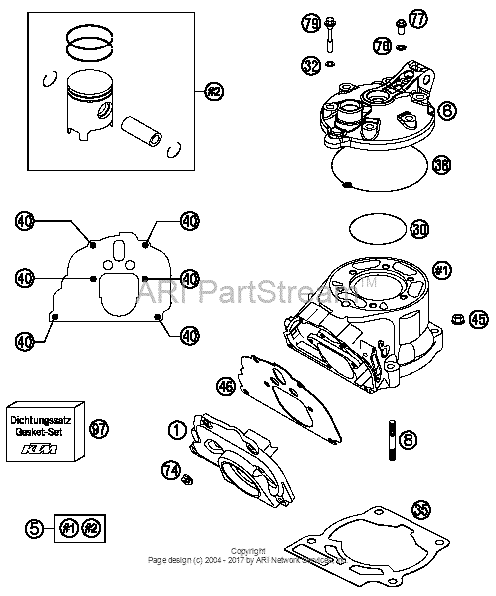

Cylinder, Cylinder Head Diagram KTM 200 200 XC-W
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52337001200
Intermediate flange 200 2000
2000 |
52337001200 |
— | ||
|
5
|
5
52330038300 Cylinder + piston cpl.2000 |
52330038300 |
US $1,134.09 |
||
|
6
|
6
52330006300 Cylinder Head Exc 200 Mod. 1313 |
52330006300 |
US $173.66 |
||
|
8
|
8
0835080355 Stud din0835-m 8x35 10.913 |
0835080355 |
US $2.23 |
||
|
30
|
30
0770720021 O-ring 72,00x2,00 viton13 |
0770720021 |
US $4.91 |
||
|
32
|
32
0603070121 Cu-seal ring din7603- 7,3x12x113 |
0603070121 |
US $1.09 |
||
|
35
|
35
50330035020 Cylinder base gasket 0,20mmAs Required |
50330035020 |
US $5.41 |
||
|
35
|
35
50330035025 Cylinder base gasket 0,25mmAs Required |
50330035025 |
US $4.64 |
||
|
35
|
35
50330035040 Cylinder base gasket 0,40mmAs Required |
50330035040 |
US $5.03 |
||
|
35
|
35
50330035050 Cylinder base gasket 0,50mmAs Required |
50330035050 |
US $4.37 |
||
|
35
|
35
50330035075 Cylinder base gasket 0,75mmAs Required |
50330035075 |
US $7.38 |
||
|
38
|
38
52330137000 Cyl.head seal ring 200 20032003 |
52330137000 |
US $11.39 |
||
|
40
|
40
0014050203 Hh collar screw m 5x20 ws=62003 |
0014050203 |
US $2.79 |
||
|
45
|
45
50330045000 Hh collar nut m 8 ws=122003 |
50330045000 |
US $2.19 |
||
|
46
|
46
52337046100 Intermed.gasket 1,1mm 200 20002000 |
52337046100 |
US $7.31 |
||
|
74
|
74
51005074000 Retaining plate2000 |
51005074000 |
US $2.11 |
||
|
77
|
77
0025060106 Hh collar screw m6x10 tx30TX30 |
0025060106 |
US $1.58 |
||
|
78
|
78
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
||
|
79
|
79
50030079000 Cyl. head bolt m 7x40 ws=10TX30 |
50030079000 |
US $8.70 |
||
|
97
|
97
50330097000 Gasket set cyl. 125/200 98-0698-11 |
50330097000 |
US $115.48 |
