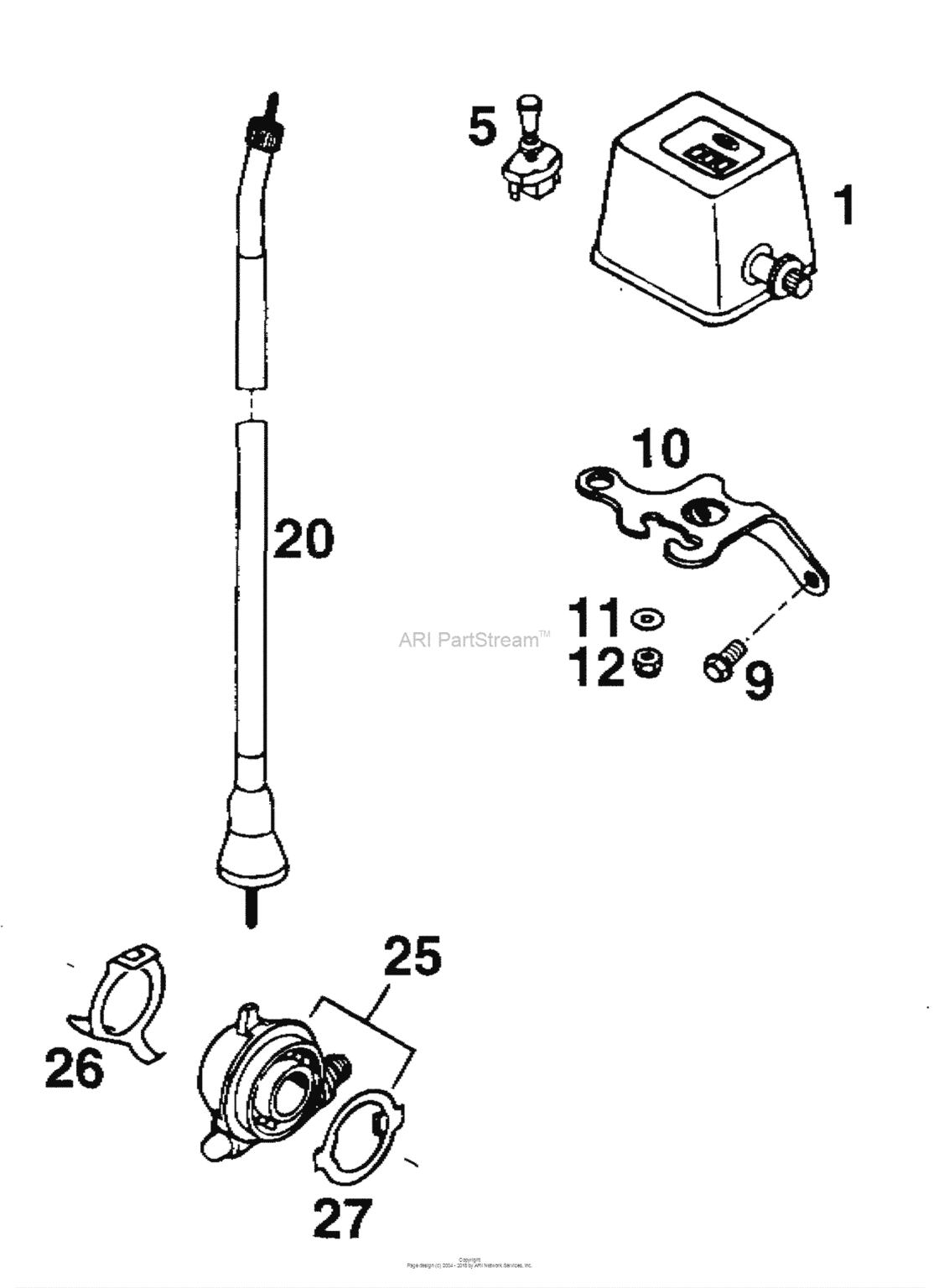

Odometer Diagram KTM 250 250 EGS
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 EGS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58011180000 Odometer93 |
58011180000 |
US $113.95 |
||
|
5
|
5
55011599000 Pull switch loose93 |
55011599000 |
US $19.47 |
||
|
9
|
9
0015060123
Hh Collar Screw M 6X12 Ws=8
SW=8 |
0015060123 |
— | ||
| replacement | |||||
|
9
|
9
0025060126 Hh collar screw m6x12 tx30SW=8 |
0025060126 |
US $3.96 |
||
|
10
|
10
54611120200 Speedometer Bracket Vdo/odo'952T '95 |
54611120200 |
US $8.52 |
||
|
11
|
11
0125040003
Washer din0125-a 4,0
2T '95 |
0125040003 |
— | ||
|
12
|
12
0985040003 Self locking nut din0985-m 42T '95 |
0985040003 |
US $0.20 |
||
|
20
|
20
56511188600
Speedom.cable m12/m12 945mm
2T '95 |
56511188600 |
— | ||
|
25
|
25
58111052100
Odometer Drive
92 |
58111052100 |
— | ||
|
26
|
26
58111052150
Bracket for speedometer drive
92 |
58111052150 |
— | ||
|
27
|
27
58111053100 Driving dog f.speedom.drive'9292 |
58111053100 |
US $6.83 |
||
