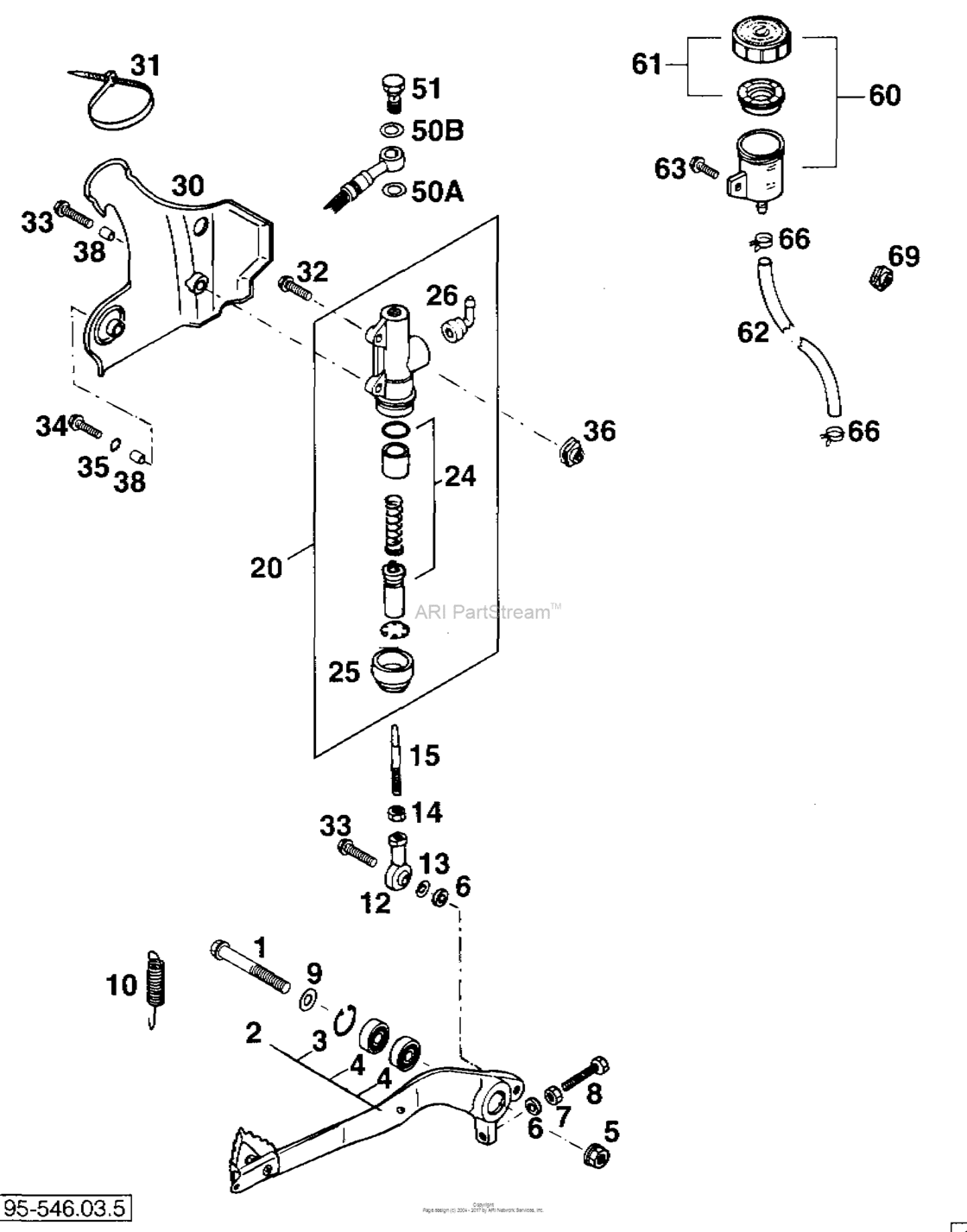

Rear Brake Control Diagram KTM 250 250 EGS
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 EGS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0015080603 Hh collar screw m 8x60 ws=10SW=19 |
0015080603 |
US $2.09 |
||
|
2
|
2
54603060144
Foot brake lever cpl. 250'91
250 '91 |
54603060144 |
— | ||
|
3
|
3
0472022150
Circlip din0472-22x1,5
250 '91 |
0472022150 |
— | ||
|
4
|
4
0625006087 Grooved Ball Bear. 608 2Rs C3250 '91 |
0625006087 |
US $19.19 |
||
|
5
|
5
54310086000
Self Locking Nut M8 10.9
250 '91 |
54310086000 |
— | ||
| replacement | |||||
|
5
|
5
54310086200 Self Locking Nut M8 10.9250 '91 |
54310086200 |
US $1.56 |
||
|
6
|
6
12011016000 Washer 6 x 12 x 3250 '91 |
12011016000 |
US $0.53 |
||
|
7
|
7
0934060003 Hexagon Nut Din0934-M 6250 '91 |
0934060003 |
US $0.43 |
||
|
8
|
8
0933060353 Hh screw din0933-m 6x35250 '91 |
0933060353 |
US $0.54 |
||
|
9
|
9
0125080003 Washer din0125-a 8,4250 '91 |
0125080003 |
US $0.31 |
||
|
10
|
10
54603062000
Return spring for brake lever
250 '91 |
54603062000 |
— | ||
| replacement | |||||
|
10
|
10
54603062100 Return Spring For Brake Lever250 '91 |
54603062100 |
US $7.14 |
||
|
12
|
12
54603069000 Swivel head m6 foot brake lev.250 '91 |
54603069000 |
US $37.83 |
||
|
13
|
13
0125060003 Washer Din0125-A 6,4250 '91 |
0125060003 |
US $0.37 |
||
|
14
|
14
0934060003 Hexagon Nut Din0934-M 6250 '91 |
0934060003 |
US $0.43 |
||
|
15
|
15
54603068000 Pressure rod alu 250 '9090 |
54603068000 |
US $5.22 |
||
|
20
|
20
54513101044 Main Brake Cylinder '8989 |
54513101044 |
US $118.37 |
||
|
24
|
24
54513150000 Repair kit piston 13mm89 |
54513150000 |
US $40.17 |
||
|
25
|
25
54513151000 Rubber sleeve89 |
54513151000 |
US $19.06 |
||
|
26
|
26
54513155000 Angle piece89 |
54513155000 |
US $15.90 |
||
|
30
|
30
54513038000 Brake cyl. protector "brembo"89 |
54513038000 |
US $6.09 |
||
|
31
|
31
44011076200 Cable tie 200/3,6mm black89 |
44011076200 |
US $0.39 |
||
|
32
|
32
0015060203
Hh Collar Screw M 6X20 Ws=8
SW=8 |
0015060203 |
— | ||
| replacement | |||||
|
32
|
32
0025060206 Hh collar screw m6x20 tx30SW=8 |
0025060206 |
US $1.97 |
||
|
33
|
33
0015060253
Hh Collar Screw M6X25 Tx30
SW=8 |
0015060253 |
— | ||
| replacement | |||||
|
33
|
33
0025060256 Hh collar screw m6x25 tx30SW=8 |
0025060256 |
US $2.45 |
||
|
34
|
34
0015050203
Hh Collar Screw M5X20 Tx30
SW=8 |
0015050203 |
— | ||
| replacement | |||||
|
34
|
34
0025050206 Hh collar screw m5x20 tx30SW=8 |
0025050206 |
US $1.33 |
||
|
35
|
35
50233041000 Pair of washers m 6 nordlockSW=8 |
50233041000 |
US $3.25 |
||
|
36
|
36
50235033300
Snap-nut holder m6 kp142
SW=8 |
50235033300 |
— | ||
| replacement | |||||
|
36
|
36
54603048100 Range Change Metal Nut M6SW=8 |
54603048100 |
US $3.93 |
||
|
38
|
38
58011039000 Spacer bushing 6,5 x 8 x 7SW=8 |
58011039000 |
US $1.79 |
||
|
50A
|
50A
42013026000 Cu-seal ring din7603-10x16x1,5SW=8 |
42013026000 |
US $1.60 |
||
|
50B
|
50B
42013226000 Cu-Seal Ring Din7603-10X16X1SW=8 |
42013226000 |
US $2.09 |
||
|
51
|
51
50213025000 Hollow Screw M10X1X19SW=8 |
50213025000 |
US $5.39 |
||
|
60
|
60
54513030044 Brake Fluid Reservoir '8989 |
54513030044 |
US $17.56 |
||
|
61
|
61
54513031044
Superseded By 54513030044
89 |
54513031044 |
— | ||
|
62
|
62
58007016101 Hose For Reservoir 6X1,589 |
58007016101 |
US $17.49 |
||
|
63
|
63
0015050163 Hh Collar Screw M 5X16 Ws=8SW=8 |
0015050163 |
US $1.31 |
||
|
66
|
66
58007017000 Ydnac clamp 10101 (9mm)SW=8 |
58007017000 |
US $1.84 |
||
|
69
|
69
50235033000 Snap-nut holder m5 kp142SW=8 |
50235033000 |
US $3.40 |
||
