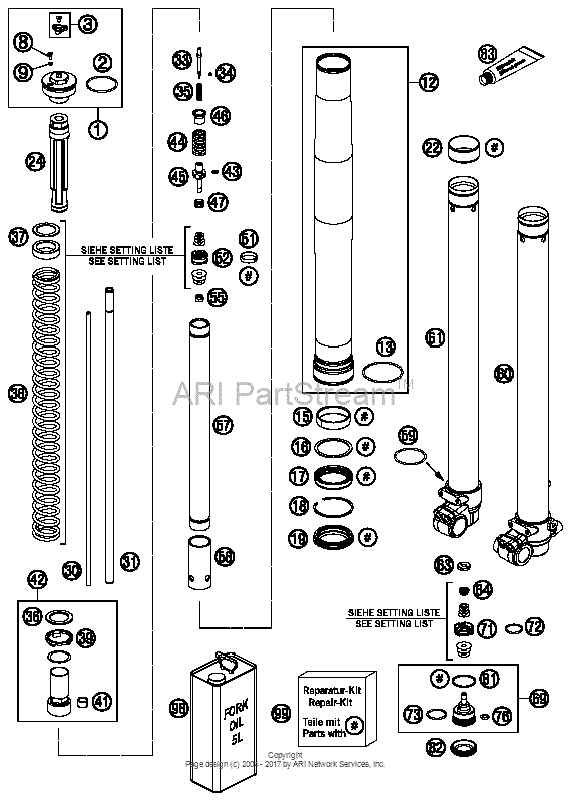

Front Fork Disassembled Diagram KTM 250 Freeride 250
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- Freeride 250
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
43570395S1 Screw Cap M46X1,5 CplAs Required |
43570395S1 |
US $60.79 |
||
2
|
2
46811042 O-Ring 40,00X2,00 WpAs Required |
46811042 |
US $2.89 |
||
3
|
3
48600812S Adjusting knob + screwAs Required |
48600812S |
US $3.49 |
||
8
|
8
48600481 Vent screw m4x8As Required |
48600481 |
US $2.33 |
||
9
|
9
48600046 O-ring nbr 3x1,5As Required |
48600046 |
US $2.47 |
||
12
|
12
43570614E Outer Tube L510 D49/53As Required |
43570614E |
US $314.04 |
||
13
|
13
43570099 Guiding ring d=53mmAs Required |
43570099 |
US $26.25 |
||
15
|
15
43570618 Guide Bushing 43X47X12As Required |
43570618 |
US $9.08 |
||
16
|
16
43570092 Support ring 45 x 52,5 x 1,5As Required |
43570092 |
US $16.83 |
||
17
|
17
43570201 Oil Seal Ring 43 X 52,9 X 9,5As Required |
43570201 |
US $26.45 |
||
replacement | |||||
17
|
17
43570623 Oil Seal Ring 43X52,9X11,4As Required |
43570623 |
US $26.45 |
||
18
|
18
43570008 Lock washer sb53As Required |
43570008 |
US $2.89 |
||
19
|
19
43570202 Dust Stripper 43 X 53,4 X 11,8As Required |
43570202 |
US $23.36 |
||
22
|
22
43570617 Guide Bushing 42X44X20 R11As Required |
43570617 |
US $13.91 |
||
24
|
24
43570396S1 Stop L135 D28,6 D12 CplAs Required |
43570396S1 |
US $59.02 |
||
30
|
30
48600695 Adjustment tube l=442 mmAs Required |
48600695 |
US $10.57 |
||
31
|
31
48600694 Piston rod d=12mm l=476mmAs Required |
48600694 |
US $109.70 |
||
33
|
33
48600277 Adjuster needle 07As Required |
48600277 |
US $9.33 |
||
34
|
34
48600298 O-ring 2x1,5 nbrAs Required |
48600298 |
US $4.28 |
||
35
|
35
48600444 Rebound spring c=4n/mmAs Required |
48600444 |
US $3.52 |
||
36
|
36
43570133 Spacer 26x38x2,5As Required |
43570133 |
US $57.70 |
||
37
|
37
43570133 Spacer 26x38x2,5As Required |
43570133 |
US $57.70 |
||
37
|
37
43570134 Spacer 26x38x5As Required |
43570134 |
US $48.94 |
||
37
|
37
43570135 Spacer 26x38x10As Required |
43570135 |
US $48.94 |
||
37
|
37
43570136 Spacer 26x38x1,5As Required |
43570136 |
US $48.94 |
||
38
|
38
95010049S Spring 4,4 N/mm SetAs Required |
95010049S |
US $217.69 |
||
38
|
38
95010050S Spring 4,6 N/mm SetAs Required |
95010050S |
US $248.52 |
||
38
|
38
95010054S Spring 4,8 N/mm SetAs Required |
95010054S |
US $217.69 |
||
39
|
39
43570131 Interm. ring 26,2x38,5x3As Required |
43570131 |
US $15.28 |
||
41
|
41
48600430 Du bush for piston rodAs Required |
48600430 |
US $5.53 |
||
42
|
42
48600830S2 Screw Sleeve M27X0,8 CplAs Required |
48600830S2 |
US $22.64 |
||
43
|
43
48600299 O-ring 6x1,2 nbrAs Required |
48600299 |
US $3.52 |
||
44
|
44
48600511 Rebound spring l=32 c=17As Required |
48600511 |
US $7.62 |
||
replacement | |||||
44
|
44
48600511S Rebound Spring L32 C17 CplAs Required |
48600511S |
US $4.01 |
||
45
|
45
48600513 Tap rebound 07As Required |
48600513 |
US $32.69 |
||
46
|
46
48600525 Guiding bush rebound springAs Required |
48600525 |
US $24.72 |
||
47
|
47
48600382 Shuttle valve spring c=0,4As Required |
48600382 |
US $2.67 |
||
51
|
51
48600455 Piston ring 5x1x68As Required |
48600455 |
US $13.80 |
||
52
|
52
48600575 Piston rebound sx 20072007 |
48600575 |
US $26.96 |
||
55
|
55
40540486 Nut m6x0,5 rebound2007 |
40540486 |
US $5.20 |
||
57
|
57
48600870 Tube 23 L=3302007 |
48600870 |
US $96.10 |
||
58
|
58
48600764 Adapter sleeve d23/d282007 |
48600764 |
US $17.12 |
||
59
|
59
43570023 O-ring nbr 41x22007 |
43570023 |
US $3.69 |
||
60
|
60
43570559S1 Axle Clamp L/s + Tube Cpl2007 |
43570559S1 |
US $392.73 |
||
61
|
61
43570558S1 Axle Clamp R/s + Tube Cpl2007 |
43570558S1 |
US $333.18 |
||
63
|
63
48600163 Check valve nut m6x0,5 d=22007 |
48600163 |
US $13.80 |
||
64
|
64
48600202 Spring check valve d=0,72007 |
48600202 |
US $2.28 |
||
69
|
69
48600586E Tap Compression Cpl2007 |
48600586E |
US $96.46 |
||
71
|
71
48600047 Piston compression d=27,92007 |
48600047 |
US $49.96 |
||
72
|
72
46811499 O-ring nbr 21x22007 |
46811499 |
US $1.48 |
||
73
|
73
35480320 O-ring nbr 24x22007 |
35480320 |
US $2.70 |
||
76
|
76
48600049 O-ring nbr 8x22007 |
48600049 |
US $3.67 |
||
81
|
81
48600004 Copper washer 29,5x33,5x12007 |
48600004 |
US $1.65 |
||
82
|
82
48600141 Rubber cap d=35mm2007 |
48600141 |
US $3.42 |
||
83
|
83
T511 Silicone grease f. dust stri2007 |
T511 |
US $132.91 |
||
98
|
98
48601166S1 Fork Oil Sae4 5L2007 |
48601166S1 |
US $218.08 |
||
99
|
99
R511 Repair-Kit2007 |
R511 |
US $165.27 |
