Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 52033096000 Lock ring din0471-25x1,64sd TX30	52033096000	US $4.17
2	2 50033029012 Front sprocket 12-t As Required	50033029012	US $33.59
2	2 50033029013 Sprocket 13T As Required	50033029013	—
	replacement
2	2 79233029013 Sprocket 13T As Required	79233029013	US $33.08
2	2 50033029014 Front sprocket 14-t As Required	50033029014	—
	replacement
2	2 79233029014 Sprocket 14T As Required	79233029014	US $34.80
3	3 54833032011 Spacer sleeve drive end 2003 2003	54833032011	US $15.61
4	4 0770250020 O-ring 25,00x2,00 nbr 70 2003	0770250020	US $2.26
5	5 0760324571 Shaft seal ring 32x45x7 bslnbr 2003	0760324571	US $6.61
6	6 54833025000 Ball bearing tm-sc05c20c4 ntn 2003	54833025000	US $70.53
7	7 77733044000 Stop Disc 24X32X1,5 2003	77733044000	US $3.42
8	8 72533010000 Counter Shaft Cpl 2003	72533010000	US $113.66
9	9 0405242812 Neddle bear. k24x28x11,9 div. 2003	0405242812	US $6.12
10	10 77733112000 Idler Gear 2Nd G. T=30 2003	77733112000	US $74.99
11	11 77733043000 Stop Disc 23,4X31X1,5 2003	77733043000	US $2.28
12	12 0417024000 Circlip Ws24 2003	0417024000	US $0.95
13	13 77733115100 Sliding Gear 5.g.,z=23 2003	77733115100	US $97.39
14	14 0405222611 Needle bear.k 22x26x10 divided 2003	0405222611	US $12.41
15	15 77733114100 Idler Gear 4.g. Z=28 2003	77733114100	US $72.54
16	16 77733113100 Idler Gear 3.g. Z=24 2003	77733113100	US $73.88
18	18 72033016000 Sliding Gear 6Th Gear, 20T 2003	72033016000	US $102.39
19	19 54833080000 Stop Disc 20,2X30X1 2003	54833080000	US $2.35
20	20 0405202612 Needle bearing k 20x26x12 2003	0405202612	US $10.90
21	21 77733011000 Idler Gear 1St G. T=32 2003	77733011000	US $88.33
22	22 56033030000 Stop Disc 17,2X30X1 2003	56033030000	US $3.83
23	23 0625062035 Ball bearing 6203 jr2 c3 2003	0625062035	US $12.95
99	99 00050000940 Counter Shaft Rep.kit 2 Stroke As Required	00050000940	US $21.32

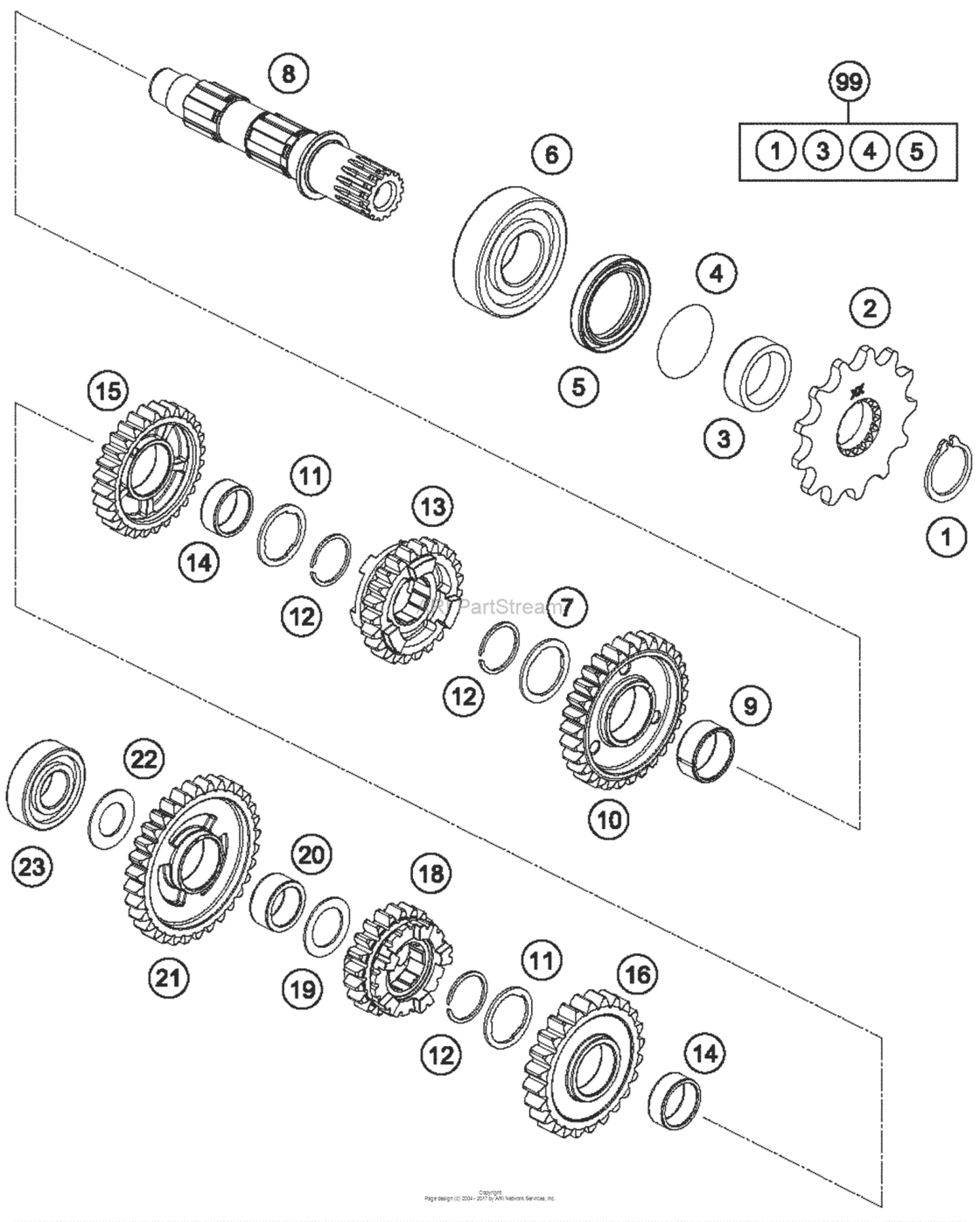

Transmission Ii - Countershaft Diagram KTM 250 Freeride 250 US/EU 18081900-939486

Transmission Ii - Countershaft Diagram KTM 250 Freeride 250 US/EU 18081900-939486
